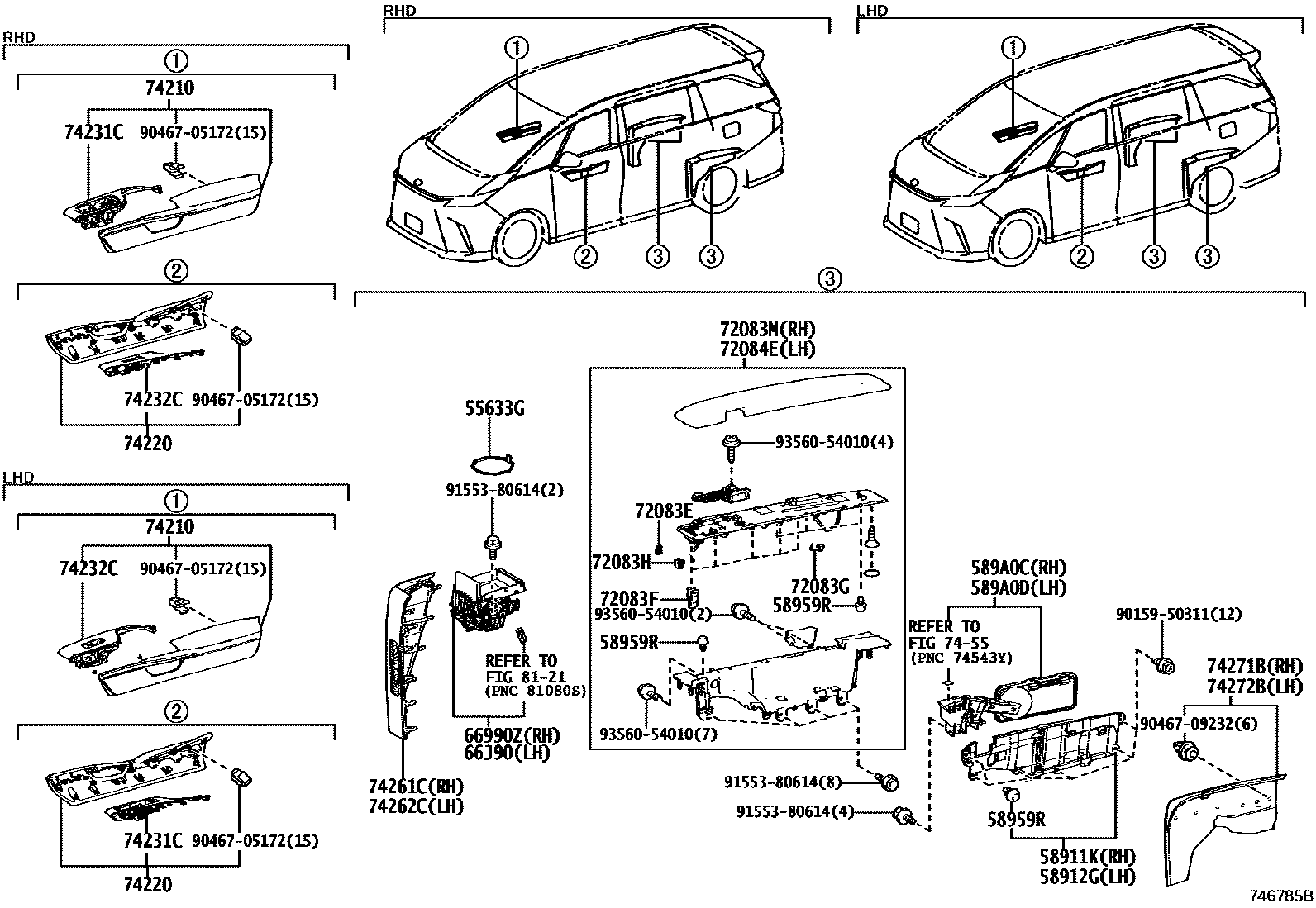

ARMREST & VISOR
55633GSUPPORT, CUP HOLDER, NO.1
58911KPANEL, BOX SIDE, NO.1
58912GPANEL, BOX SIDE, NO.2
58959RCUSHION, CONSOLE COMPARTMENT DOOR
589A0CTABLE ASSY, QUARTER CONSOLE, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
589A0DTABLE ASSY, QUARTER CONSOLE, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
66990ZHOLDER ASSY, CUP, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
66J90HOLDER ASSY, CUP, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
72083ECLAMP, WIRING HARNESS
72083FCLIP
72083GHOUSING, CONNECTOR MALE
72083HHOUSING, CONNECTOR FEMALE, NO.1
72083MPAD SUB-ASSY, QUARTER ARMREST, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
72084EPAD SUB-ASSY, QUARTER ARMREST, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLIGHT INTERIOR PACKAGE,FROMAGE,TRIM0#
BLIGHT INTERIOR PACKAGE,FROMAGE,TRIM0#
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLIGHT INTERIOR PACKAGE,FROMAGE,TRIM0#
BLIGHT INTERIOR PACKAGE,FROMAGE,TRIM0#
74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
74261CCOVER, QUARTER ARMREST, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
74262CCOVER, QUARTER ARMREST, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
74271BPANEL, QUARTER ARMREST BASE, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
74272BPANEL, QUARTER ARMREST BASE, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
7455
8121
9015950311
main90159-50311
9046705172
main90467-05172
9046709232
main90467-09232
9155380614
main91553-80614
9356054010
main93560-54010
29 parts on this diagram · 2 diagrams in section
