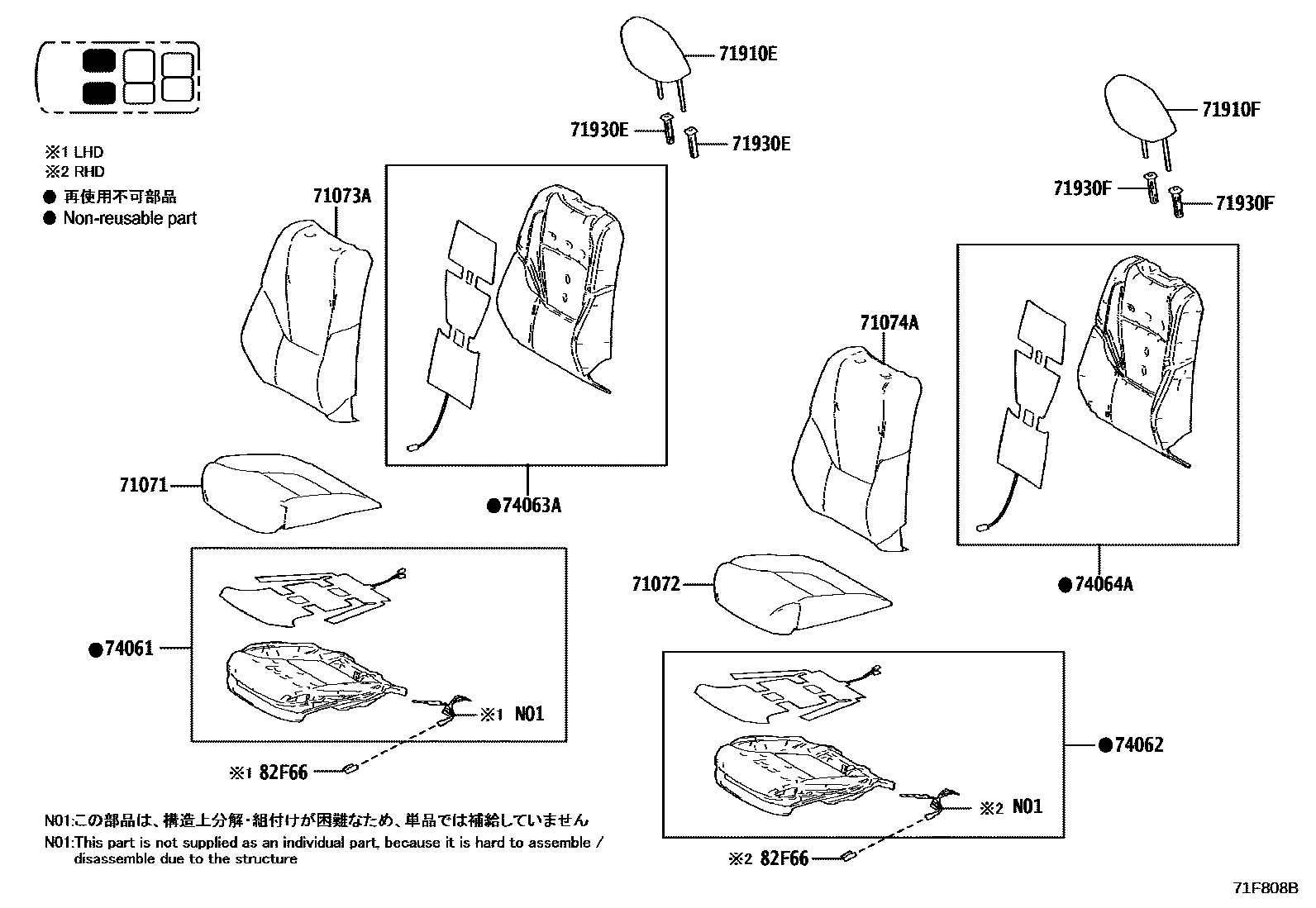

FRONT SEAT & SEAT TRACK

0001 1 0002 1RH 0003 1RH 0004 1RH 0005 1RH 0006 1LH 0007 1LH 0008 1LH 0009 1LH

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-V2080-A4iAAWH15,TAWH15..LHD202306

FROMAGE,TRIM0#

main71071-V2080-C4iAAWH15,TAWH15..LHD202306

BLACK,TRIM2#

main71071-V2090-A4iAAWH1#,TAWH15..RHD202306

FROMAGE,TRIM0#

main71071-V2090-C4iAAWH1#,TAWH15..RHD202306

BLACK,TRIM2#

71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH

main71072-V2080-A4iAAWH1#,TAWH15..RHD202306

FROMAGE,TRIM0#

main71072-V2080-C4iAAWH1#,TAWH15..RHD202306

BLACK,TRIM2#

main71072-V2090-A4iAAWH15,TAWH15..LHD202306

FROMAGE,TRIM0#

main71072-V2090-C4iAAWH15,TAWH15..LHD202306

BLACK,TRIM2#

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-V2090-C1iAAWH1#,TAWH15..X202306

BLACK,TRIM2#

main71073-V2100-C1iAAWH1#,TAWH15..RHD..V202306

BLACK,TRIM2#

main71073-V2110-C1iAAWH15,TAWH15..LHD..V202306

BLACK,TRIM2#

71074ACOVER SUB-ASSY, FRONT SEATBACK, LH

main71074-V2110-C1iAAWH1#,TAWH15..X202306

BLACK,TRIM2#

main71074-V2120-C1iAAWH15,TAWH15..LHD..V202306

BLACK,TRIM2#

main71074-V2130-C1iAAWH1#,TAWH15..RHD..V202306

BLACK,TRIM2#

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-V2080-A1iAAWH1#,TAWH15..X..(ARL,EUR,GEN,KRE,PHL,RUS,TWN)202306

FROMAGE,TRIM0#

main71910-V2080-C1iAAWH1#,TAWH15..X..(ARL,EUR,GEN,KRE,PHL,RUS,TWN)202306

BLACK,TRIM2#

main71910-V2090-A1iAAWH1#,TAWH15..V..(ARL,EUR,GEN,KRE,PHL,RUS,TWN)202306

FROMAGE,TRIM0#

main71910-V2090-C1iAAWH1#,TAWH15..V..(ARL,EUR,GEN,KRE,PHL,RUS,TWN)202306

BLACK,TRIM2#

main71910-V2120-A0iAAWH15,TAWH15..V..CHI202306

FROMAGE,TRIM0#

main71910-V2120-C0iAAWH15,TAWH15..V..CHI202306

BLACK,TRIM2#

main71910-V2130-A0iTAWH15..X..CHI202311

FROMAGE,TRIM0#

main71910-V2130-C0iTAWH15..X..CHI202311

BLACK,TRIM2#

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-V2080-A1iAAWH1#,TAWH15..X..(ARL,EUR,GEN,KRE,PHL,RUS,TWN)202306

FROMAGE,TRIM0#

main71910-V2080-C1iAAWH1#,TAWH15..X..(ARL,EUR,GEN,KRE,PHL,RUS,TWN)202306

BLACK,TRIM2#

main71910-V2090-A1iAAWH15,TAWH15..LHD..V..(EUR,GEN,KRE,PHL,RUS,TWN)202306

FROMAGE,TRIM0#

main71910-V2090-C1iAAWH15,TAWH15..LHD..V..(EUR,GEN,KRE,PHL,RUS,TWN)202306

BLACK,TRIM2#

main71910-V2100-A1iAAWH1#,TAWH15..RHD..V202306

FROMAGE,TRIM0#

main71910-V2100-C1iAAWH1#,TAWH15..RHD..V202306

BLACK,TRIM2#

main71910-V2120-A0iAAWH15,TAWH15..V..CHI202306

FROMAGE,TRIM0#

main71910-V2120-C0iAAWH15,TAWH15..V..CHI202306

BLACK,TRIM2#

main71910-V2130-A0iTAWH15..X..CHI202311

FROMAGE,TRIM0#

main71910-V2130-C0iTAWH15..X..CHI202311

BLACK,TRIM2#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-28050-A0iAAWH1#,TAWH15202306

W(LOCK),FROMAGE,TRIM0#

main71930-28050-C0iAAWH1#,TAWH15202306

W(LOCK),BLACK,TRIM2#

main71931-28060-A0iAAWH1#,TAWH15202306

W/O(LOCK),FROMAGE,TRIM0#

main71931-28060-C0iAAWH1#,TAWH15202306

W/O(LOCK),BLACK,TRIM2#

71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH

main71930-28050-A0iAAWH1#..X;AAWH15..LHD..V;TAWH15..X..GEN;TAWH15..LHD..V..GEN;TAWH15..ARL,CHI,KRE,TWN202306

W(LOCK),FROMAGE,TRIM0#

main71930-28050-C0iAAWH1#..X;AAWH15..LHD..V;TAWH15..X..GEN;TAWH15..LHD..V..GEN;TAWH15..ARL,CHI,KRE,TWN202306

W(LOCK),BLACK,TRIM2#

main71930-62010-A1iAAWH1#,TAWH15..RHD..V202306

W(LOCK),FROMAGE,TRIM0#,NO.1:REFER ILLUST.

main71930-62010-C0iAAWH1#,TAWH15..RHD..V202306

W(LOCK),BLACK,TRIM2#,NO.1:REFER ILLUST.

main71930-62020-A1iAAWH1#,TAWH15..RHD..V202306

W(LOCK),FROMAGE,TRIM0#,NO.2:REFER ILLUST.

main71930-62020-C0iAAWH1#,TAWH15..RHD..V202306

W(LOCK),BLACK,TRIM2#,NO.2:REFER ILLUST.

main71931-28060-A0iAAWH1#..X;AAWH15..LHD..V;TAWH15..X..GEN;TAWH15..LHD..V..GEN;TAWH15..ARL,CHI,KRE,TWN202306

W/O(LOCK),FROMAGE,TRIM0#

main71931-28060-C0iAAWH1#..X;AAWH15..LHD..V;TAWH15..X..GEN;TAWH15..LHD..V..GEN;TAWH15..ARL,CHI,KRE,TWN202306

W/O(LOCK),BLACK,TRIM2#

74061BAG SUB-ASSY, SEAT CUSHION PAD, RH

main74061-V2130iAAWH1#,TAWH15..RHD¥17,000202306

main74061-V2140iAAWH15,TAWH15..LHD..V202306

main74061-V2150iAAWH15,TAWH15..LHD..X202306

74062BAG SUB-ASSY, SEAT CUSHION PAD, LH

main74062-V2130iAAWH1#,TAWH15..RHD..X¥22,300202306

main74062-V2140iAAWH1#,TAWH15..RHD..V¥22,300202306

main74062-V2150iAAWH15,TAWH15..LHD202306

74063ABAG SUB-ASSY, SEATBACK PAD, RH

main74063-V2120iAAWH1#,TAWH15..RHD..V¥18,100202306

main74063-V2140iAAWH15,TAWH15..LHD..V202306

main74063-V2200iAAWH1#,TAWH15..X¥18,100202306

74064ABAG SUB-ASSY, SEATBACK PAD, LH

main74064-V2130iAAWH1#,TAWH15..RHD..V¥18,100202306

main74064-V2140iAAWH15,TAWH15..LHD..V202306

main74064-V2210iAAWH1#,TAWH15..X¥18,100202306

82F66HOLDER, CONNECTOR

main82666-47630iAAWH1#,TAWH15¥170202306

13 parts on this diagram · 9 diagrams in section
