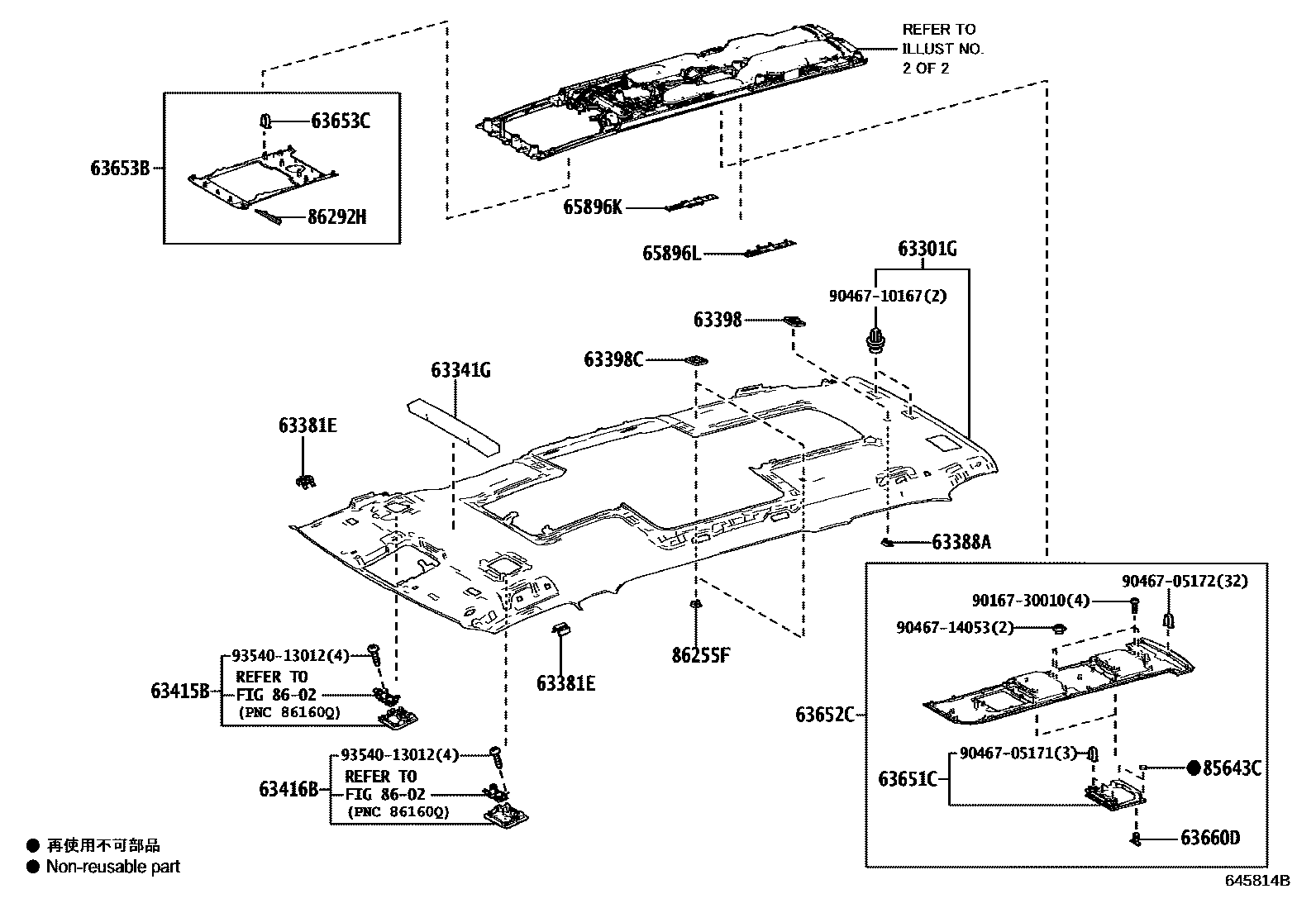

ROOF HEADLINING & SILENCER PAD
63301GHEADLINING SUB-ASSY, ROOF, FRONT
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
63341GPAD, ROOF SILENCER
63381ERETAINER, ROOF HEADLINING TRIM, FRONT
63388ACOVER, ROOF HEADLINING HOLDER
FROMAGE,TRIM0#
BLACK,TRIM2#
63398PLATE, ROOF HEADLINING SUPPORT
63398CPLATE, ROOF HEADLINING SUPPORT, NO.2
63415BGRILLE, ROOF SPEAKER, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
63416BGRILLE, ROOF SPEAKER, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
63651CBOX, ROOF CONSOLE
63652CCOVER, ROOF CONSOLE BOX
LEXUS SATIN CHROME,TRIM2#
COPPER,TRIM0#
LEXUS SATIN CHROME,TRIM2#
COPPER,TRIM0#
63653BCOVER, ROOF CONSOLE BOX, FRONT
63653CCLIP (FOR ROOF CONSOLE BOX COVER)
63660DLOCK ASSY, ROOF CONSOLE
65896KCAP, COVER TOP SET BOLT, RH
65896LCAP, COVER TOP SET BOLT, LH
85643CCUSHION, STOPPER
8602
86255FCASE, MICROPHONE
FROMAGE,TRIM0#
BLACK,TRIM2#
86292HCOVER, TELEVISION SET
9016730010
main90167-30010
9046705171
main90467-05171
9046705172
main90467-05172
9046710167
main90467-10167
9046714053
main90467-14053
9354013012
main93540-13012
25 parts on this diagram · 5 diagrams in section
