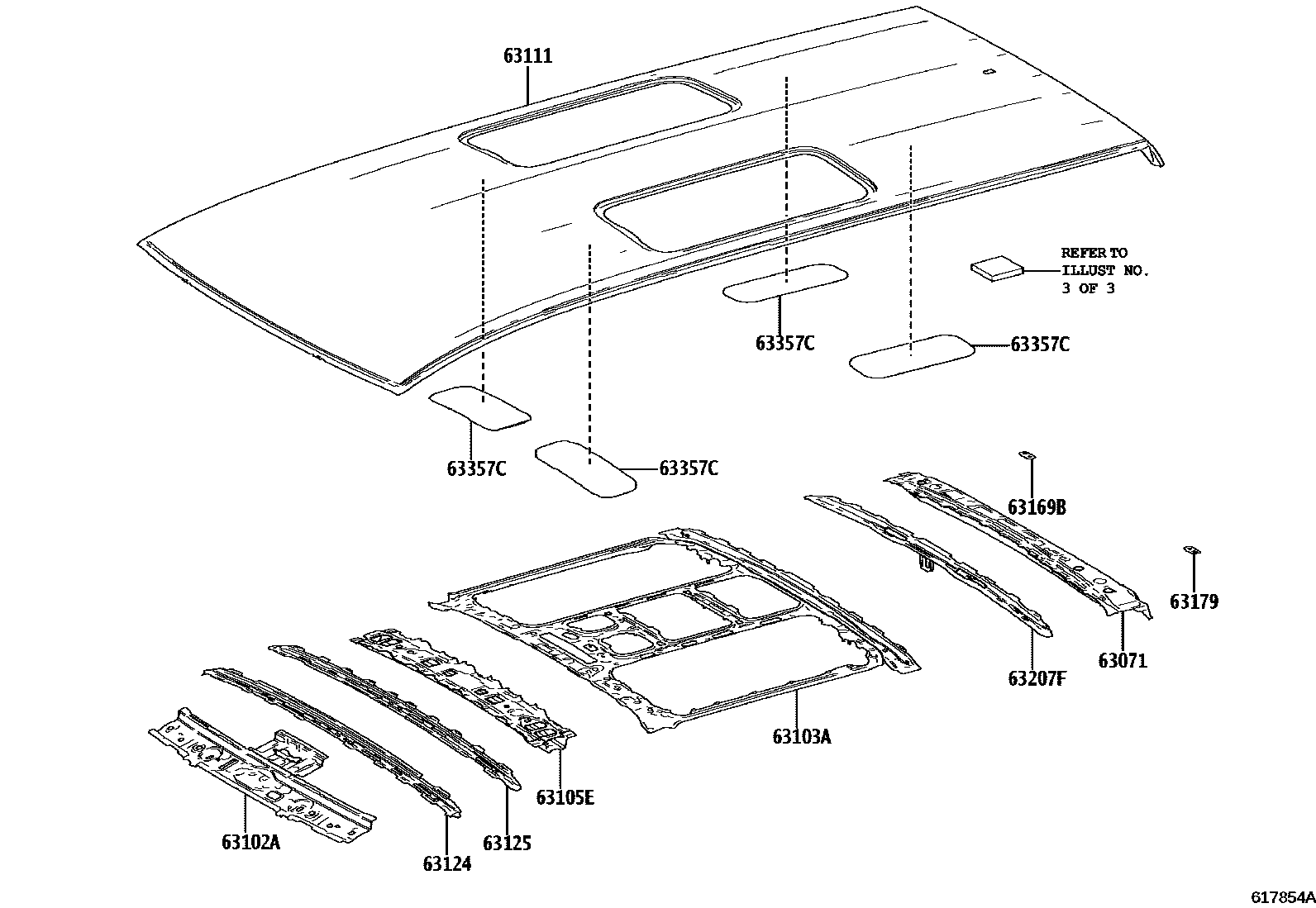

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1HIGH DECREMENT MASTIC SEAL

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-V2010iAAWH1#,TAWH15202306

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-V2020iAAWH1#,TAWH15202306

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-V2010iAAWH1#,TAWH15202306

63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63105-V2010iAAWH1#,TAWH15202306

63111PANEL, ROOF

main63111-V2020iAAWH1#,TAWH15202306

63124REINFORCEMENT, ROOF PANEL, NO.1

main63123-V2010iAAWH1#,TAWH15202306

63125REINFORCEMENT, ROOF PANEL, NO.2

main63124-V2010iAAWH1#,TAWH15202306

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iAAWH1#,TAWH15202306

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iAAWH1#,TAWH15202306

63207FREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7

main63207-V2010iAAWH1#,TAWH15202306

63357CSILENCER, ROOF

main63357-V2010iAAWH1#,TAWH15202306

11 parts on this diagram · 3 diagrams in section
