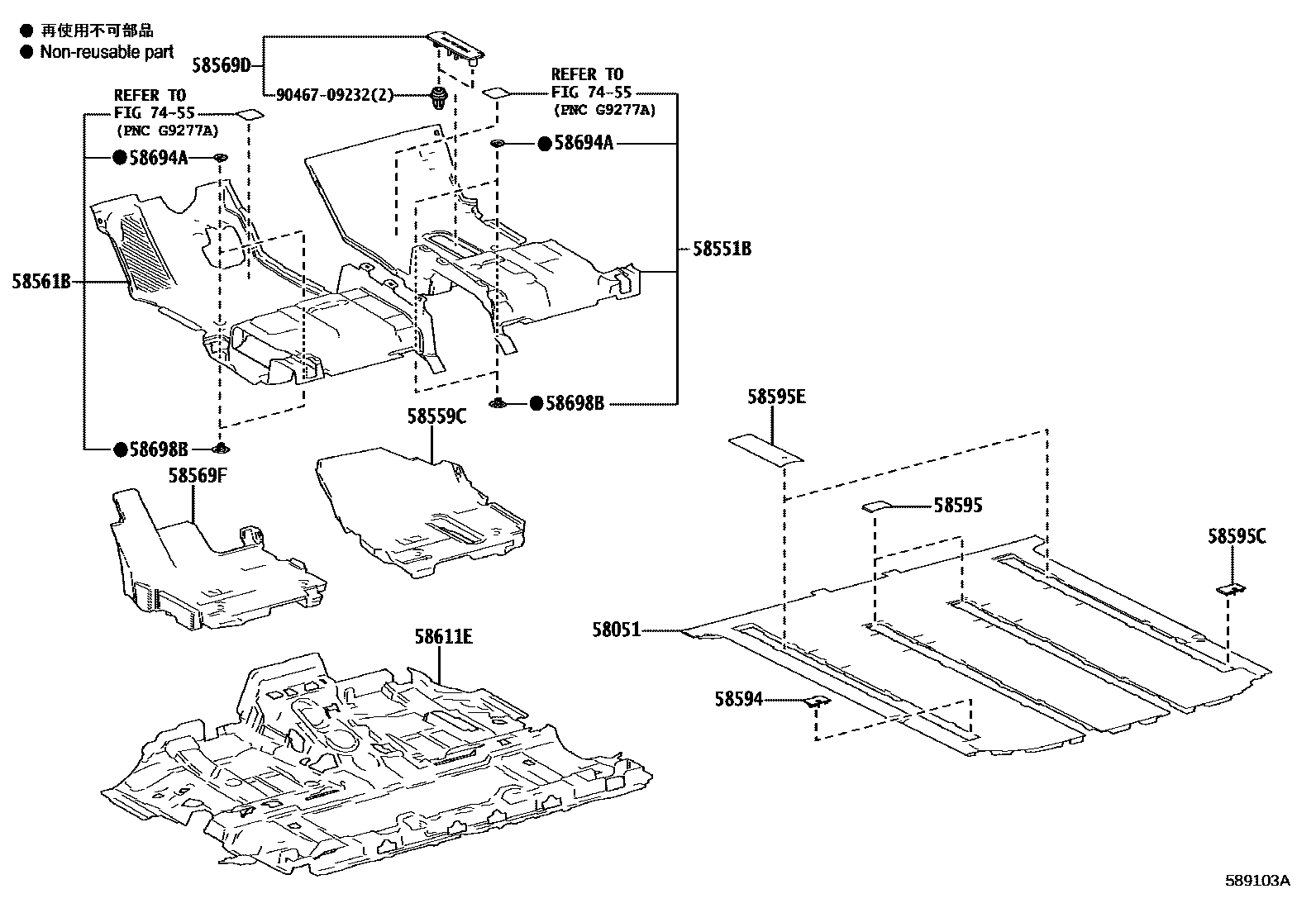

FLOOR MAT & SILENCER PAD
58051MAT SET, FLOOR
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58551BCARPET, FRONT FLOOR SIDE, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58559CPAD, FRONT FLOOR SIDE, RH
58561BCARPET, FRONT FLOOR SIDE, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,2#
58569FPAD, FRONT FLOOR SIDE, LH
58594MOULDING, FLOOR CARPET, NO.2
BLACK,TRIM0#,2#
58595MOULDING, FLOOR CARPET, NO.3
BLACK,TRIM0#,2#
58595CMOULDING, FLOOR CARPET, NO.1
BLACK,TRIM0#,2#
58595EMOULDING, FLOOR CARPET, NO.4
BLACK,TRIM0#,2#
58611ESHEET, FRONT FLOOR SILENCER
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
7455
9046709232
main90467-09232
15 parts on this diagram · 4 diagrams in section
