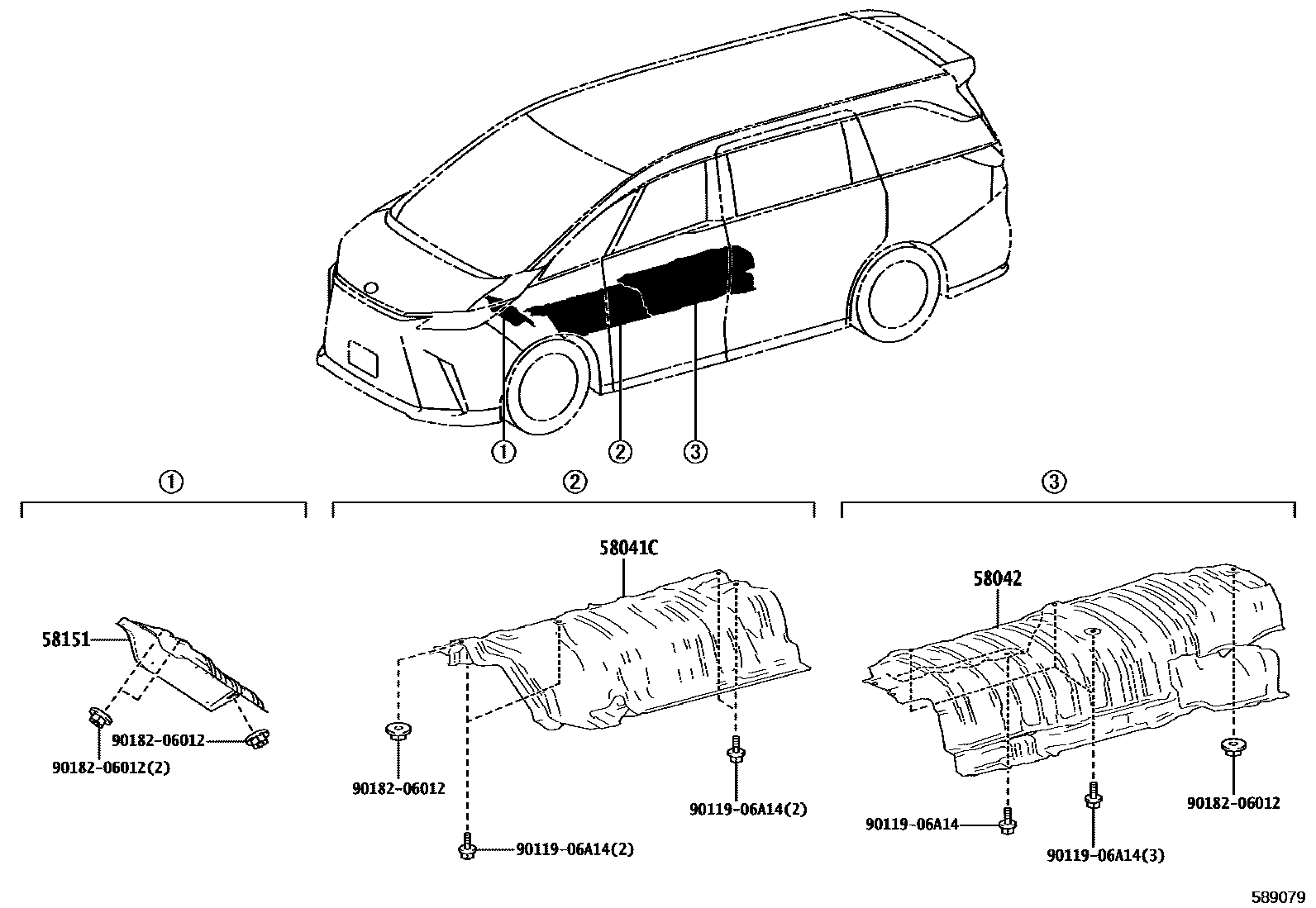

FLOOR INSULATOR

0001 1 0002 1

58041CINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-V2030iAAWH1#,TAWH15202306

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-V2020iAAWH1#,TAWH15202306

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-V2010iAAWH1#202306

main58151-V2020iTAWH15202311

9011906A14

main90119-06A14

9018206012

main90182-06012

5 parts on this diagram · 2 diagrams in section
