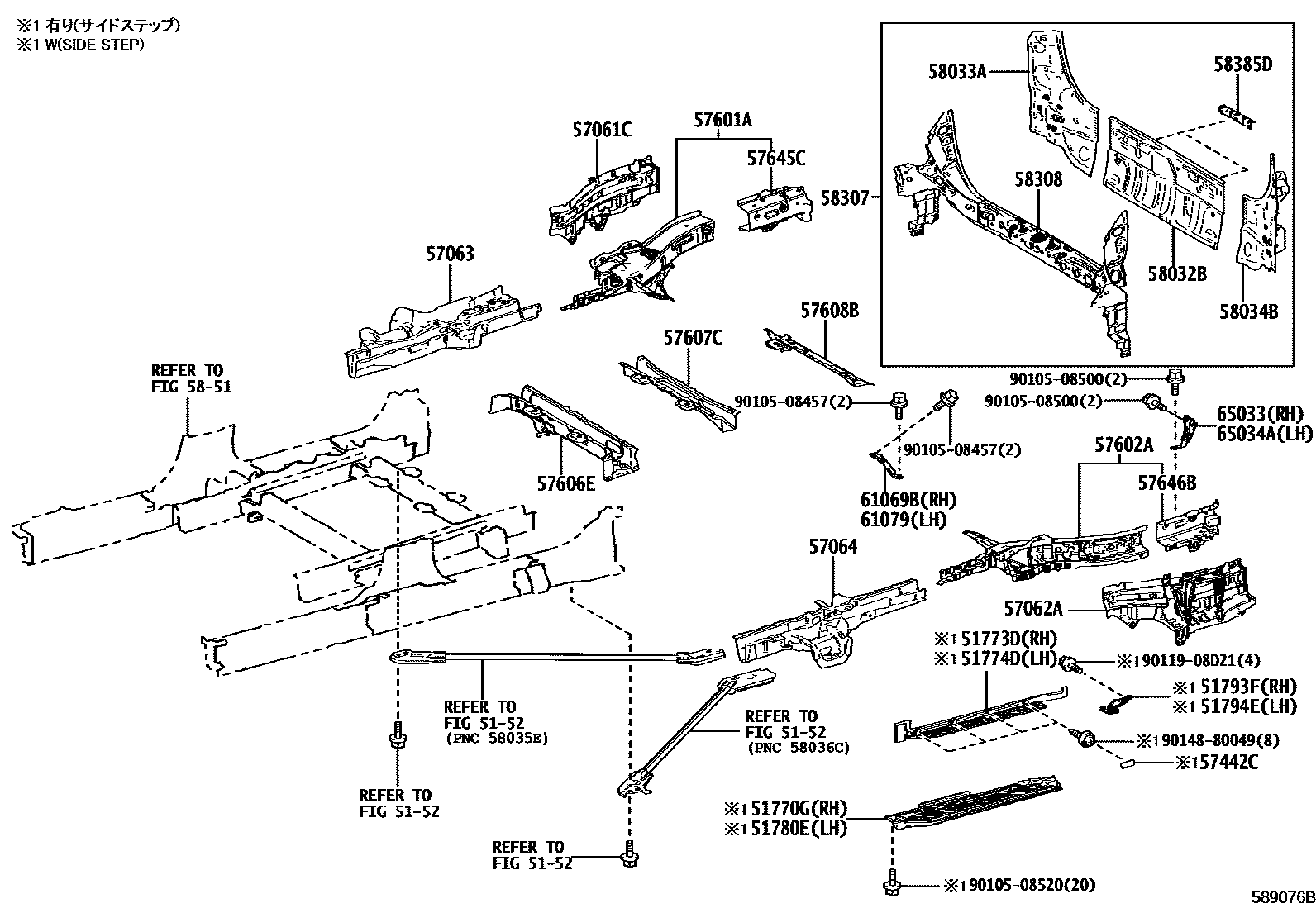

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1FLOOR MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR PANEL

5152

51770GSTEP ASSY, POWER LIFT, RH

main51770-V2020iAAWH15..TWN;TAWH15..RHD..GEN;TAWH15..ARL,KRE,TWN;AAWH1#..RHD..(ARL,GEN)202306

STEP & STEP COVER-WITH

51773DCOVER, STEP PLATE, RH

main51773-V2010iAAWH15..TWN;TAWH15..RHD..GEN;TAWH15..ARL,KRE,TWN;AAWH1#..RHD..(ARL,GEN)202306

STEP & STEP COVER-WITH

51774DCOVER, STEP PLATE, LH

main51774-V2010iAAWH15..TWN;TAWH15..RHD..GEN;TAWH15..ARL,KRE,TWN;AAWH1#..RHD..(ARL,GEN)202306

STEP & STEP COVER-WITH

51780ESTEP ASSY, POWER LIFT, LH

main51780-V2020iAAWH15..TWN;TAWH15..RHD..GEN;TAWH15..ARL,KRE,TWN;AAWH1#..RHD..(ARL,GEN)202306

STEP & STEP COVER-WITH

51793FBRACKET, SIDE STEP, NO.1 RH

main51793-V2020iAAWH15..TWN;TAWH15..RHD..GEN;TAWH15..ARL,KRE,TWN;AAWH1#..RHD..(ARL,GEN)202306

STEP & STEP COVER-WITH

51794EBRACKET, SIDE STEP, NO.1 LH

main51794-V2020iAAWH15..TWN;TAWH15..RHD..GEN;TAWH15..ARL,KRE,TWN;AAWH1#..RHD..(ARL,GEN)202306

STEP & STEP COVER-WITH

57061CMEMBER SUB-ASSY, UNDER REAR, RH

main57061-V2020iAAWH1#,TAWH15202306

57062AMEMBER SUB-ASSY, UNDER REAR, LH

main57062-V2030iAAWH1#,TAWH15202306

57063BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH

main57063-V2030iAAWH1#,TAWH15202306

57064BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR LH

main57064-V2020iAAWH1#,TAWH15202306

57442CPLUG, STEP PANEL HOLE

main57442-V2010iAAWH15..TWN;TAWH15..RHD..GEN;TAWH15..ARL,KRE,TWN;AAWH1#..RHD..(ARL,GEN)202306

STEP & STEP COVER-WITH

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-V2030iAAWH1#,TAWH15202306-202403

main57601-V2031iAAWH1#,TAWH15202404

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-V2030iAAWH1#,TAWH15202306

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-V2020iAAWH1#202306

main57606-V2070iTAWH15202311

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-V2010iAAWH10202306

main57607-V2030iAAWH15202306

main57607-V2070iTAWH15202311

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-V2020iAAWH1#,TAWH15202306

57645CREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 RH

main57645-V2030iAAWH1#,TAWH15202306-202403

main57645-V2031iAAWH1#,TAWH15202404

57646BREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 LH

main57646-V2020iAAWH1#,TAWH15202306

58032BPANEL SUB-ASSY, REAR FLOOR, CENTER

main58032-V2010iAAWH1#,TAWH15202306

58033AREINFORCE SUB-ASSY, BODY LOWER BACK, RH

main58033-V2020iAAWH1#,TAWH15202306

58034BREINFORCE SUB-ASSY, BODY LOWER BACK, LH

main58034-V2020iAAWH1#,TAWH15202306

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-V2050iAAWH1#,TAWH15202306

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-V2020iAAWH1#,TAWH15202306

58385DBRACKET, REAR BUMPER COVER

main58385-42030iAAWH1#,TAWH15202306

5851

61069BBRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 RH

main61069-V2010iAAWH1#,TAWH15202306

61079BRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 LH

main61079-V2010iAAWH1#,TAWH15202306

65033BRACE SUB-ASSY, FLOOR FRONT CORNER, RH

main65033-V2010iAAWH1#,TAWH15202306

65034ABRACE SUB-ASSY, FLOOR FRONT CORNER, LH

main65034-V2010iAAWH1#,TAWH15202306

9010508457

main90105-08457

9010508500

main90105-08500

9010508520

main90105-08520

9011908D21

main90119-08D21

9014880049

main90148-80049

35 parts on this diagram · 3 diagrams in section
