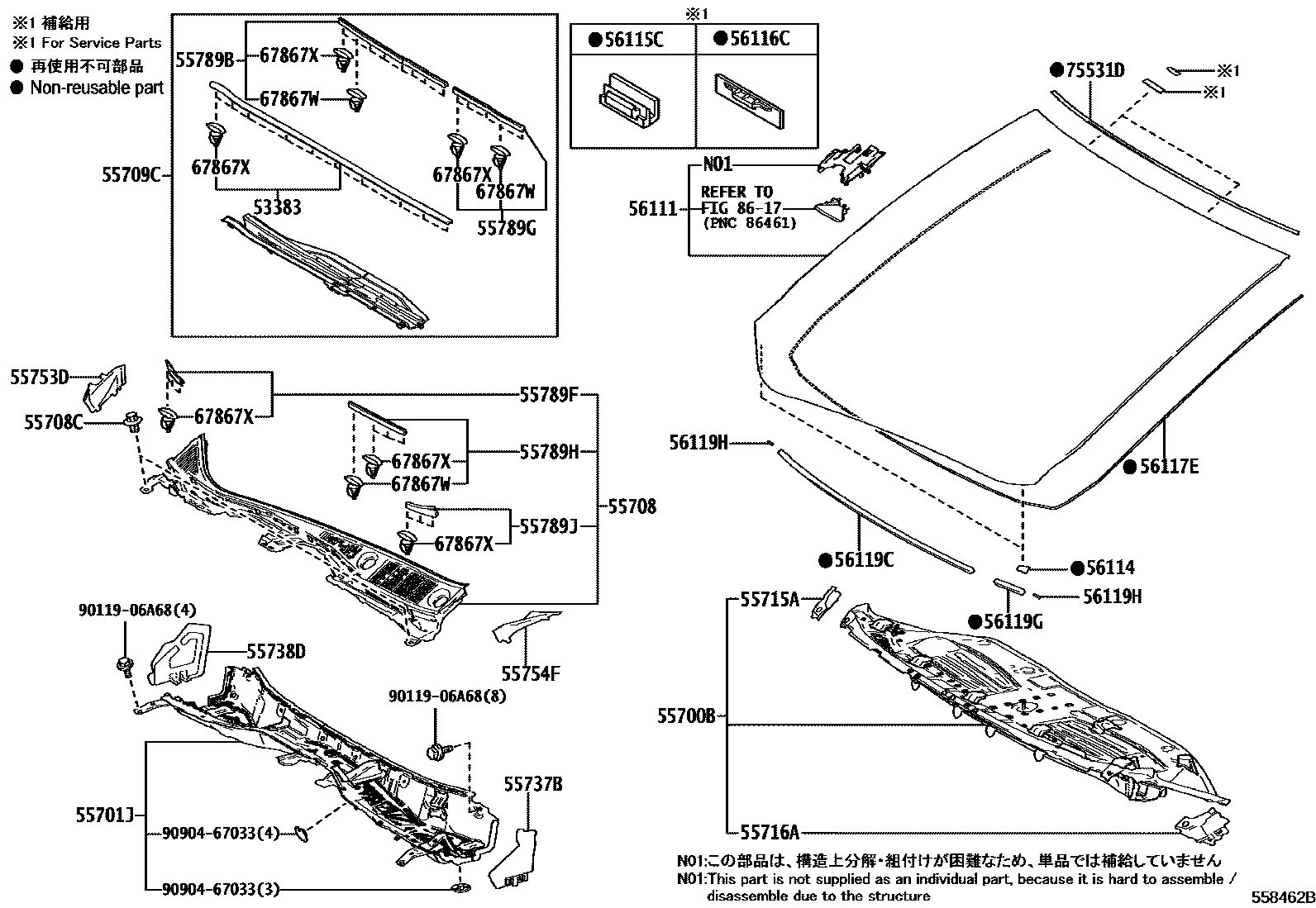

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383SEAL, HOOD TO COWL TOP

main53383-V2010iAAWH1#,TAWH15¥980202306

55700BCOWL ASSY

main55700-V2010iAAWH1#..RHD¥22,800202306-202311

main55700-V2020iAAWH15,TAWH15..LHD..X202306-202508

main55700-V2050iAAWH1#,TAWH15..RHD..V¥28,600202311-202508

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-V2010iAAWH1#,TAWH15..RHD¥14,100202306

main55701-V2020iAAWH15,TAWH15..LHD202306

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-V2050iAAWH1#,TAWH15..RHD..(ARL,GEN)¥9,100202306-202508

main55708-V2060iAAWH1#..RHD..EUR¥10,100202306

main55708-V2070iAAWH15,TAWH15..LHD..(GEN,PHL,TWN)202306-202508

main55708-V2080iAAWH15,TAWH15..LHD..(CHI,EUR,KRE,RUS)202306

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iAAWH1#,TAWH15¥120202306

55709CCOVER SUB-ASSY, COWL SIDE VENTILATOR, LH

main55709-V2010iAAWH1#,TAWH15¥5,100202306

55715ABRACE, COWL TOP TO APRON, RH

main55715-V2010iAAWH1#,TAWH15¥780202306

55716ABRACE, COWL TOP TO APRON, LH

main55716-V2010iAAWH1#,TAWH15¥780202306

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55738-V2010iAAWH1#,TAWH15..RHD¥650202306

main55738-V2030iAAWH15,TAWH15..LHD202306

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-V2020iAAWH1#,TAWH15..RHD¥710202306

main55738-V2040iAAWH15,TAWH15..LHD202306

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-V2030iAAWH1#,TAWH15..RHD¥620202306

main55753-V2040iAAWH15,TAWH15..LHD202306

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-V2030iAAWH1#,TAWH15..RHD¥620202306

main55754-V2040iAAWH15,TAWH15..LHD202306

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-V2080iAAWH1#,TAWH15¥780202306

55789FPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.1

main55789-V2150iAAWH1#,TAWH15¥610202306

55789GPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.3

main55789-V2130iAAWH1#,TAWH15¥490202306

55789HPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.4

main55789-V2140iAAWH1#,TAWH15¥730202306

55789JPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.5

main55789-V2160iAAWH1#,TAWH15¥610202306

56111GLASS, WINDSHIELD

main56101-V2915iAAWH1#..RHD..GEN202306-202311

sub56101-V2935

sub56119-60090

main56101-V2917iAAWH15,TAWH15..LHD..V..(CHI,GEN,KRE,PHL,TWN)202306-202508

main56101-V2918iAAWH15..RUS202306-202312

sub56101-V2952

main56101-V2924iAAWH1#..RHD..(ARL,EUR)202306-202311

sub56101-V2940

sub56119-60090

main56101-V2925iAAWH15..LHD..EUR202306-202312

main56101-V2935iAAWH1#,TAWH15..RHD..V..GEN202311-202508

INDIA SPEC

main56101-V2935iAAWH1#,TAWH15..RHD..X..GEN202311

main56101-V2940iAAWH1#,TAWH15..RHD..(ARL,EUR)202311-202312

main56101-V2952iAAWH15..X..RUS202312-202508

main56101-V2956iAAWH1#..RHD..V..(ARL,EUR)202312-202508

main56101-V2957iAAWH15..LHD..X..EUR202312-202508

56114RETAINER, WINDSHIELD GLASS

main56114-30120iAAWH1#,TAWH15¥260202306

56115CSTOPPER, WINDSHIELD GLASS

main56115-30120iAAWH1#,TAWH15¥130202306

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAAWH1#,TAWH15¥120202306

56117EDAM, WINDOW GLASS ADHESIVE

main56117-50130iAAWH1#,TAWH15¥1,610202306

*D,L=3601

56119CSEAL, WINDSHIELD GLASS

main56119-V2010iAAWH1#..RHD¥1,340202306-202311

main56119-V2020iTAWH15;AAWH15..LHD¥1,130202306

56119GSEAL, WINDSHIELD GLASS, NO.2

main56119-V2030iTAWH15;AAWH15..LHD¥200202306

56119HSEAL, WINDSHIELD GLASS, NO.3

main56119-V2040iAAWH1#,TAWH15¥90202306

67867WRETAINER, COWL TOP VENTTINATOR LOUVER PROTECTOR, NO.1

main67867-12150iAAWH1#,TAWH15¥100202306

67867XRETAINER, COWL TOP VENTTINATOR LOUVER PROTECTOR, NO.2

main67867-48030iAAWH1#,TAWH15¥100202306

75531DMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-V2010iAAWH1#,TAWH15¥1,000202306

8617

9011906A68

main90119-06A68¥80

9090467033

main90904-67033¥80

31 parts on this diagram · 3 diagrams in section
