RADIATOR GRILLE
52030ACOVER ASSY, FRONT BUMPER HOLE, RH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
52040ACOVER ASSY, FRONT BUMPER HOLE, LH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING
52431BBRACKET, FRONT BUMPER GUARD, RH
52432BBRACKET, FRONT BUMPER GUARD, LH
52526ERETAINER, FRONT BUMPER, LOWER NO.1
52527CRETAINER, FRONT BUMPER, LOWER NO.2
52527DRETAINER, FRONT BUMPER, LOWER CENTER NO.2
53039SEAL, RADIATOR, UPPER
53101GRILLE SUB-ASSY, RADIATOR
NO PAINT REQ.
53101ACLIP, RADIATOR GRILLE
53105BGARNISH SUB-ASSY, RADIATOR GRILLE
SONIC QUARTZ,085
KAZAKHSTAN SPEC,SONIC QUARTZ,085
UKRAINE SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-GEORGIA SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-ARMENIA SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-BELARUS SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC,SONIC QUARTZ,085
SONIC TITANIUM,1J7
KAZAKHSTAN SPEC,SONIC TITANIUM,1J7
UKRAINE SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-GEORGIA SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-ARMENIA SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-BELARUS SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC,SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
KAZAKHSTAN SPEC,GRAPHITE BLACK GF.,223
UKRAINE SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-GEORGIA SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-ARMENIA SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-BELARUS SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC,GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
KAZAKHSTAN SPEC,SONIC AGATE,3U3
UKRAINE SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-GEORGIA SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-ARMENIA SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-BELARUS SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC,SONIC AGATE,3U3
SONIC QUARTZ,085
DENMARK SPEC,SONIC QUARTZ,085
NORWAY SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-SWEDEN SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-FINLAND SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-ESTONIA,LATVIA,LITHUANIA SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-ICELAND SPEC,SONIC QUARTZ,085
SONIC TITANIUM,1J7
DENMARK SPEC,SONIC TITANIUM,1J7
NORWAY SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-SWEDEN SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-FINLAND SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-ESTONIA,LATVIA,LITHUANIA SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-ICELAND SPEC,SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
DENMARK SPEC,GRAPHITE BLACK GF.,223
NORWAY SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-SWEDEN SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-FINLAND SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-ESTONIA,LATVIA,LITHUANIA SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-ICELAND SPEC,GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
DENMARK SPEC,SONIC AGATE,3U3
NORWAY SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-SWEDEN SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-FINLAND SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-ESTONIA,LATVIA,LITHUANIA SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-ICELAND SPEC,SONIC AGATE,3U3
53115BBRACKET, RADIATOR GRILLE
53117CRETAINER, RADIATOR GRILLE, NO.1
53118DRETAINER, RADIATOR GRILLE, NO.2
53119BPROTECTOR, RADIATOR GRILLE
53121BMOULDING, RADIATOR GRILLE, UPPER
ISRAEL SPEC
53123BMOULDING, RADIATOR GRILLE SIDE, RH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
53124BMOULDING, RADIATOR GRILLE SIDE, LH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
53145LCLIP, RADIATOR GRILLE
53149CPROTECTOR, RADIATOR GRILLE, NO.2
53155DSEAL, RADIATOR GRILLE, NO.1
SONIC QUARTZ,085
KAZAKHSTAN SPEC,SONIC QUARTZ,085
UKRAINE SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-GEORGIA SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-ARMENIA SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-BELARUS SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC,SONIC QUARTZ,085
SONIC TITANIUM,1J7
KAZAKHSTAN SPEC,SONIC TITANIUM,1J7
UKRAINE SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-GEORGIA SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-ARMENIA SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-BELARUS SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC,SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
KAZAKHSTAN SPEC,GRAPHITE BLACK GF.,223
UKRAINE SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-GEORGIA SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-ARMENIA SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-BELARUS SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC,GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
KAZAKHSTAN SPEC,SONIC AGATE,3U3
UKRAINE SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-GEORGIA SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-ARMENIA SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-BELARUS SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC,SONIC AGATE,3U3
SONIC QUARTZ,085
DENMARK SPEC,SONIC QUARTZ,085
NORWAY SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-SWEDEN SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-FINLAND SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-ESTONIA,LATVIA,LITHUANIA SPEC,SONIC QUARTZ,085
DESTINATION PACKAGE(ERP)-ICELAND SPEC,SONIC QUARTZ,085
SONIC TITANIUM,1J7
DENMARK SPEC,SONIC TITANIUM,1J7
NORWAY SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-SWEDEN SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-FINLAND SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-ESTONIA,LATVIA,LITHUANIA SPEC,SONIC TITANIUM,1J7
DESTINATION PACKAGE(ERP)-ICELAND SPEC,SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
DENMARK SPEC,GRAPHITE BLACK GF.,223
NORWAY SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-SWEDEN SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-FINLAND SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-ESTONIA,LATVIA,LITHUANIA SPEC,GRAPHITE BLACK GF.,223
DESTINATION PACKAGE(ERP)-ICELAND SPEC,GRAPHITE BLACK GF.,223
SONIC AGATE,3U3
DENMARK SPEC,SONIC AGATE,3U3
NORWAY SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-SWEDEN SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-FINLAND SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-ESTONIA,LATVIA,LITHUANIA SPEC,SONIC AGATE,3U3
DESTINATION PACKAGE(ERP)-ICELAND SPEC,SONIC AGATE,3U3
8408
8606
89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER
RH
LH
9010906388
main90109-06388
9016740057
main90167-40057
9016750063
main90167-50063
9017906127
main90179-06127
9017906362
main90179-06362
9046705172
main90467-05172
9046708229
main90467-08229

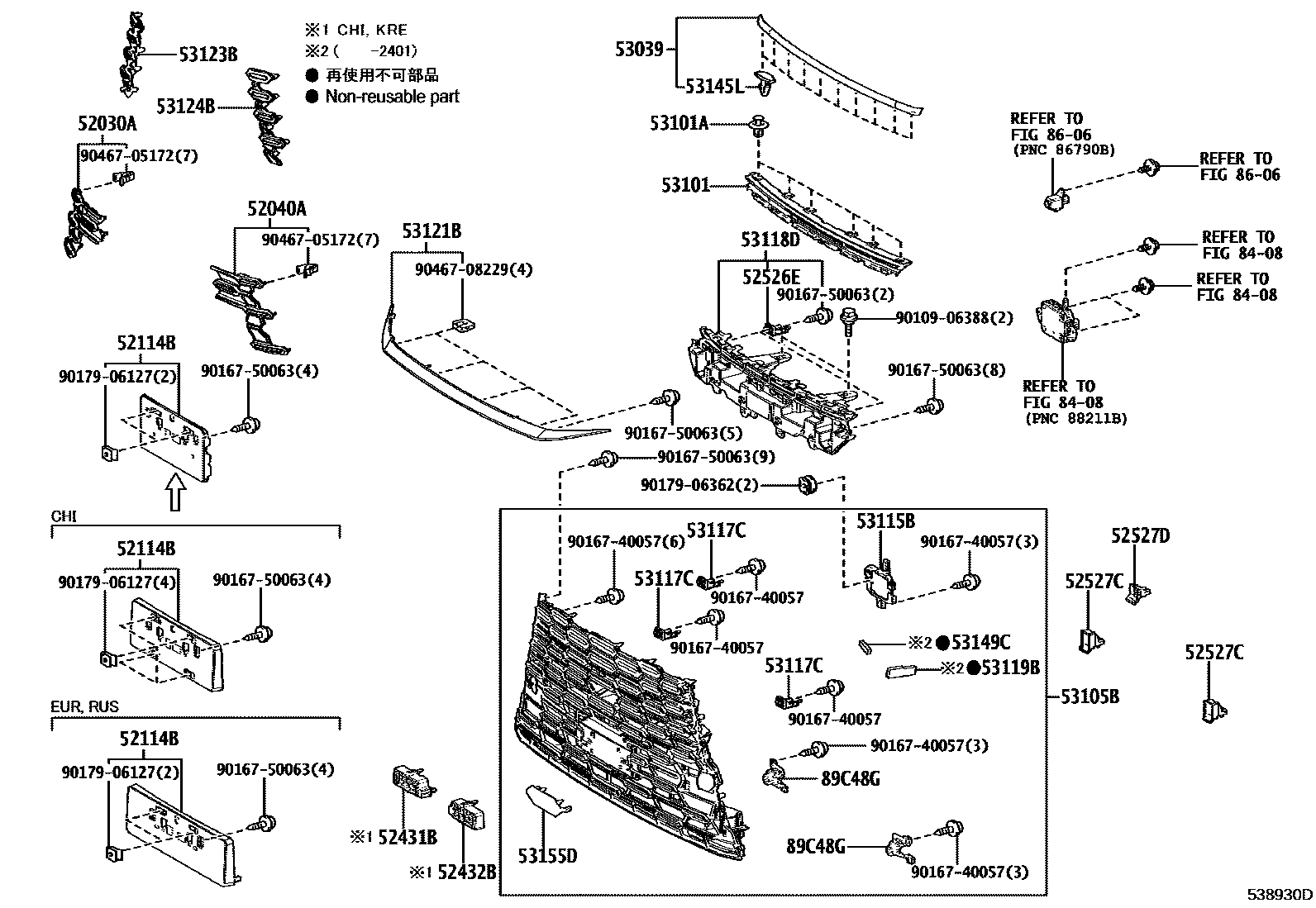

32 parts on this diagram · 1 diagram in section
