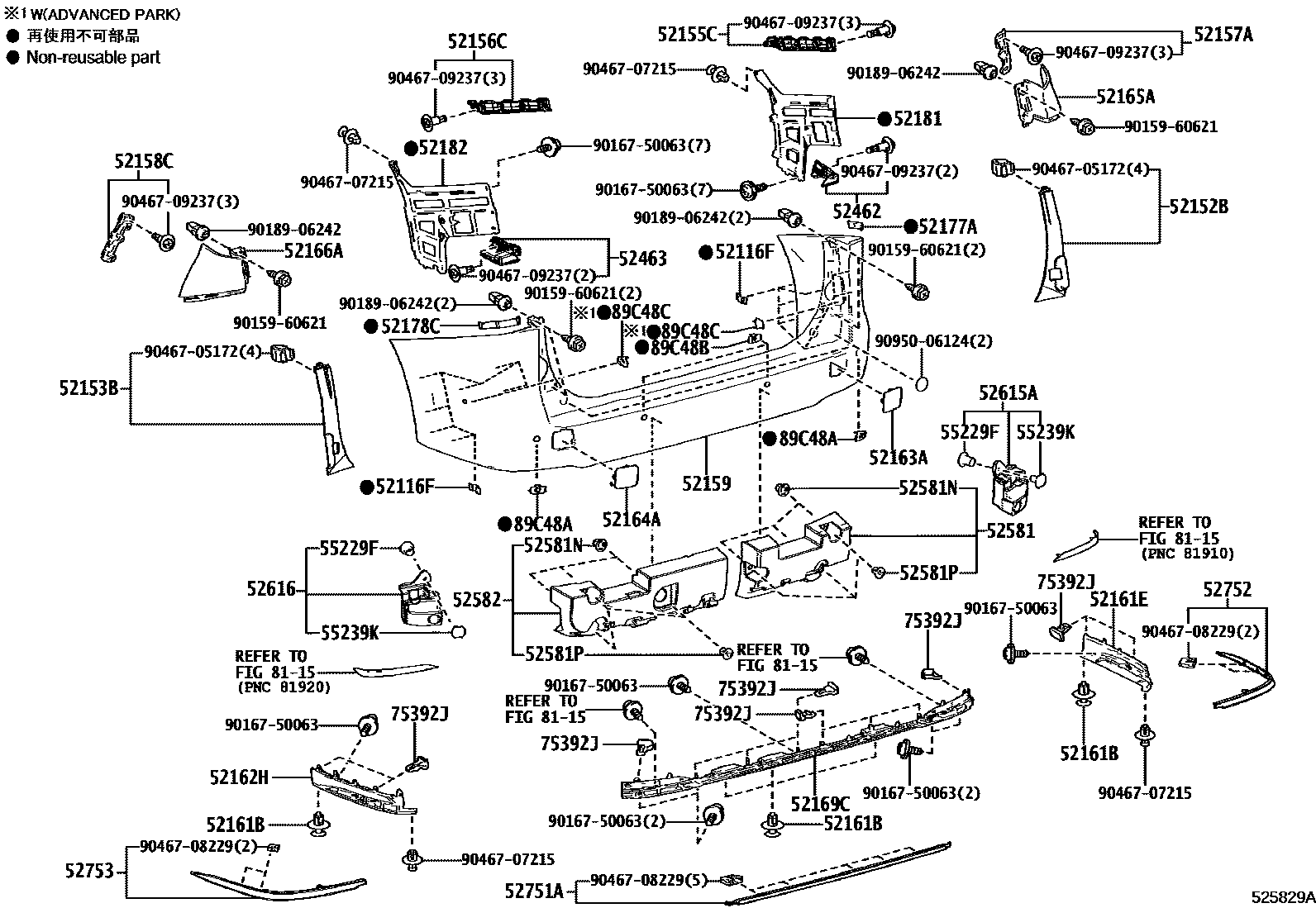

REAR BUMPER & BUMPER STAY

52116FRETAINER, REAR BUMPER

main52116-50040iAAWH1#,TAWH15202306

52152BEXTENSION, REAR BUMPER, RH

main52152-V2020iAAWH1#,TAWH15202306

52153BEXTENSION, REAR BUMPER, LH

main52153-V2020iAAWH1#,TAWH15202306

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-V2020iAAWH1#,TAWH15202306

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-V2020iAAWH1#,TAWH15202306

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-V2020iAAWH1#,TAWH15202306

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-V2020iAAWH1#,TAWH15202306

52159COVER, REAR BUMPER

main52159-V2919iAAWH10,TAWH15;AAWH15..RHD..GEN;AAWH15..ARL,CHI,EUR,PHL,RUS,TWN202306

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iAAWH1#,TAWH15202306

sub52161-0K040

52161EEXTENSION, REAR BUMPER SIDE, RH

main52161-V2900iAAWH1#,TAWH15202306

52162HEXTENSION, REAR BUMPER SIDE, LH

main52162-V2900iAAWH1#,TAWH15202306

52163APLATE, REAR BUMPER, RH

main52163-V2903iAAWH1#,TAWH15202306

52164APLATE, REAR BUMPER, LH

main52164-V2903iAAWH1#,TAWH15202306

52165ACOVER, REAR BUMPER, UPR RH

main52165-V2903iAAWH1#,TAWH15202306

PAINT REQ.

52166ACOVER, REAR BUMPER, UPR LH

main52166-V2903iAAWH1#,TAWH15202306

PAINT REQ.

52169CCOVER, REAR BUMPER, LOWER

main52169-V2900iAAWH1#,TAWH15202306

PAINT REQ.

52177ARETAINER, REAR BUMPER EXTENSION, RH

main52177-V2010iAAWH1#,TAWH15202306

52178CRETAINER, REAR BUMPER EXTENSION, LH

main52178-V2010iAAWH1#,TAWH15202306

52181ARM, REAR BUMPER, RH

main52181-V2010iAAWH1#,TAWH15202306

52182ARM, REAR BUMPER, LH

main52182-V2010iAAWH1#,TAWH15202306

52462PAD, REAR BUMPER, RH

main52462-V2020iAAWH1#,TAWH15202306

NO PAINT REQ.

52463PAD, REAR BUMPER, LH

main52463-V2020iAAWH1#,TAWH15202306

NO PAINT REQ.

52581PROTECTOR, REAR BUMPER, RH

main52581-V2020iAAWH1#,TAWH15202306

52581NCLIP, REAR BUMPER PROTECTOR, NO.1

main90467-17026-A0iAAWH1#,TAWH15202306

SUPER WHITE 2

52581PCLIP, REAR BUMPER PROTECTOR, NO.2

main90467-17027-C0iAAWH1#,TAWH15202306

BLACK

52582PROTECTOR, REAR BUMPER, LH

main52582-V2020iAAWH1#,TAWH15202306

52615AABSORBER, REAR BUMPER ENERGY, RH

main52615-V2020iAAWH1#,TAWH15202306

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-V2020iAAWH1#,TAWH15202306

52751AMOULDING, REAR BUMPER, CENTER

main52751-V2030iAAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,TWN202306

ISRAEL SPEC

main52751-V2040iAAWH1#..EUR,RUS202306

52752MOULDING, REAR BUMPER SIDE, RH

main52752-V2020iAAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,TWN202306

PLATED,ISRAEL SPEC

main52752-V2030iAAWH1#..EUR,RUS202306

PLATED

52753MOULDING, REAR BUMPER SIDE, LH

main52753-V2020iAAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,TWN202306

PLATED,ISRAEL SPEC

main52753-V2030iAAWH1#..EUR,RUS202306

PLATED

55229FPLATE, REAR BUMPER ENERGY ABSORBER

main55229-48010iAAWH1#,TAWH15202306

55239KPLATE, REAR BUMPER ENERGY ABSORBER

main55239-48020iAAWH1#,TAWH15202306

75392JRETAINER, OUTSIDE MOULDING

main75392-35220iAAWH1#,TAWH15202306

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-V2330-A0iAAWH1#,TAWH15202306

SONIC QUARTZ,085,RH

main89348-V2330-B0iAAWH1#,TAWH15202306

SONIC TITANIUM,1J7,RH

main89348-V2330-C0iAAWH1#,TAWH15202306

GRAPHITE BLACK GF.,223,RH

main89348-V2330-D0iAAWH1#,TAWH15202306

SONIC AGATE,3U3,RH

main89348-V2340-A0iAAWH1#,TAWH15202306

SONIC QUARTZ,085,LH

main89348-V2340-B0iAAWH1#,TAWH15202306

SONIC TITANIUM,1J7,LH

main89348-V2340-C0iAAWH1#,TAWH15202306

GRAPHITE BLACK GF.,223,LH

main89348-V2340-D0iAAWH1#,TAWH15202306

SONIC AGATE,3U3,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-48320-A3iAAWH1#,TAWH15202306

SONIC QUARTZ,085

sub89348-30490

main89348-48320-B9iAAWH1#,TAWH15202306

SONIC TITANIUM,1J7

sub89348-30490

main89348-48320-C8iAAWH1#,TAWH15202306

GRAPHITE BLACK GF.,223

sub89348-30490

main89348-48320-D3iAAWH1#,TAWH15202306

SONIC AGATE,3U3

sub89348-30490

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

main89348-48311iAAWH10,TAWH15;AAWH15..RHD..GEN;AAWH15..ARL,CHI,EUR,PHL,RUS,TWN202306

9015960621

main90159-60621

9016750063

main90167-50063

9018906242

main90189-06242

9046705172

main90467-05172

9046707215

main90467-07215

9046708229

main90467-08229

9046709237

main90467-09237

9095006124

main90950-06124

46 parts on this diagram · 1 diagram in section
