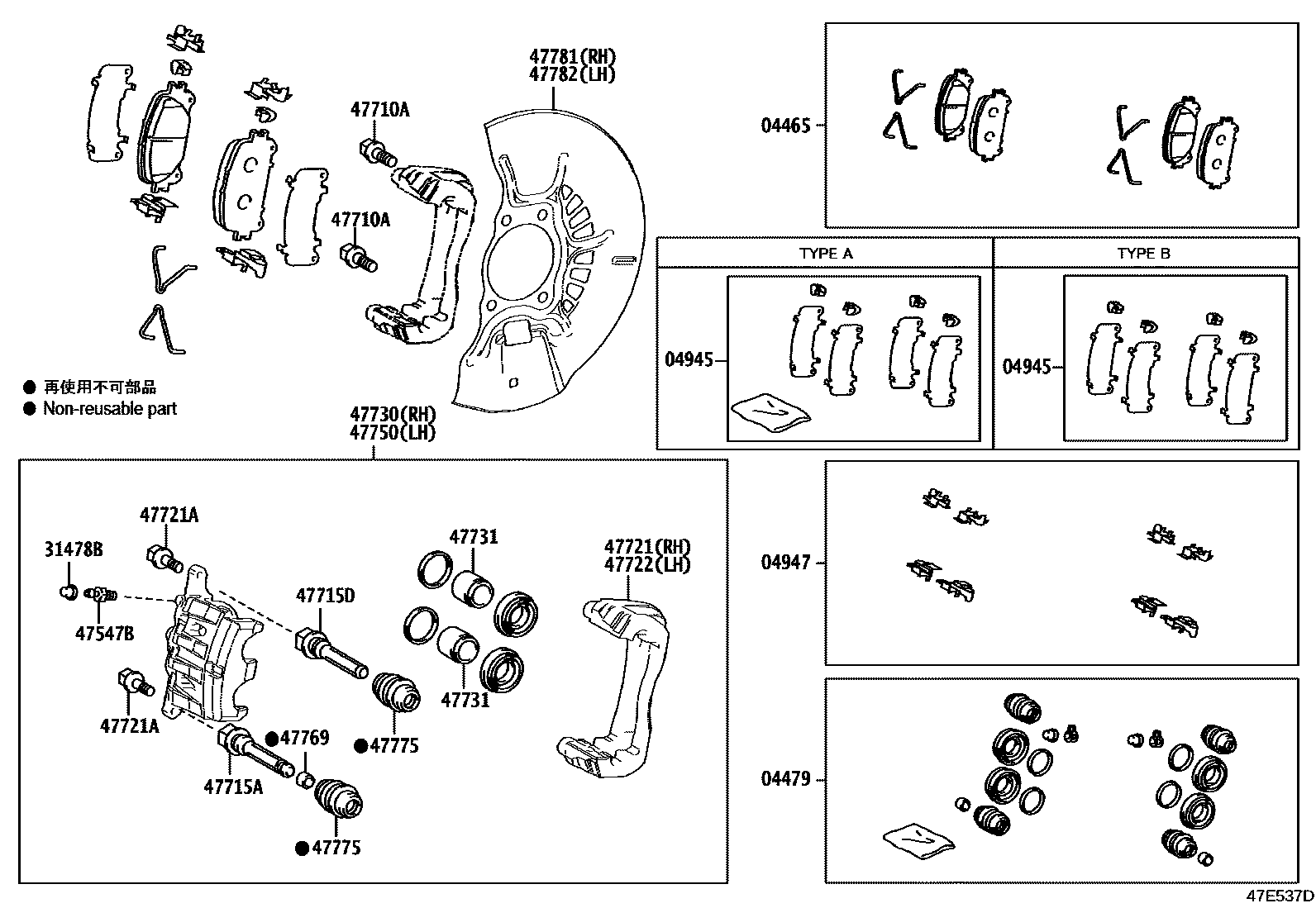

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-78010iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN¥10,700202306

MARK ADVICS VC084H

main04465-78020iTAWH15;AAWH1#..EUR¥11,300202306

MARK ADVICS VC084H

main04465-78020iTAWH15;AAWH1#..EUR¥11,300202306

MARK ADVICS VC084H,INDIA SPEC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-42030iTAWH15;AAWH1#..EUR¥2,210202306

INDIA SPEC

main04478-48200iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN¥2,700202306

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN¥1,250202306

TYPE A:REFER ILLUST.

main04945-48190iTAWH15;AAWH1#..EUR¥1,160202306

TYPE B:REFER ILLUST.

main04945-48190iTAWH15;AAWH1#..EUR¥1,160202306

INDIA SPEC,TYPE B:REFER ILLUST.

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAAWH1#,TAWH15¥1,670202306

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAAWH1#,TAWH15¥160202306

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAAWH1#,TAWH15¥160202306

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212iAAWH1#,TAWH15¥190202306

*14-1.5PX35.5-31

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iAAWH1#,TAWH15¥230202306

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iAAWH1#,TAWH15¥230202306

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-V2020iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN¥6,700202306

main47721-V2030iTAWH15;AAWH1#..EUR¥6,700202306

INDIA SPEC

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAAWH1#,TAWH15¥80202306

*8-1.00PX23-12.5

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-V2020iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN¥6,700202306

main47722-V2030iTAWH15;AAWH1#..EUR¥6,700202306

INDIA SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-V2020iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN¥37,400202306

main47730-V2030iTAWH15;AAWH1#..EUR¥37,400202306

INDIA SPEC

47731PISTON, FRONT DISC BRAKE

main47731-48150iAAWH1#,TAWH15¥1,060202306

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-V2020iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN¥37,400202306

main47750-V2030iTAWH15;AAWH1#..EUR¥37,400202306

INDIA SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iAAWH1#,TAWH15¥200202306

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iAAWH1#,TAWH15¥250202306

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAAWH1#,TAWH15¥1,240202306

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAAWH1#,TAWH15¥1,240202306

19 parts on this diagram · 1 diagram in section
