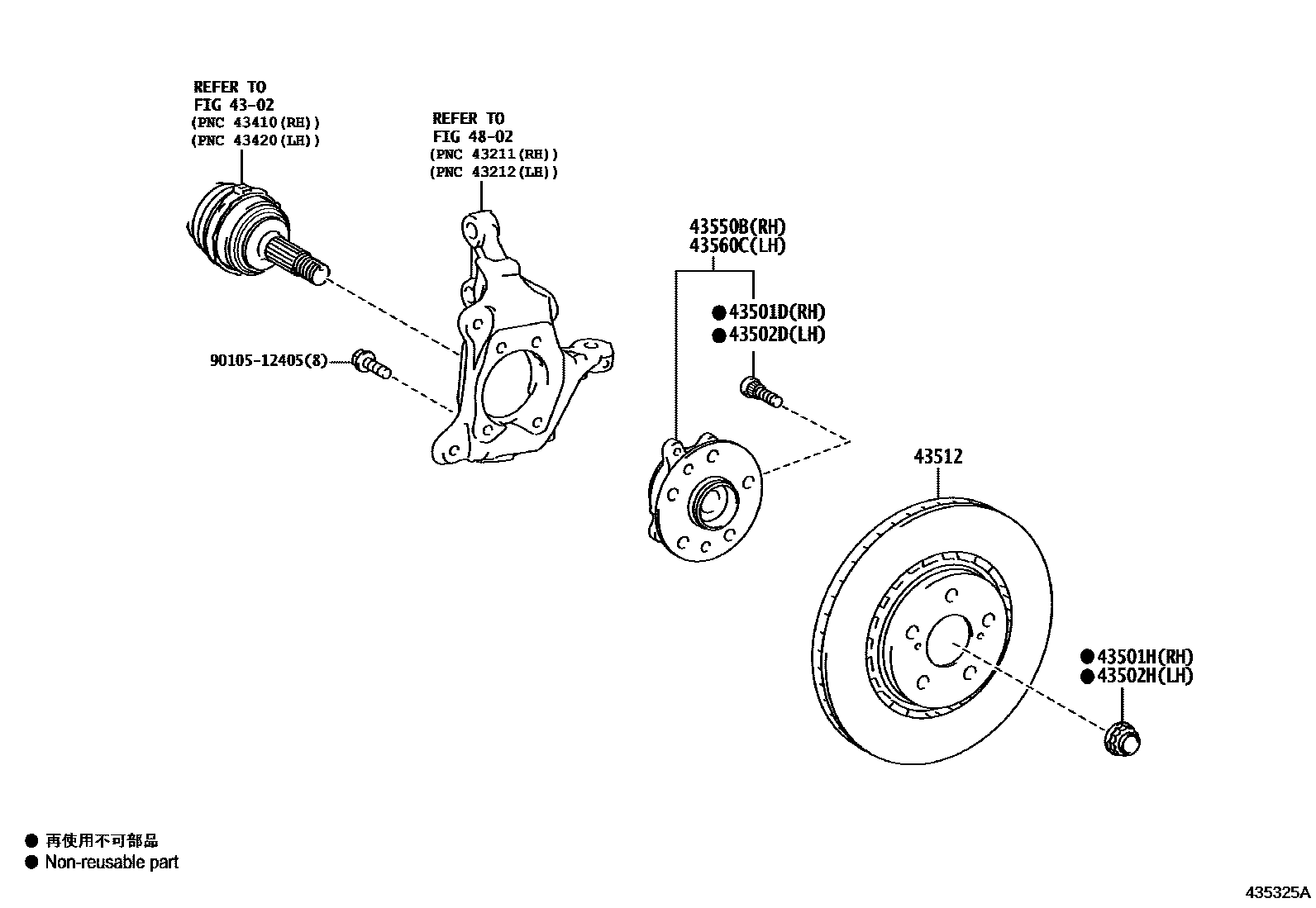

FRONT AXLE HUB

4302

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083iAAWH1#,TAWH15¥280202306

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAAWH1#,TAWH15¥220202306

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083iAAWH1#,TAWH15¥280202306

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAAWH1#,TAWH15¥220202306

43512DISC, FRONT

main43512-V2010iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN¥10,100202306

main43512-V2020iTAWH15;AAWH1#..EUR¥10,400202306

INDIA SPEC

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-V2010iAAWH1#,TAWH15¥18,500202306

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43550-V2010iAAWH1#,TAWH15¥18,500202306

4802

9010512405

main90105-12405¥190

10 parts on this diagram · 1 diagram in section
