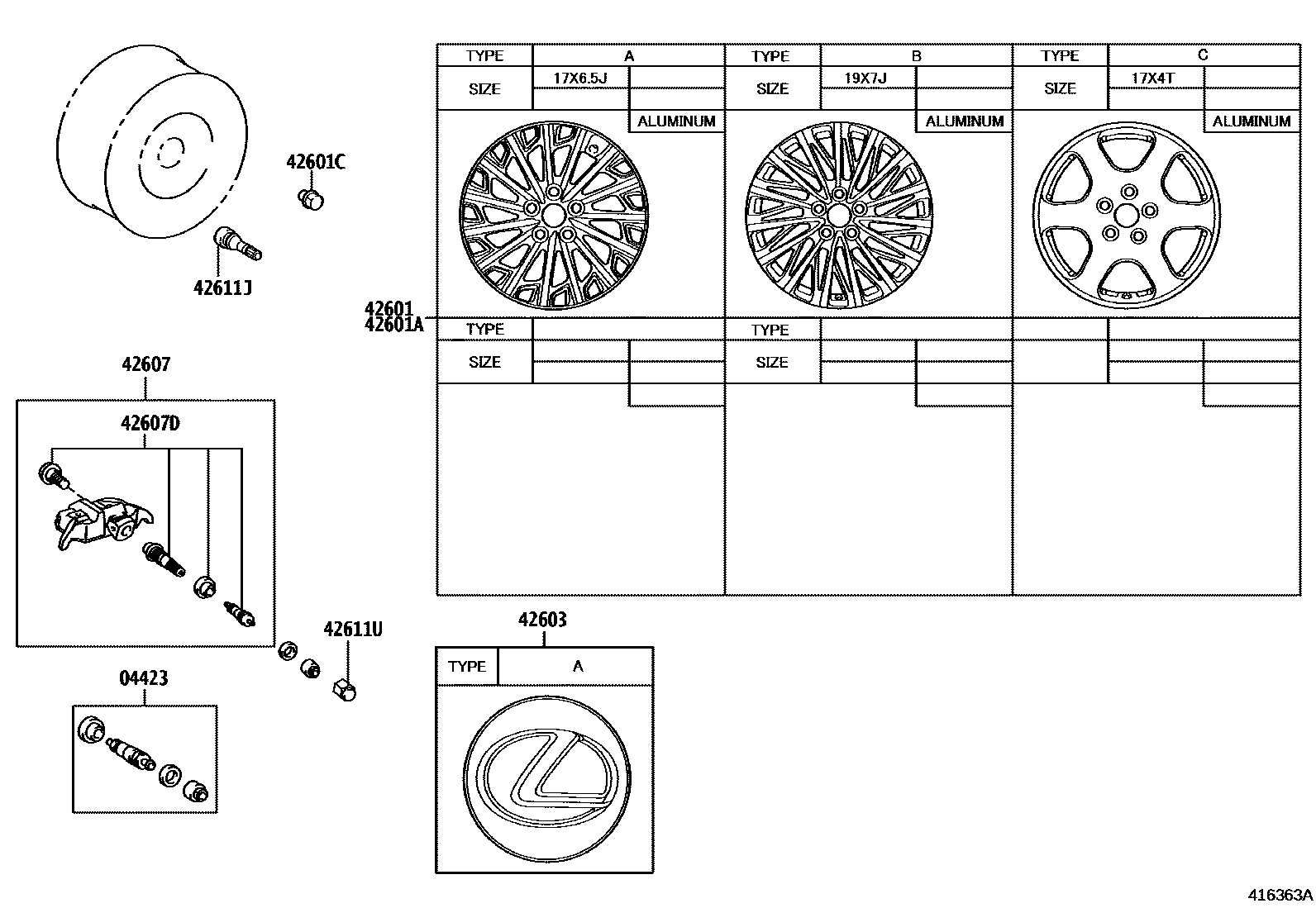

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-48010iAAWH1#,TAWH15202306

42601WHEEL, DISC

main42611-V2011iAAWH1#,TAWH15202306

17X6.5J, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-V2011iAAWH1#,TAWH15202306

17X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01121iAAWH1#,TAWH15202306

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53130iAAWH1#,TAWH15202306

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-78020iAAWH1#,TAWH15202306

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05050iAAWH1#,TAWH15202306

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAAWH1#,TAWH15202306

42611UCAP, TIRE VALVE

main90942-05048iAAWH1#,TAWH15202306

9 parts on this diagram · 2 diagrams in section
