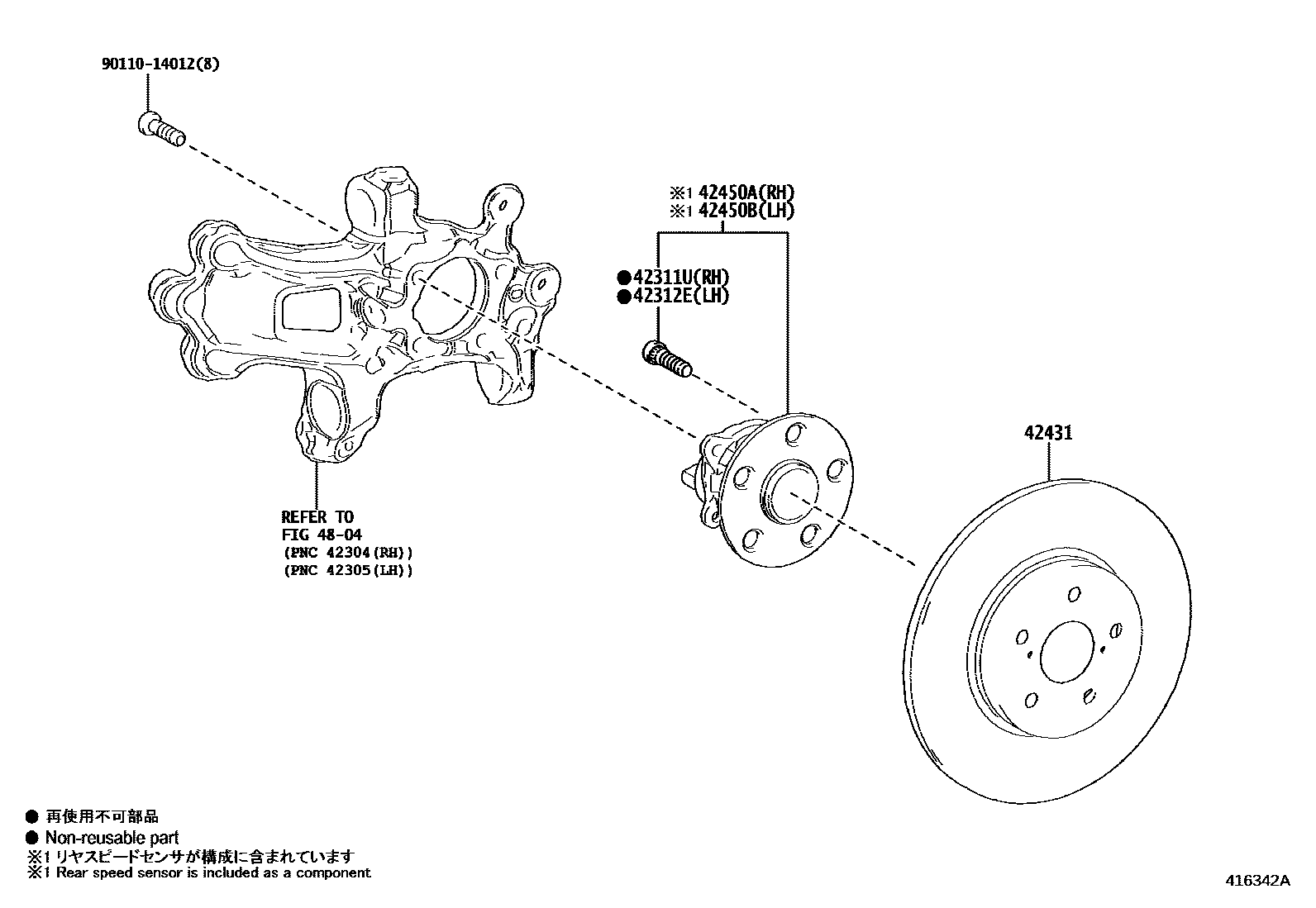

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02083iAAWH1#,TAWH15202306

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02083iAAWH1#,TAWH15202306

42431DISC, REAR

main42431-V2010iAAWH1#,TAWH15202306

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-V2020iAAWH15,TAWH15202306

main42450-V2020iAAWH10202306

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-V2020iAAWH15,TAWH15202306

main42450-V2020iAAWH10202306

4804

9011014012

main90110-14012

7 parts on this diagram · 4 diagrams in section
