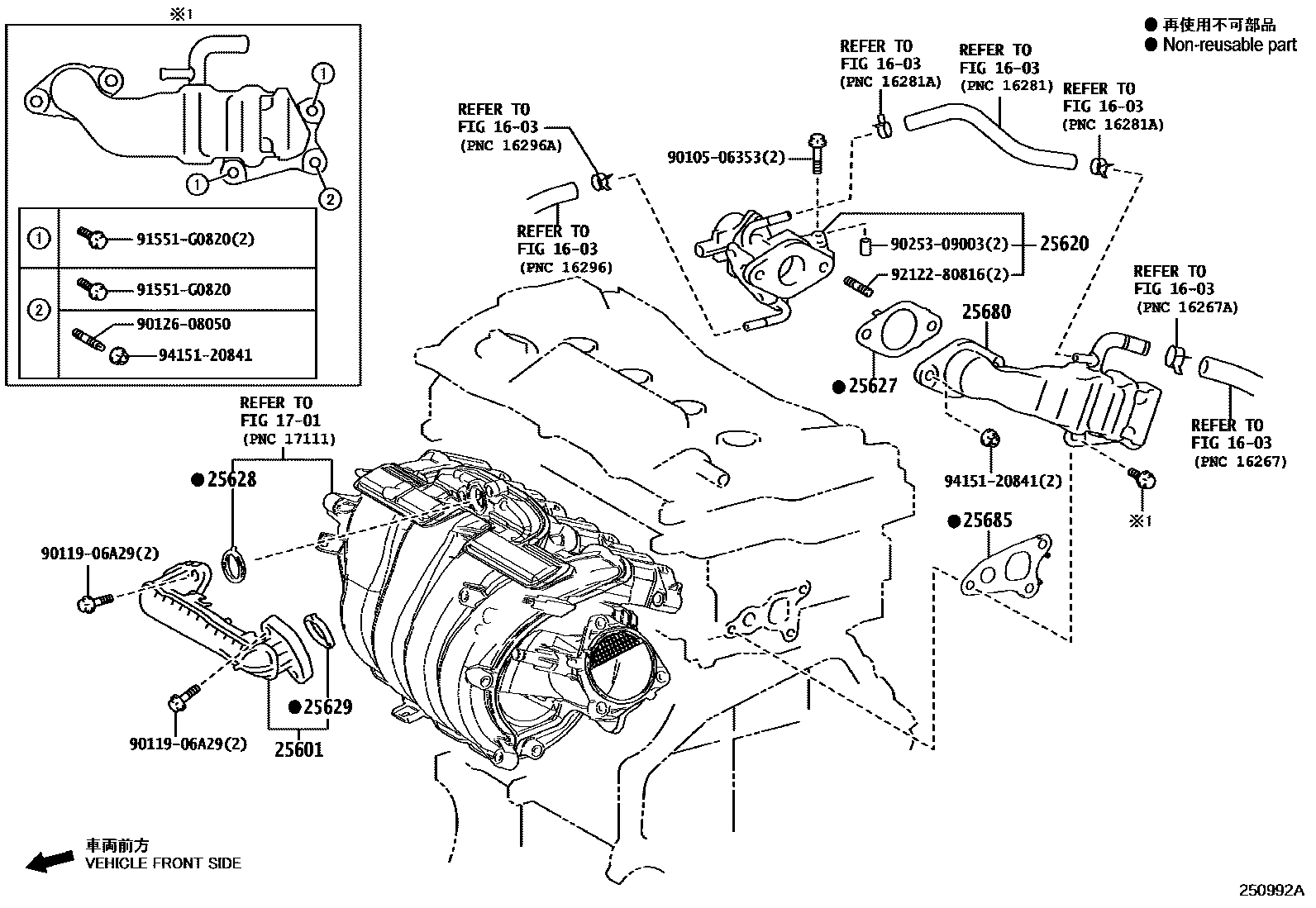

EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25030iA25..AAWH1#202306

25620VALVE ASSY, EGR

main25620-24050iA25..AAWH1#..ARL,EUR,GEN,PHL,RUS,TWN202306

main25620-24060iA25..AAWH15..CHI202306

UKRAINE SPEC

main25620-24060iA25..AAWH15..CHI202306

INDIA SPEC

25627GASKET, EGR VALVE

main25627-24010iA25..AAWH1#202306

25628GASKET, EGR INLET

main25628-25010iA25..AAWH1#202306

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25..AAWH1#202306

25680COOLER ASSY, EGR

main25680-25060iA25..AAWH1#..ARL,EUR,GEN,PHL,RUS,TWN202306

main25680-25080iA25..AAWH15..CHI202306

UKRAINE SPEC

main25680-25080iA25..AAWH15..CHI202306

INDIA SPEC

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25..AAWH1#202306

9010506353

main90105-06353

9011906A29

main90119-06A29

9012608050

main90126-08050

9025309003

main90253-09003

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

16 parts on this diagram · 1 diagram in section
