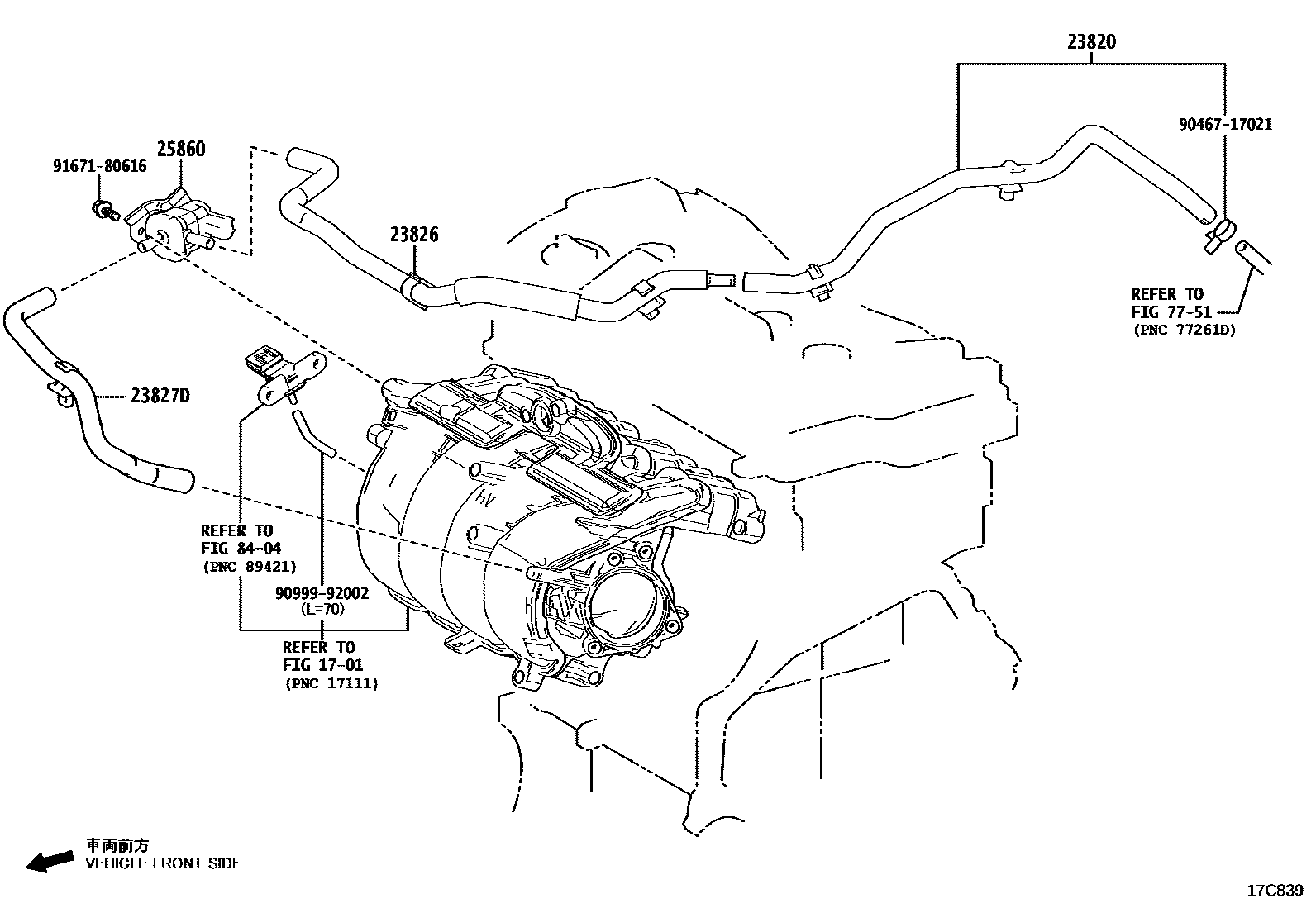

VACUUM PIPING

0001 1 0002 1W(GPF) 0003 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25430iT24..TAWH15..CHI,KRE202311

main23820-V2010iT24..TAWH15..CHI,KRE¥4,060202311

main23820-V2030iA25..AAWH1#..ARL,CHI,GEN,PHL,RUS202306

main23820-V2040iA25..AAWH10..V..GEN;A25..AAWH15..RHD..GEN¥2,550202306

HONG KONG SPEC

main23820-V2040iA25..AAWH10..V..GEN;A25..AAWH15..RHD..GEN¥2,550202306

SINGAPORE SPEC

main23820-V2050iT24..TAWH15..ARL,GEN,TWN¥3,330202311

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25..AAWH1#..ARL,CHI,GEN,PHL,RUS¥2,480202306

main23820-25150iA25..AAWH15..RHD..V..GEN¥3,540202306

HONG KONG SPEC

main23820-25150iA25..AAWH1#..EUR,TWN¥3,540202306

SINGAPORE SPEC

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25..AAWH1#..ARL,CHI,GEN,PHL,RUS¥1,590202306

main23820-25160iA25..AAWH1#..EUR,TWN¥2,200202306

HONG KONG SPEC

main23820-25160iA25..AAWH1#..EUR,TWN¥2,200202306

SINGAPORE SPEC

main23827-25150iT24..TAWH15..ARL,GEN,TWN¥1,850202311

main23827-25160iT24..TAWH15..CHI,KRE202311

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25..AAWH1#..ARL,CHI,GEN,PHL,RUS¥3,480202306

main25860-25070iA25..AAWH1#..EUR,TWN¥3,480202306

HONG KONG SPEC

main25860-25070iA25..AAWH1#..EUR,TWN¥3,480202306

SINGAPORE SPEC

7751

8404

9046717021

main90467-17021¥120

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

10 parts on this diagram · 3 diagrams in section
