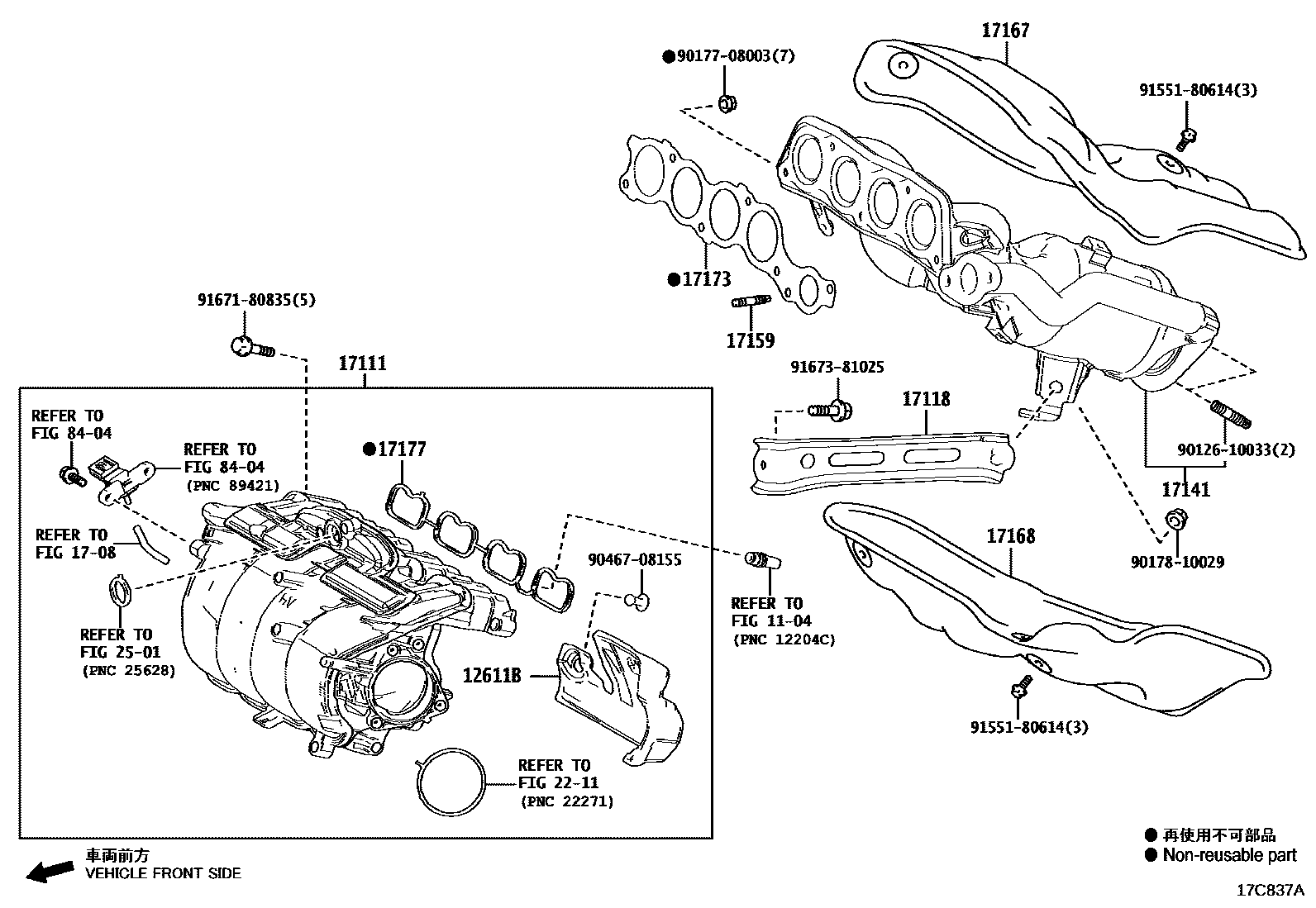

MANIFOLD

0001 1W/O(GPF) 0002 1W(GPF) 0003 1 0004 1 0005 1

1104

12611BCOVER, ENGINE, NO.1

main12613-25020iA25..AAWH1#202306

1708

17111MANIFOLD, INTAKE

main17120-25020iA25..AAWH1#202306

main17120-25080iT24..TAWH15202311

17118STAY, MANIFOLD

main17118-25030iA25..AAWH1#202306

main17118-25040iT24..TAWH15202311

17141MANIFOLD, EXHAUST

main17141-25182iA25..AAWH1#..EUR202306-202508

*114=TOYOTA/25180/Y

main17141-25590iA25..AAWH15..CHI202306

main17141-25630iA25..AAWH1#..ARL,GEN,PHL,RUS,TWN202306

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052iA25..AAWH1#202306

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-25030iA25..AAWH1#..CHI,EUR202306

main17167-25040iA25..AAWH1#..ARL,GEN,PHL,RUS,TWN202306

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-25040iA25..AAWH1#202306

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-25020iA25..AAWH1#202306

main17173-25030iT24..TAWH15202311

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-25010iA25..AAWH1#202306

main17177-25040iT24..TAWH15202311

2211

2501

8404

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

9046708155

main90467-08155

9155180614

main91551-80614

9167180835

main91671-80835

9167381025

main91673-81025

21 parts on this diagram · 5 diagrams in section
