ENGINE OIL COOLER

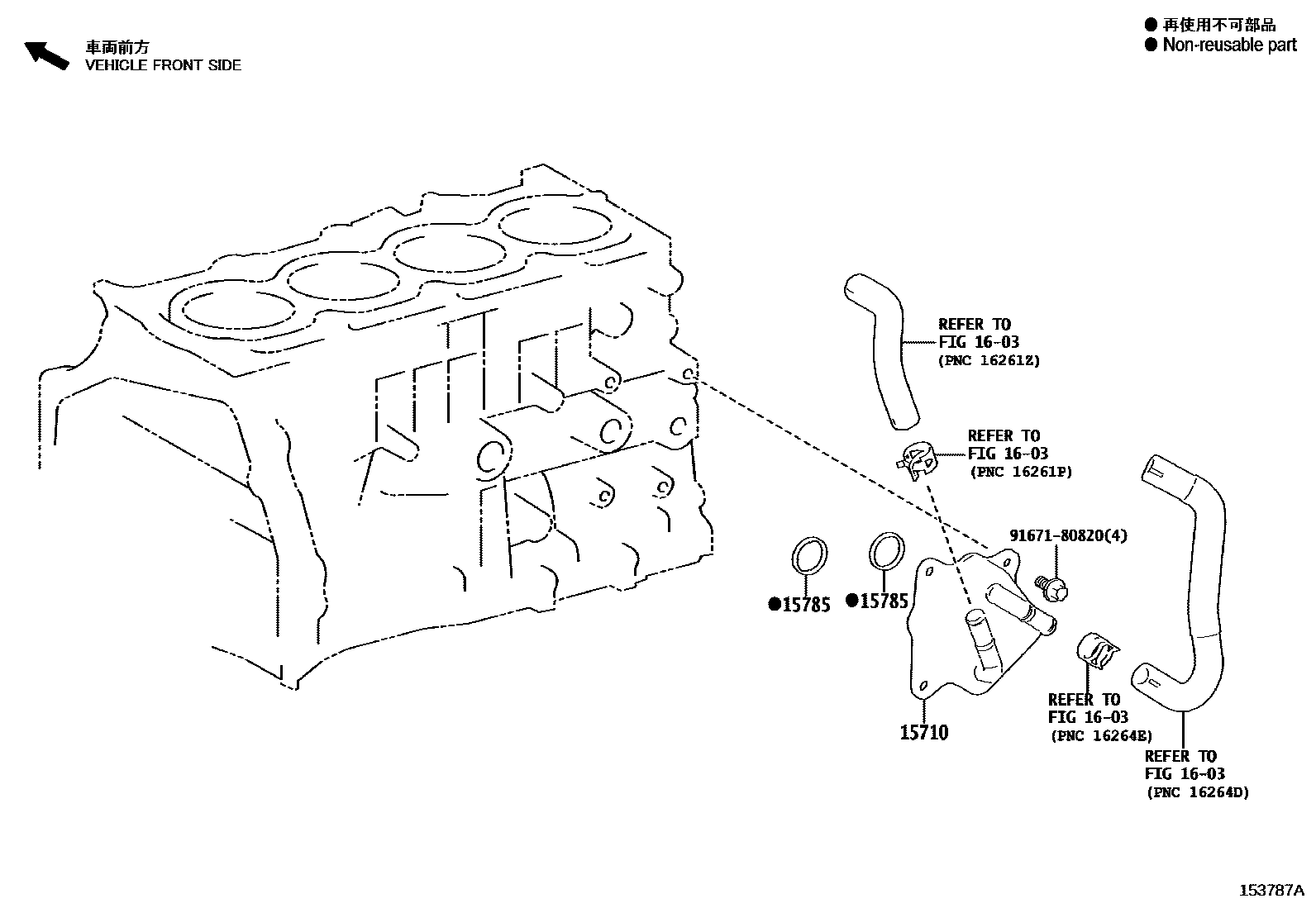

Parts diagram

15710COOLER ASSY, OIL

main15710-25010i¥28,900202306

main15710-25040i¥26,900202311

15785GASKET, OIL COOLER

main15785-25010i¥340202306

main15785-25020i¥340202311

1603

9167180820

main91671-80820¥80

4 parts on this diagram · 2 diagrams in section
