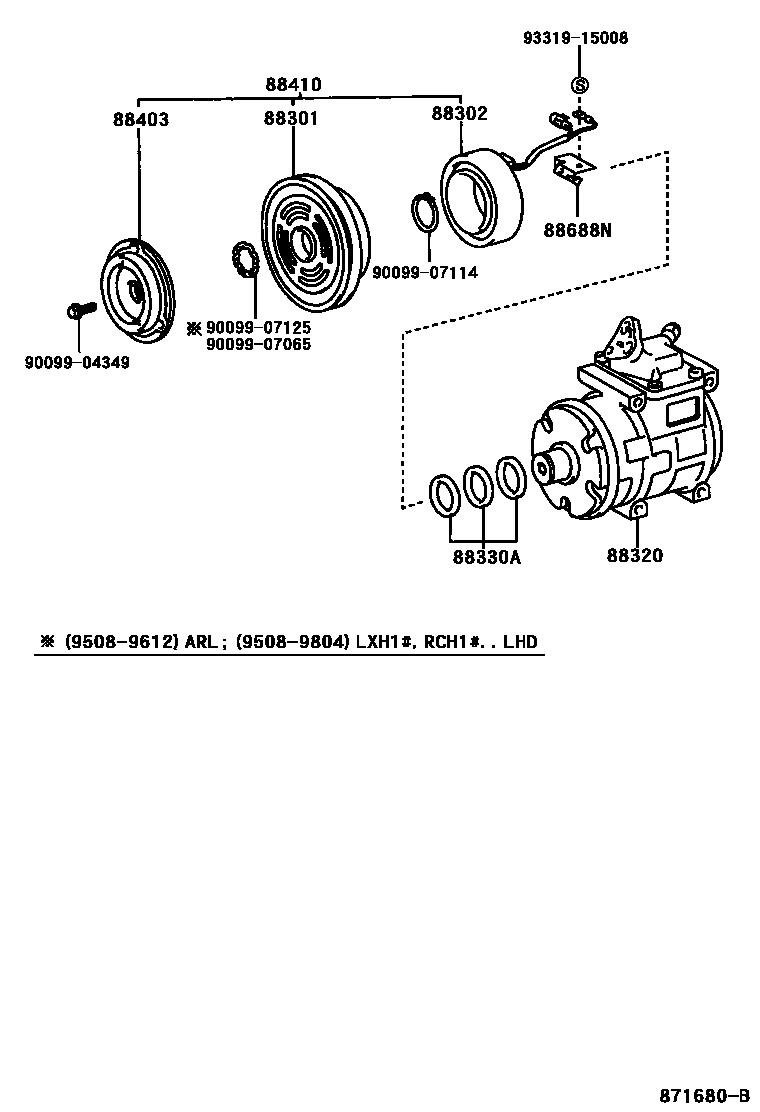

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRCH13,19,2#..LHD199804-200605

main88412-22070iLXH1#,2#..LHD199508-200108

main88412-28090iKLH1#,2#200108-200608

main88412-95J00iRCH1#..LHD;RCH12..ARL199508-200311

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iRCH12..ARL;LXH1#,RCH1#..LHD199508-199708

sub88411-2A030

main88411-2A030iRCH12..ARL;RCH18,22..STD;LXH1#,2#,RCH12,13,19,23,29..LHD199708-200605

main88411-44010iKLH1#,2#200108-200608

88320COMPRESSOR ASSY, COOLER

main88320-25110iKLH1#,2#200108-200808

main88320-26560iRCH12..ARL;LXH1#,RCH1#..LHD199508-199907

sub88320-26600

main88320-26600iLXH1#,2#..LHD199703-200311

sub88320-60H91

main88320-26630iRCH13,19,2#..LHD199804-200605

sub88320-60H91

main88320-2F060iKLH1#,2#200808

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iRCH12..ARL;LXH1#,RCH1#..LHD199508-200605

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iRCH12..ARL;RCH18,22..STD;LXH1#,2#,RCH12,13,19,23,29..LHD199508-200605

main88403-32010iKLH1#,2#200108-200608

88410CLUTCH ASSY, MAGNET

main88410-28200iKLH1#,2#200108-200608

main88410-34020iRCH12..LHD;RCH12..ARL;RCH18,22..STD199508-200311

main88410-34040iRCH13,19,23,29..LHD..MTM199804-200605

main88410-60330iLXH1#,2#..LHD199508-200108

88688NBRACKET, COOLER

main88569-35170iKLH1#,2#200108-200608

main88688-25200iRCH13,19,2#..LHD199804-200605

DEALER OPTION

main88688-25200iRCH13..ATM199907-200108

main88688-2D770iRCH12..LHD;RCH12..ARL;RCH18,22..STD199703-200311

main88688-37320iLXH12..LHD199508-199708

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

12 parts on this diagram · 6 diagrams in section
