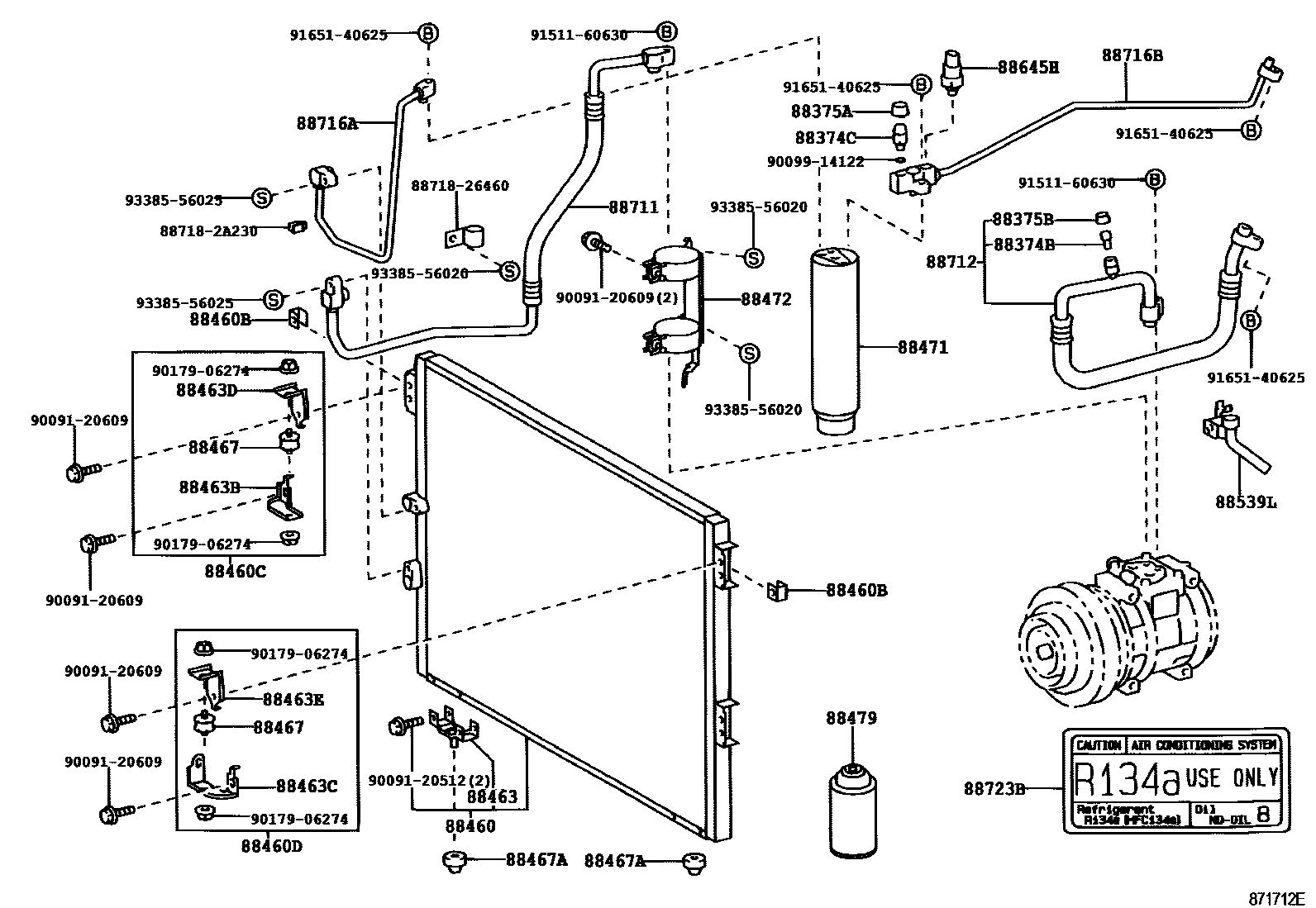

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1O-RING

88374BVALVE, SERVICE, NO.1

main88374-30010iRCH12,22199508-200608

88374CVALVE, SERVICE, NO.2

main88374-30010iKLH1#,2#200808

main88374-33070iLXH1#,2#,RCH1#,2#..LHD199508-200608

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iRCH12,22199508-200608

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iRCH12..ARL;LXH1#,RCH1#..LHD199508-200608

88460CONDENSER ASSY, COOLER

main88460-26330iRCH12,22199508-200808

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-26470iRCH12..ARL;LXH1#,RCH1#..LHD199508-200808

main88688-2F470iKLH1#,2#200808

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-26480iRCH12..ARL;LXH1#,RCH1#..LHD199508-200808

main88688-2F500iKLH1#,2#200808

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-26490iRCH12..ARL;LXH1#,RCH1#..LHD199508-200808

main88688-2F480iKLH1#,2#200808

88463BRACKET, COOLER CONDENSER, NO.1

main88463-26100iRCH12,22199804-200808

88463BBRACKET, COOLER CONDENSER, NO.3

main88463-26160iRCH12,22199508-200808

88463CBRACKET, COOLER CONDENSER, NO.4

main88463-26170iRCH12..ARL;LXH1#,RCH1#..LHD199508-200808

88463DBRACKET, COOLER CONDENSER, NO.5

main88463-26180iRCH13,19,23,29..LHD..MTM199508-200808

88463EBRACKET, COOLER CONDENSER, NO.6

main88463-26180iRCH12..ARL;RCH18,22..STD;LXH1#,2#,RCH12,13,19,23,29..LHD199508-200808

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28040iKLH1#,2#200808

main88467-95704iKLH1#,2#199508-200808

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-28040iKLH1#,2#200108-200808

main88467-33030iKLH1#,2#200808

main88467-95D01iRCH12,22199508-200605

88471TANK, RECEIVER AIR CONDITIONER

main88470-26230iRCH12..ARL199708-199907

sub88471-28100

sub88472-26100

sub90091-20609

main88471-28100iRCH12,22199508-200808

88472BRACKET, RECEIVER TANK, NO.1

main88472-26100iRCH12..ARL;RCH18,22..STD;LXH1#,2#,RCH12..LHD199508-200808

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02007iLXH12,22..5DV..TD199711-200001

250G

main90986-02008iLXH12,22..5DV..TD199711-200001

200G

88539LHOSE, DRAIN COOLER

main88539-26310iKLH12,22..RHD199708-200608

main88539-26320iKLH1#,2#..LHD199708-200808

main88539-26670iKLH1#,2#..LHD200808

88645HSWITCH, PRESSURE NO.1

main88645-34010iRCH12..ARL;RCH18,22..STD;LXH1#,2#,RCH12,13,19,23,29..LHD199508-200608

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-26710iRCH12,22199508-200311

main88711-26740iLXH1#,2#..LHD199508-200108

main88711-26850iRCH13..ATM199804-200605

main88711-2F110iKLH1#,2#200108-200608

main88711-2F290iKLH1#,2#200608-200808

main88711-2F300iKLH1#,2#200808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-26600iRCH12..ARL199508-200311

main88712-26640iLXH1#,2#..LHD199508-200108

main88712-26650iRCH1#..LHD199508-199804

main88712-26780iRCH13,19,23,29..LHD199804-200605

main88712-2F090iKLH1#,2#..LHD200108-200808

main88712-2F100iKLH12,22..RHD200108-200608

main88712-2F310iKLH12,22..RHD200608-200808

main88712-2F320iKLH1#,2#..LHD200808

main88712-2F330iKLH12,22..RHD200808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-26670iRCH12,22199508-200808

main88716-26700iRCH13,19,23,29..LHD..MTM199508-200808

main88716-2N260iKLH1#,2#..LHD200808

main88716-2N270iKLH12,22..RHD200808

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-2F100iKLH12,22..RHD199508-200608

main88716-2F460iLXH1#,2#,RCH13,19,23,29..LHD199508-200108

main88716-2F840iKLH1#,2#..LHD200108-200608

main88716-2N280iKLH12,22..RHD200808

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iRCH12..ARL;LXH1#,RCH1#..LHD199508-200808

8871826460PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26460

887182A230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A230

9009120512

main90091-20512

9009120609

main90091-20609

9009914122

main90099-14122

9017906274

main90179-06274

9151160630

main91511-60630

9165140625

main91651-40625

9338556020

main93385-56020

9338556025

main93385-56025

35 parts on this diagram · 10 diagrams in section
