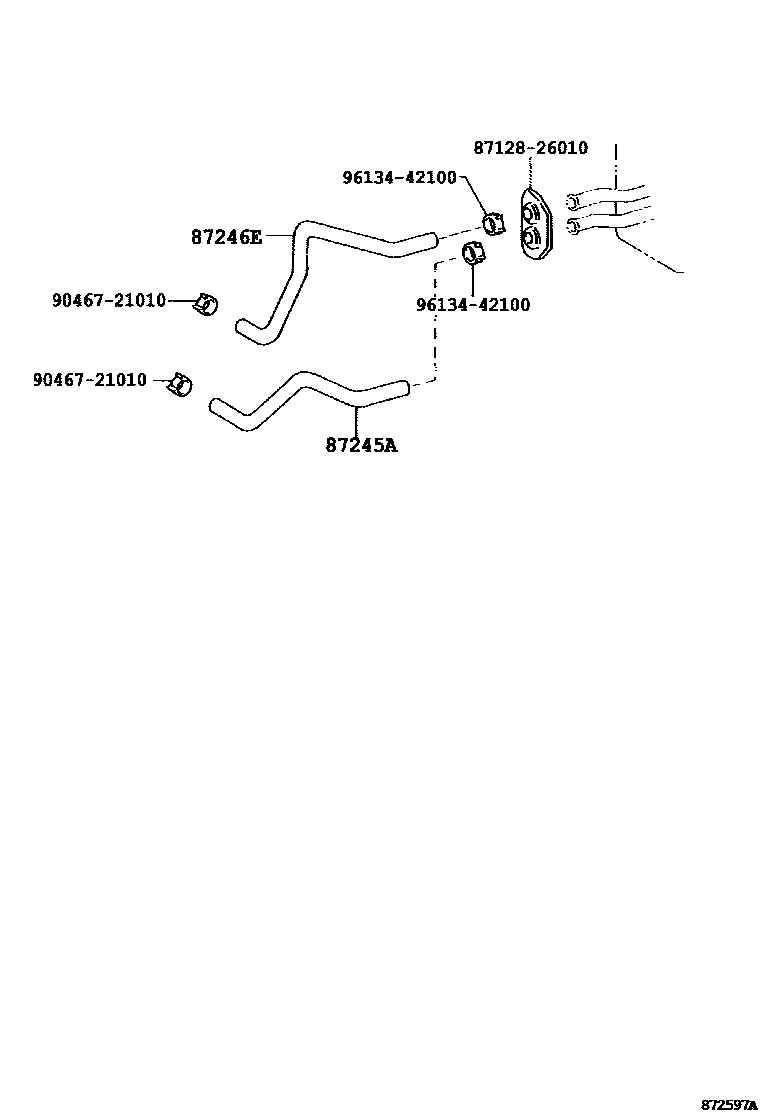

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT,W/O(REAR HEATER) 0003 1FRONT,W(REAR HEATER) 0004 1FRONT 0005 1FRONT,W/O(REAR HEATER) 0006 1FRONT,W(REAR HEATER) 0007 1FRONT 0008 1FRONT,W/O(REAR HEATER) 0009 1FRONT,W(REAR HEATER) 0010 1FRONT,W/O(REAR HEATER) 0011 1FRONT 0012 1FRONT,W(REAR HEATER) 0013 1REAR 0014 1REAR 0015 1REAR 0016 1REAR

87245AHOSE, HEATER WATER, INLET A

main87245-26210iLXH1#,2#..LHD199508-200108

main87245-26260iLXH12,22..RHD199508-200108

main87245-26320iRCH13..RHD199804-200605

main87245-26360iRCH1#,2#..LHD..STD199508-199804

main87245-26440iRCH1#,22..SG..MTM199508-199804

W(REAR HEATER)

main87245-26660iRCH12,22199508-200311

main87245-26790iRCH13,19,23,29..LHD..MTM199804-200605

main87245-26E20iKLH1#,2#..LHD..STD200608

main87245-26F20iKLH12,22..RHD;KLH12,22..LHD..4DV..SG200608

W(REAR HEATER)

main87245-26F20iKLH18..GL200808-201010

main87245-2F660iKLH1#,2#..LHD..STD200108-200608

main87245-2F690iKLH12,22..RHD200108-200608

main87245-2F720iKLH12,22..LHD..4DV..SG200108-200608

W(REAR HEATER)

87246EHOSE, HEATER WATER, OUTLET E

main87245-26230iLXH1#,2#..LHD199508-200108

main87245-26310iLXH12,22..RHD199508-200108

main87245-26370iRCH12..RHD199508-200311

main87245-26400iRCH1#,22..SG..MTM199508-199804

W(REAR HEATER)

main87245-26420iRCH1#,2#..LHD..STD199508-199804

main87245-2F360iRCH13,19,23,29..LHD..MTM..STD199804-200605

main87245-2F380iRCH13,19,23..SG..MTM..(DX,STD)199804-200605

W(REAR HEATER)

main87245-2F410iRCH13..RHD199804-200605

main87245-2F680iKLH1#,2#..LHD..STD200108-200207

sub87245-2F810

main87245-2F710iKLH12,22..RHD200108-200608

main87245-2F750iKLH12,22..LHD..4DV..SG200108-200608

W(REAR HEATER)

main87245-2F810iKLH1#,2#..LHD..STD200207-200608

8712826010GROMMET, HEATER

main87128-26010

9046721010

main90467-21010

9613442100

main96134-42100

5 parts on this diagram · 16 diagrams in section
