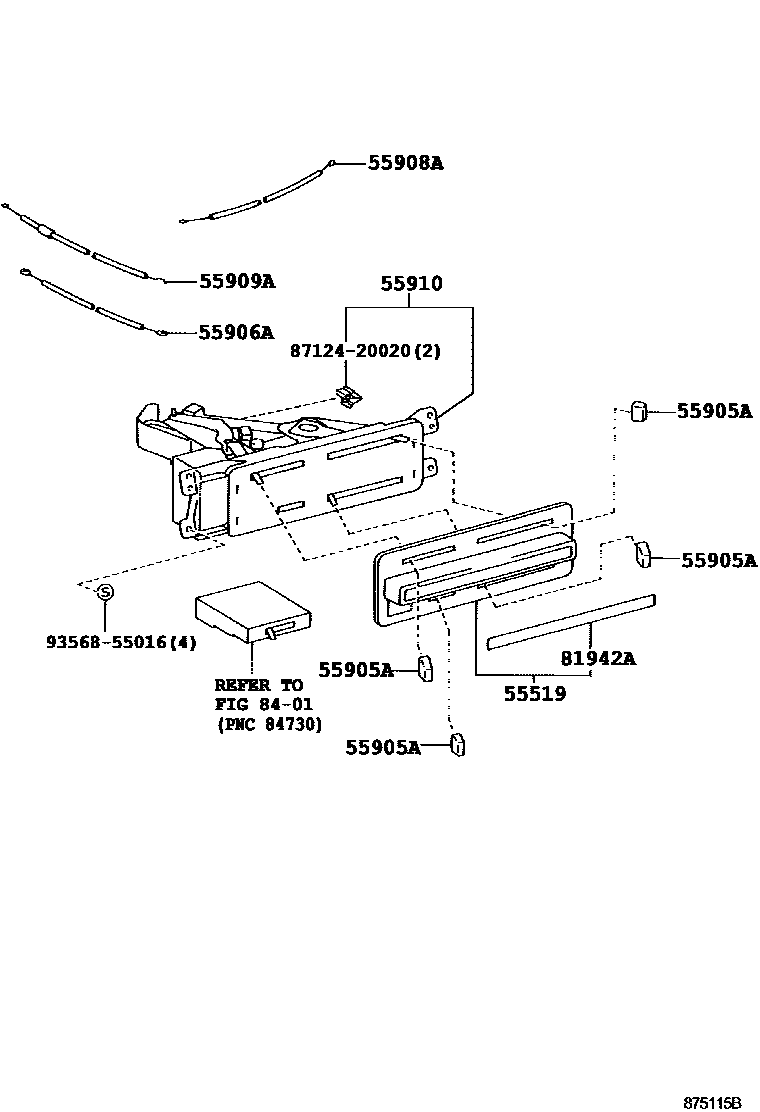

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1REAR CONTROL 0003 1FRONT DUCT 0004 1REAR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-16110iRCH12,22199508-200808

main55519-16140iRCH13..ATM..STD;LXH1#,2#..LHD..STD199512-200808

main55519-26100iLXH12..LHD..SP..MTM;RCH12,13,23..5DV..MTM;LXH22..LHD..(03S,09S)..MTM;LXH12,RCH1#,22,23..LHD..(03S,09S)..DX199508-200608

GERMANY SPEC

main55519-26110iLXH12..05S;LXH12..LHD..STD;RCH12..LHD..(03S,05S,06S)199508-199512

sub55519-16140

main55519-26120iKLH12..03S..DX199804-200608

main55519-26130iKLH18..SG200808

SINGLE AIR CONDITIONER(MAKER OPTION)

main55519-26140iKLH12,22..RHD200808

SINGLE AIR CONDITIONER(MAKER OPTION)

55905AKNOB, HEATER CONTROL

main55905-26020iKLH18,28..03S199508-200606

GERMANY SPEC

main55905-26020iKLH12..06S;KLH12,22..RHD..STD;KLH18,22..SG..(GL,STD)199907-200608

main55905-89115iRCH12,22199508-200808

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-26030iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199911

main55906-26031iRCH12,22199911-200608

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-26020iRCH13,19,23,29..MTM199508-201111

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26010iLXH12,RCH12..RHD199508-199608

main55909-26011iKLH12,22..RHD..STD199608-200608

main55909-26020iLXH12,RCH12..LHD199508-199608

main55909-26021iKLH1#,2#..LHD..STD199608-200608

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-26010iLXH12,22,RCH12,13..RHD..03S199508-200608

main55910-26020iLXH12,RCH12..LHD199508-199606

sub55910-26021

sub55909-26070

main55910-26021iLXH1#,2#,RCH13,19,23,29..LHD199606-200001

sub55910-26022

main55910-26022iRCH13..ATM;LXH1#,2#..LHD200001-200608

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-16200iRCH12,22199508-200808

main81942-16230iKLH1#,2#..LHD..STD199512-200808

main81942-26070iKLH12,22..LHD..03S..MTM199508-200606

GERMANY SPEC

main81942-26070iKLH18..SG;KLH12,22..06S200808

main81942-26080iLXH12..05S;LXH12..LHD..STD;RCH12..LHD..(03S,05S,06S)199508-199512

sub81942-16230

main81942-26090iKLH12..03S..DX199804-200608

8401

8712420020CLAMP, HEATER

main87124-20020

9356855016

main93568-55016

10 parts on this diagram · 4 diagrams in section
