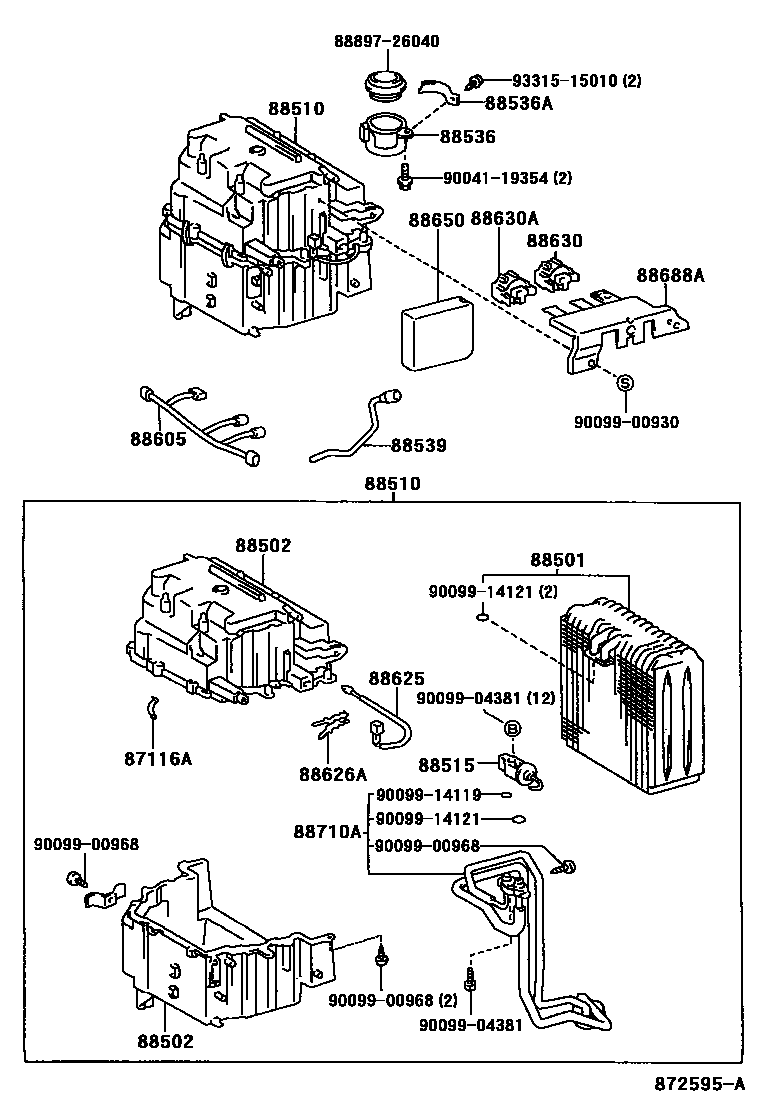

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0004 1O-RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iRCH12..ARL;RCH18,22..STD;LXH1#,2#,RCH12,13,19,23,29..LHD199508-200608

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-26100iRCH13..ATM;LXH1#,2#..LHD199508-200608

main88501-26101iKLH1#,2#200608

main88501-26130iLXH1#,RCH1#..LHD199508-199708

88502CASE SUB-ASSY, COOLING UNIT

main88502-26010iRCH12..ARL199508-199907

UPR

main88502-26010iRCH12,22199907-200608

UPPER

main88502-26030iRCH12..ARL199508-199907

LWR

sub88502-26031

main88502-26031iRCH12,22199907-200311

LOWER

main88502-26040iRCH18,22..STD;LXH1#,2#,RCH12,13,19,23,29..LHD199508-199907

UPR

main88502-26040iRCH13..ATM;LXH1#,2#..LHD199907-200608

UPPER

main88502-26050iRCH13,19,23,29..LHD..MTM199907-200608

LOWER

main88502-26050iLXH1#,RCH1#..LHD199508-199907

LWR

88510UNIT ASSY, COOLER

main88510-26720iRCH18,22..STD;LXH1#,2#,RCH12,13,19,23,29..LHD199508-200808

main88510-2F150iKLH12,22,RCH12,22..RHD199508-200808

main88510-2F540iKLH1#,2#..LHD200808

main88510-2F550iKLH12,22..RHD200808

88515VALVE, COOLER EXPANSION

main88515-20100iRCH13,19,23,29..LHD..MTM199708-200608

sub88515-22240

main88515-20120iRCH12..ARL;RCH18,22..STD;LXH1#,2#,RCH12..LHD199508-200808

sub88515-22240

main88515-22240iKLH1#,2#200808

88536BRACKET, COOLING UNIT, NO.1

main88688-26460iRCH12..ARL;LXH1#,RCH1#..LHD199508-200808

88536ABRACKET, COOLING UNIT, NO.2

main88688-26450iRCH12..ARL;LXH1#,RCH1#..LHD199508-200808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-26250iRCH12,22199508-200808

main88539-26260iRCH13..ATM;LXH1#,2#..LHD199508-200808

main88539-26660iKLH1#,2#..LHD200808

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-26830iRCH12,22199508-200605

main88605-2F600iKLH1#,2#..LHD200108-200608

main88605-2F630iKLH12,22..RHD200108-200608

main88605-2F740iKLH18..03S;KLH12,2#..LHD200608-200808

main88605-2F750iKLH12,22..RHD200608-200808

88625THERMISTOR, COOLER, NO.1

main88625-26060iRCH13,19,23,29..LHD..MTM199708-200608

main88625-26070iRCH12..ARL;RCH18,22..STD;LXH1#,2#,RCH12..LHD199508-200808

main88625-26100iKLH1#,2#200808

88626AHOLDER, THERMISTOR

main88626-28010iRCH13..ATM;LXH1#,2#..LHD199508-200608

88630RELAY ASSY, COOLER

main88630-14030iRCH12,22199508-200605

main88630-87201iKLH1#,2#200108-200608

main88630-95702iKLH12,2#;KLH18..03S200608-200808

88630ARELAY ASSY, COOLER

main88630-95702iRCH13..ATM;LXH1#,2#..LHD199508-200605

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-26220iRCH12..LHD;RCH12..ARL;RCH18,22..STD199508-200311

main88650-37060iLXH1#,2#..LHD199508-200108

main88650-37070iRCH13,19,23,29..LHD..MTM199804-200605

main88650-42010iKLH1#,2#200108-200808

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-26400iRCH12..ARL199508-199708

sub88688-26510

main88688-26440iKLH1#,2#..LHD199508-200808

main88688-26510iRCH12..ARL199708-200808

88710ATUBE ASSY, AIR CONDITIONER

main88710-26220iRCH12,22199508-200808

main88710-26230iLXH1#,RCH1#..LHD199508-200808

main88710-2N220iKLH1#,2#..LHD200808

main88710-2N230iKLH12,22..RHD200808

8889726040VALVE, COOLER MAGNET

main88897-26040

9004119354

main90041-19354

9009900930

main90099-00930

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9331515010

main93315-15010

24 parts on this diagram · 3 diagrams in section
