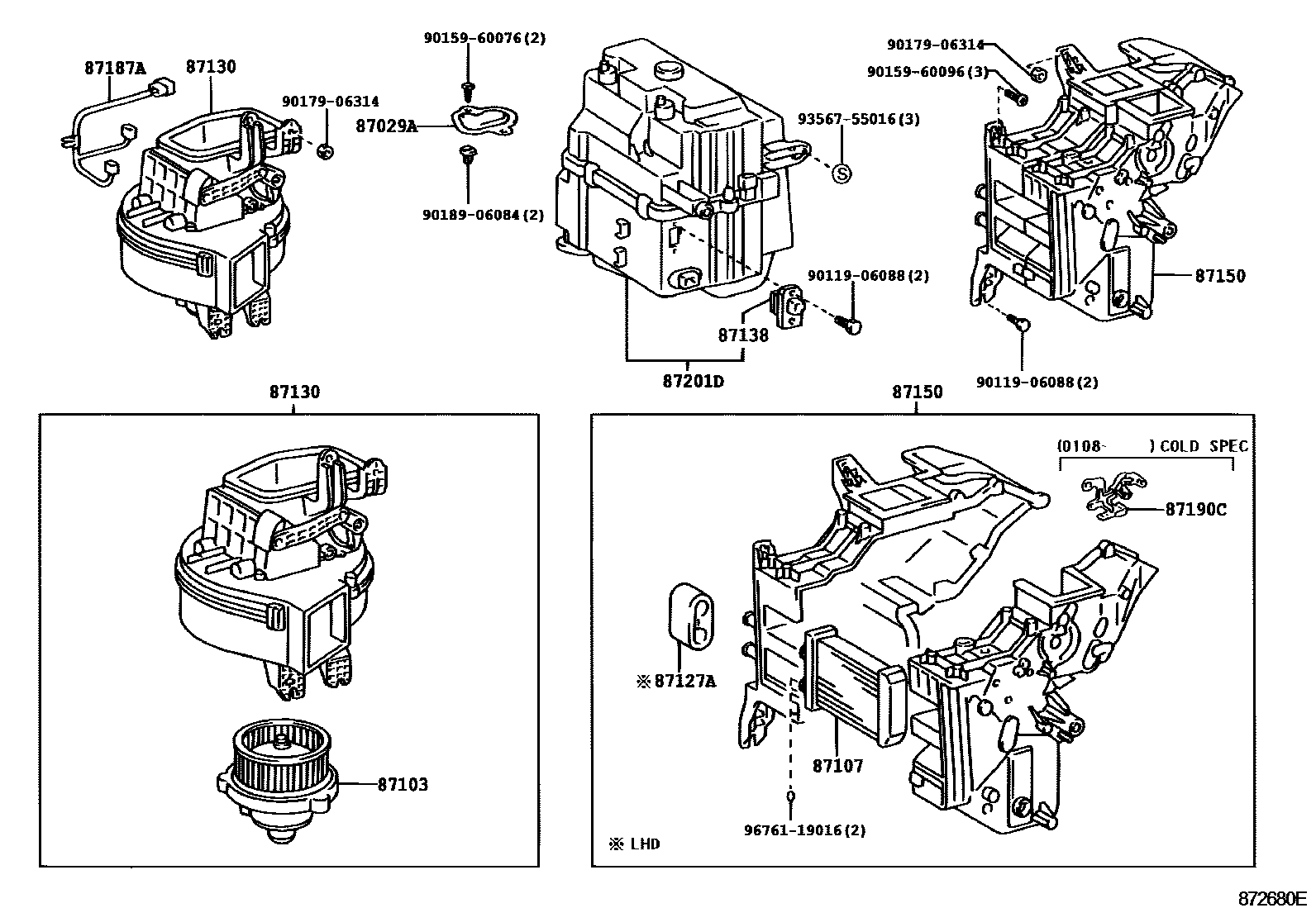

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1VISCOUS HEATER 0005 1REAR

87029ACOVER SUB-ASSY, HEATER INLET HOLE

main87029-26050iLXH1#,2#;RCH13..ATM199508-200608

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-26030iLXH1#,RCH1#..LHD199508-199612

sub87103-44010

main87103-26040iLXH12,RCH12..RHD199508-199612

sub87103-44020

main87103-33030iLXH12,22,RCH12,13..RHD199808-199811

sub87103-33031

main87103-33031iRCH12,22199811-200608

main87103-33040iLXH1#,2#,RCH13,19,2#..LHD199808-199811

sub87103-33041

main87103-33041iRCH13..ATM;LXH1#,2#..LHD199811-200608

main87103-44010iLXH1#,2#,RCH1#,2#..LHD199612-199808

sub87103-33040

main87103-44020iLXH12,22,RCH12,13..RHD199612-199808

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-26010iRCH12,22199508-200608

87127APACKING, HEATER RADIATOR PIPE

main87127-26010iLXH1#,2#,RCH1#,2#..LHD199508-199706

main87127-26020iLXH1#,2#,RCH1#,2#..LHD199706-200608

87130BLOWER ASSY, HEATER, FRONT

main87130-26030iLXH12,22..RHD199508-200608

main87130-26050iKLH1#,2#..LHD199508-200608

87138RESISTOR, HEATER BLOWER

main87138-26050iLXH12,RCH12199508-200608

main87138-26070iRCH13,19,23,29..LHD..MTM199608-200608

87150RADIATOR ASSY, HEATER

main87150-26110iLXH12,RCH12..RHD199508-199608

sub87150-26111

sub55909-26011

main87150-26111iRCH12,22199608-200608

main87150-26140iLXH12,RCH12..LHD199508-199608

sub87150-26141

sub55909-26060

main87150-26141iRCH13,19,23,29..LHD..MTM199608-200608

main87150-26370iKLH1#,2#..LHD200108-200608

COLD SPEC

main87150-26380iKLH12,22..RHD200108-200608

COLD SPEC

87187AWIRE, BLOWER MOTOR LEAD

main87187-26060iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

87190CSWITCH ASSY, TEMPERATURE CONTROL

main87190-26011iKLH12,22..RHD200108-200608

main87190-26020iKLH1#,2#..LHD200108-200608

87201DDUCT SUB-ASSY, AIR

main87201-26010iKLH12,22..RHD199508-200808

main87201-26011iKLH12,22..RHD200808

main87201-26020iRCH13..ATM;LXH1#,2#..LHD199508-200808

main87201-26021iKLH1#,2#..LHD200808

9011906088

main90119-06088

9015960076

main90159-60076

9015960096

main90159-60096

9017906314

main90179-06314

9018906084

main90189-06084

9356755016

main93567-55016

9676119016

main96761-19016

17 parts on this diagram · 5 diagrams in section
