EPC Data

MIRROR

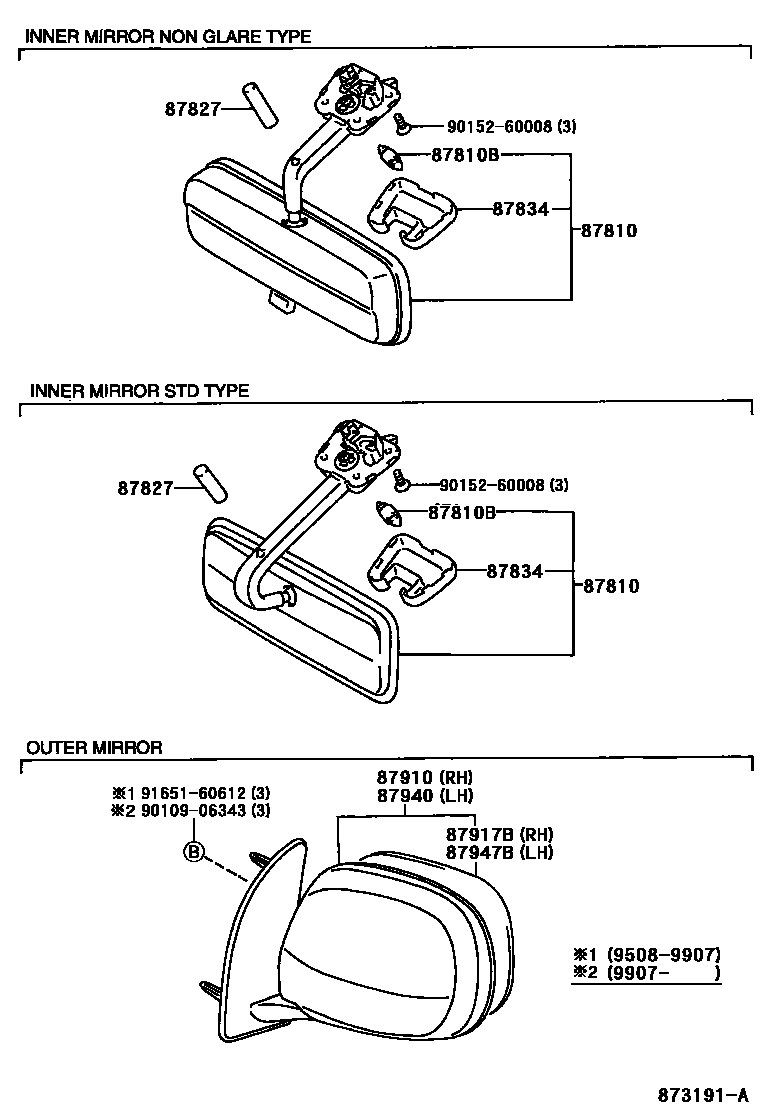

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-26010i199508-200608
main87810-26020i199508-199708
DAY & NIGHT TYPE
main87810-26030i199508-199907
main87810-26050i199703-200608
DAY & NIGHT TYPE
main87810-26080i199907-201010
87810BBULB, INNER REAR VIEW MIRROR LAMP
main90981-11027i199508-200608
12V 10W
main99132-12100i199804-199910
12V 10W
87827ABSORBER, INNER REAR VIEW MIRROR
main87828-30010i199508-200608
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main81241-95J03i199508-200608
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-26130-C1i199804-199910
BLACK,058 ,3L5 ,6L1 ,705 ,8E5
sub87910-26131
sub90109-06343
main87910-26130-C1i199508-199804
BLACK,045 ,182 ,2BA ,3H7 ,6L1 ,705 ,8E5
sub87910-26131
sub90109-06343
main87910-26130-C1i199508-199804
BLACK,045 ,3H7 ,6L1 ,705 ,8E5
sub87910-26131
sub90109-06343
main87910-26130-C1i199804-199907
BLACK,058 ,2BA ,3L5 ,6L1 ,705 ,8E5
sub87910-26131
sub90109-06343
main87910-26130-C1i199804-199907
BLACK,058 ,182 ,2BA ,3L5 ,6L1 ,705 ,8E5
sub87910-26131
sub90109-06343
main87910-26131-C1i199907-200108
BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5 ,8K8
sub87910-26131
sub87910-26132
main87910-26131-C1i200108-200608
BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705 ,8E5 ,8P4
sub87910-26131
sub87910-26132
main87910-26131-C1i199907-200608
BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705 ,8E5
sub87910-26131
sub87910-26132
main87910-26131-C1i199907-200108
BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5
sub87910-26131
sub87910-26132
main87910-26131-C1i200608-200803
BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
sub87910-26131
sub87910-26132
main87910-26132i200804-201111
main87910-26140-C1i199508-199804
BLACK,045 ,3H7 ,6L1 ,705 ,8E5
sub87910-26141
sub90109-06343
main87910-26140-C1i199804-199907
BLACK,058 ,3L5 ,6L1 ,705 ,8E5
sub87910-26141
sub90109-06343
main87910-26141-C1i199907-200311
BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5
main87910-26190-C0i199804-199907
ELECTRIC REMOTE CONTROL,BLACK,058 ,2BA ,3L5 ,6L1 ,705 ,8E5
sub87910-26191
sub90109-06343
main87910-26190-C0i199804-199907
ELECTRIC REMOTE CONTROL,BLACK,058 ,182 ,2BA ,3L5 ,6L1 ,705 ,8E5
sub87910-26191
sub90109-06343
main87910-26190-C0i199804-199907
ELECTRIC REMOTE CONTROL,BLACK,058 ,3L5 ,6L1 ,705 ,8E5
sub87910-26191
sub90109-06343
main87910-26190-C0i199608-199804
ELECTRIC REMOTE CONTROL,BLACK,045 ,3H7 ,6L1 ,705 ,8E5
sub87910-26191
sub90109-06343
main87910-26190-C0i199608-199804
ELECTRIC REMOTE CONTROL,BLACK,045 ,182 ,2BA ,3H7 ,6L1 ,705 ,8E5
sub87910-26191
sub90109-06343
main87910-26191-C0i199907-200108
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5 ,8K8
sub87910-26191
sub87910-26192
main87910-26191-C0i199907-200108
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5
sub87910-26191
sub87910-26192
main87910-26191-C0i199907-200608
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705,8E5
sub87910-26191
sub87910-26192
main87910-26191-C0i200608-200609
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
sub87910-26191
sub87910-26192
main87910-26192-C0i200609-200803
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
sub87910-26193
main87910-26193-C0i200804-201111
W(ELECTRIC RETRACTABLE MIRROR W/HEATER),BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
main87910-26193-C0i200808-201111
BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
main87910-26230-B0i200108-200608
SILVER ME.,199
sub87910-26231
main87910-26230-B1i200405-200609
SILVER M.M.,1E7
sub87910-26231
main87910-26230-G0i200108-200608
DK. GREEN M.M.,6P2
sub87910-26231
main87910-26230-G1i200405-200609
DK.GREEN M.M.,6S3
sub87910-26231
main87910-26230-J0i200108-200608
DK.BLUE MC.,8K8
sub87910-26231
main87910-26230-J1i200405-200609
DK.BLUE M.M.,8P4
sub87910-26231
main87910-26231-B1i200609-200808
SILVER M.M.,1E7
main87910-26231-G1i200609-200808
DK.GREEN M.M.,6S3
main87910-26231-J1i200609-200808
DK.BLUE M.M.,8P4
main87910-26340-C0i199804-199910
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,3L5 ,6L1 ,705 ,8E5
sub87910-26341
sub90109-06343
main87910-26340-C0i199708-199804
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,045 ,3H7 ,6L1 ,705 ,8E5
sub87910-26341
sub90109-06343
main87910-26341-C0i199907-200108
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5
sub87910-26342
main87910-26341-C0i200608-200609
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
sub87910-26342
main87910-26341-C0i200108-200608
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705 ,8E5 ,8P4
sub87910-26342
main87910-26341-C0i199910-200605
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705 ,8E5
sub87910-26342
main87910-26342-C0i200609-200803
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
sub87910-26343
main87910-26343-C0i200804-201111
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
main87910-26390i200108-200609
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)
sub87910-26391
main87910-26391-C0i200609-200808
W(ELECTRIC RETRACTABLE MIRROR W/HEATER),BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
main87910-26410i200108-200609
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)
sub87910-26411
main87910-26411-C0i200609-200808
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
main87910-26420i200108-200311
W(ELECTRIC REMOTE CONTROL MIRROR & CHROME PLATED)
main87910-26490-B0i200608-200609
SILVER M.M.,1E7
sub87910-26491
main87910-26490-G0i200608-200609
DK.GREEN M.M.,6S3
sub87910-26491
main87910-26490-J1i200608-200609
DK.BLUE M.M.,8P4
sub87910-26491
main87910-26491-B0i200609-200803
SILVER M.M.,1E7
sub87910-26492
main87910-26491-G0i200609-200803
DK.GREEN M.M.,6S3
sub87910-26492
main87910-26491-J1i200609-200803
DK.BLUE M.M.,8P4
sub87910-26492
main87910-26492-B0i200804-201111
SILVER M.M.,1E7
main87910-26492-C0i200804-201111
BLACK MC.,209
main87910-26492-G0i200804-201111
DK.GREEN M.M.,6S3
main87910-26492-J1i200804-201111
DK.BLUE M.M.,8P4
main87910-26500-B0i200608-200609
SILVER M.M.,1E7
sub87910-26501
main87910-26500-G0i200608-200609
DK.GREEN M.M.,6S3
sub87910-26501
main87910-26500-J1i200608-200609
DK.BLUE M.M.,8P4
sub87910-26501
main87910-26501-B0i200609-200808
SILVER M.M.,1E7
main87910-26501-G0i200609-200808
DK.GREEN M.M.,6S3
main87910-26501-J1i200609-200808
DK.BLUE M.M.,8P4
main87910-26520-B0i200808-201010
SILVER M.M.,1E7
main87910-26520-C0i200808-201010
BLACK MC.,209
main87910-26520-G0i200808-201010
DK.GREEN M.M.,6S3
main87910-26520-J0i200808-201010
DK.BLUE M.M.,8P4
87917BMIRROR, OUTER REAR VIEW, RH
main87917-26130i199508-200608
main87917-26140i199508-200311
main87931-26190i199608-201111
ELECTRIC REMOTE CONTROL
main87931-26230i200108-200808
ELECTRIC REMOTE CONTROL MIRROR W/HEATER
main87931-26290i200804-200808
ELECTRIC REMOTE CONTROL MIRROR W/HEATER
main87931-28540i200108-200311
ELECTRIC REMOTE CONTROL
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-26160-C1i199508-199804
BLACK,045 ,3H7 ,6L1 ,705 ,8E5
sub87940-26161
sub90109-06343
main87940-26160-C1i199508-199804
BLACK,045 ,182 ,2BA ,3H7 ,6L1 ,705 ,8E5
sub87940-26161
sub90109-06343
main87940-26160-C1i199804-199910
BLACK,058 ,3L5 ,6L1 ,705 ,8E5
sub87940-26161
sub90109-06343
main87940-26160-C1i199804-199907
BLACK,058 ,182 ,2BA ,3L5 ,6L1 ,705 ,8E5
sub87940-26161
sub90109-06343
main87940-26160-C1i199804-199907
BLACK,058 ,2BA ,3L5 ,6L1 ,705 ,8E5
sub87940-26161
sub90109-06343
main87940-26161-C1i199907-200311
BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5
sub87940-26161
sub87940-26162
main87940-26161-C1i199907-200108
BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5 ,8K8
sub87940-26161
sub87940-26162
main87940-26161-C1i199907-200608
BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705 ,8E5
sub87940-26161
sub87940-26162
main87940-26161-C1i200108-200608
BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705 ,8E5 ,8P4
sub87940-26161
sub87940-26162
main87940-26161-C1i200608-200803
BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
sub87940-26161
sub87940-26162
main87940-26162i200804-201111
main87940-26200-C0i199608-199804
ELECTRIC REMOTE CONTROL,BLACK,045 ,3H7 ,6L1 ,705 ,8E5
sub87940-26201
sub90109-06343
main87940-26200-C0i199608-199804
ELECTRIC REMOTE CONTROL,BLACK,045 ,182 ,2BA ,3H7 ,6L1 ,705 ,8E5
sub87940-26201
sub90109-06343
main87940-26200-C0i199804-199907
ELECTRIC REMOTE CONTROL,BLACK,058 ,2BA ,3L5 ,6L1 ,705 ,8E5
sub87940-26201
sub90109-06343
main87940-26200-C0i199804-199907
ELECTRIC REMOTE CONTROL,BLACK,058 ,182 ,2BA ,3L5 ,6L1 ,705 ,8E5
sub87940-26201
sub90109-06343
main87940-26200-C0i199804-199907
ELECTRIC REMOTE CONTROL,BLACK,058 ,3L5 ,6L1 ,705 ,8E5
sub87940-26201
sub90109-06343
main87940-26201-C0i199907-200108
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5
sub87940-26201
sub87940-26202
main87940-26201-C0i199907-200108
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5 ,8K8
sub87940-26201
sub87940-26202
main87940-26201-C0i200608-200609
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
sub87940-26201
sub87940-26202
main87940-26201-C0i199907-200608
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705,8E5
sub87940-26201
sub87940-26202
main87940-26202-C0i200609-200803
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
sub87940-26203
main87940-26203-C0i200804-201111
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
main87940-26203-C0i200808-201010
BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
main87940-26310-B0i200108-200608
SILVER ME.,199
sub87940-26311
main87940-26310-B1i200405-200609
SILVER M.M.,1E7
sub87940-26311
main87940-26310-G0i200108-200608
DK. GREEN M.M.,6P2
sub87940-26311
main87940-26310-G1i200405-200609
DK.GREEN M.M.,6S3
sub87940-26311
main87940-26310-J0i200108-200608
DK.BLUE MC.,8K8
sub87940-26311
main87940-26310-J1i200405-200609
DK.BLUE M.M.,8P4
sub87940-26311
main87940-26311-B1i200609-200808
SILVER M.M.,1E7
main87940-26311-G1i200609-200808
DK.GREEN M.M.,6S3
main87940-26311-J1i200609-200808
DK.BLUE M.M.,8P4
main87940-26390-C0i199804-199910
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,3L5 ,6L1 ,705 ,8E5
sub87940-26391
sub90109-06343
main87940-26390-C0i199708-199804
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,045 ,3H7 ,6L1 ,705 ,8E5
sub87940-26391
sub90109-06343
main87940-26391-C0i200608-200609
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
sub87940-26392
main87940-26391-C0i199910-200605
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705 ,8E5
sub87940-26392
main87940-26391-C0i200108-200608
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,199 ,1E7 ,3L5 ,6P2 ,6S3 ,705 ,8E5 ,8P4
sub87940-26392
main87940-26391-C0i199907-200108
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5
sub87940-26392
main87940-26392-C0i200609-200803
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
sub87940-26393
main87940-26393-C0i200804-201111
W(ELECTRIC REMOTE CONTROL & HEATER),BLACK,058 ,1E7 ,209 ,3L5 ,6S3 ,8E5 ,8P4
main87940-26460i200108-200609
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)
sub87940-26461
main87940-26461-C0i200609-200808
W(ELECTRIC RETRACTABLE MIRROR W/HEATER),BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
main87940-26480i200108-200609
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)
sub87940-26481
main87940-26481-C0i200609-200808
W(ELECTRIC RETRACTABLE MIRROR W/HEATER),BLACK,058 ,1E7 ,3L5 ,6S3 ,8E5 ,8P4
main87940-26490i200108-200311
W(ELECTRIC REMOTE CONTROL MIRROR & CHROME PLATED)
main87940-26610-B0i200608-200609
SILVER M.M.,1E7
sub87940-26611
main87940-26610-G0i200608-200609
DK.GREEN M.M.,6S3
sub87940-26611
main87940-26610-J1i200608-200609
DK.BLUE M.M.,8P4
sub87940-26611
main87940-26611-B0i200609-200803
SILVER M.M.,1E7
sub87940-26612
main87940-26611-G0i200609-200803
DK.GREEN M.M.,6S3
sub87940-26612
main87940-26611-J1i200609-200803
DK.BLUE M.M.,8P4
sub87940-26612
main87940-26612-B0i200804-201111
SILVER M.M.,1E7
main87940-26612-C0i200804-201111
BLACK MC.,209
main87940-26612-G0i200804-201111
DK.GREEN M.M.,6S3
main87940-26612-J1i200804-201111
DK.BLUE M.M.,8P4
main87940-26620-B0i200608-200609
SILVER M.M.,1E7
sub87940-26621
main87940-26620-G0i200608-200609
DK.GREEN M.M.,6S3
sub87940-26621
main87940-26620-J1i200608-200609
DK.BLUE M.M.,8P4
sub87940-26621
main87940-26621-B0i200609-200808
SILVER M.M.,1E7
main87940-26621-G0i200609-200808
DK.GREEN M.M.,6S3
main87940-26621-J1i200609-200808
DK.BLUE M.M.,8P4
main87940-26640-B0i200808-201010
SILVER M.M.,1E7
main87940-26640-C0i200808-201010
BLACK MC.,209
main87940-26640-G0i200808-201010
DK.GREEN M.M.,6S3
main87940-26640-J0i200808-201010
DK.BLUE M.M.,8P4
87947BMIRROR, OUTER REAR VIEW, LH
main87947-26160i199508-200608
main87961-26200i199608-201111
ELECTRIC REMOTE CONTROL
main87961-26250i200108-200311
ELECTRIC REMOTE CONTROL
main87961-26310i200108-200808
ELECTRIC REMOTE CONTROL COLORED MIRROR W/HEATER
9010906343
main90109-06343
9015260008
main90152-60008
9165160612
main91651-60612

11 parts on this diagram · 1 diagram in section

MIRROR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
