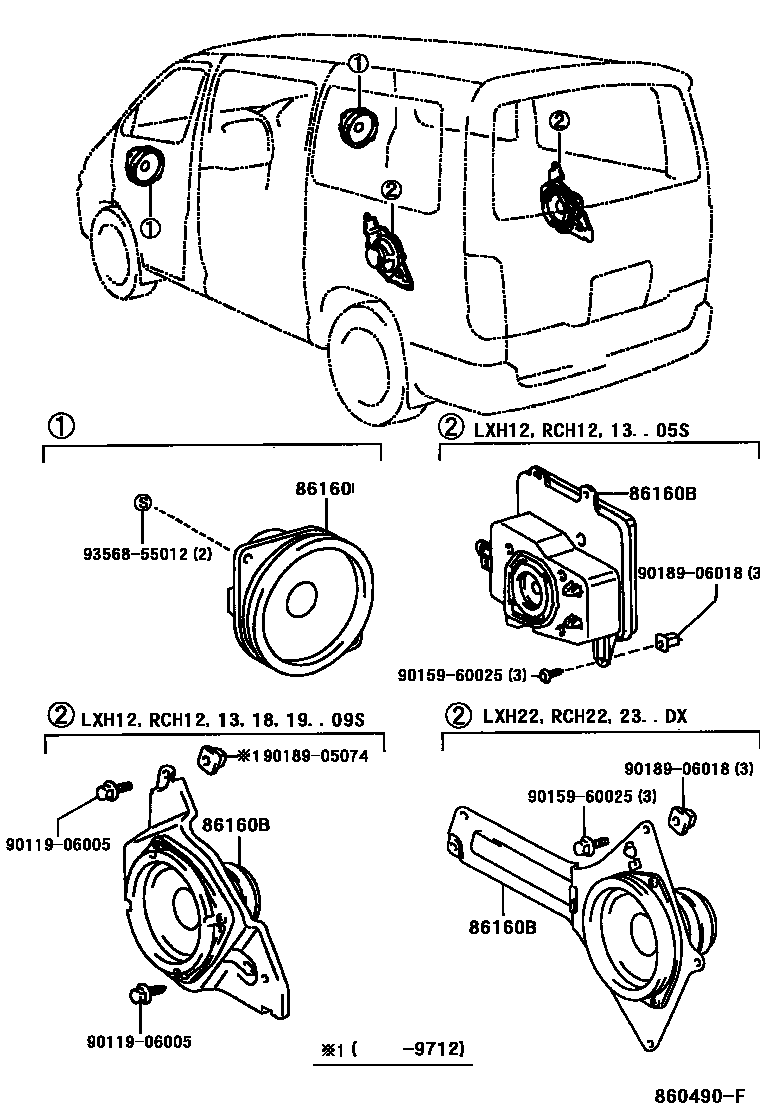

SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-26220iRCH12,22199508-199910

6.3W

sub86160-2B080

main86160-26350iKLH12,22..LHD..(DX,GL)199708-200608

17.5W

main86160-26350iKLH12,22..LHD..(DX,GL)200608-200808

W(4 SPEAKER)

main86160-2B080iRCH12,22199910-200311

10W(1SPEAKER)

main86160-2B080iRCH13,19,23,29..MTM199508-200608

10W(2SPEAKER)

main86160-2B080iKLH1#,2#200608-200808

W(2 SPEAKER)

main86160-52110iKLH1#,2#200808

86160BSPEAKER ASSY, REAR

main86150-26080iLXH12,RCH12,13..05S199708-199907

RH

main86150-26090iLXH12,RCH12,13..05S199708-199907

LH

main86160-26310iLXH12..GL199907-201010

main86160-26340iLXH22..DX199708-201010

main86160-26420iLXH12..09S;RCH13..ATM..DX199708-201010

RH

main86160-26430iKLH12..09S199708-201010

LH

9011906005

main90119-06005

9015960025

main90159-60025

9018905074

main90189-05074

9018906018

main90189-06018

9356855012

main93568-55012

7 parts on this diagram · 2 diagrams in section
