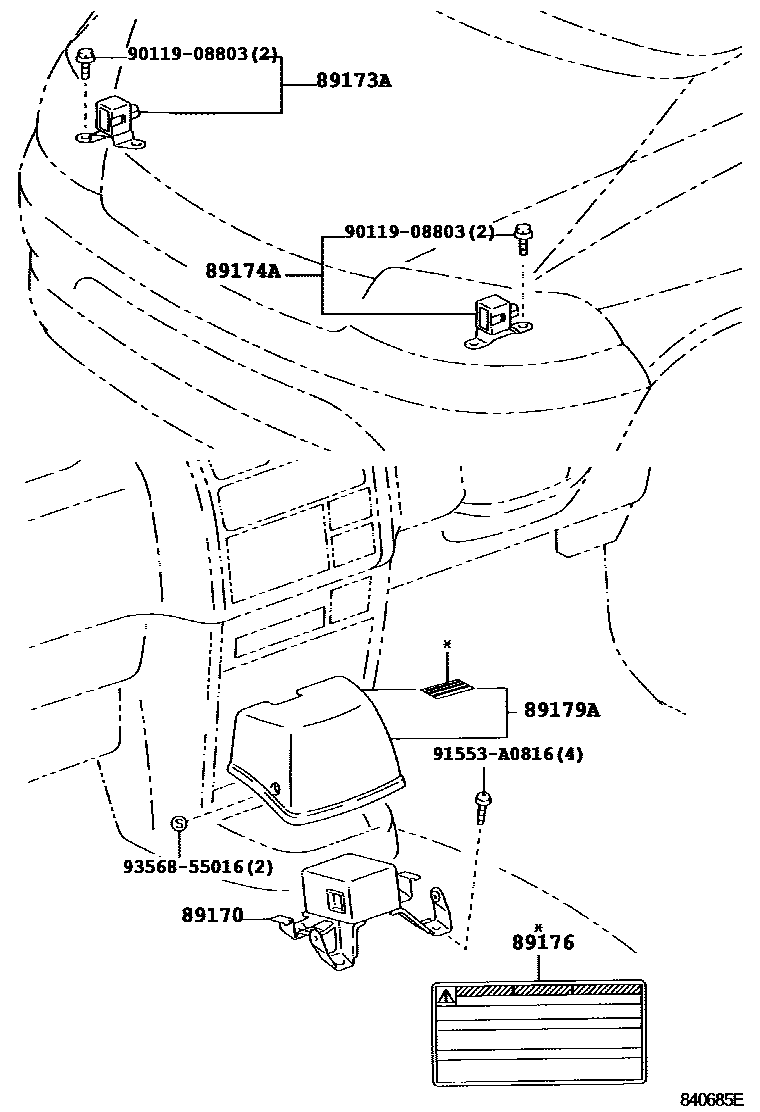

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-26020iLXH1#,RCH1#..EUR199508-199701

W(*80,DRIVER SIDE ONLY)

sub89170-26021

main89170-26021iLXH1#,2#,RCH1#,2#..EUR199701-199804

W(*80,DRIVER SIDE ONLY)

main89170-26030iLXH1#,RCH1#..EUR199508-199701

W(*80,DRIVER SIDE & PASSENGER SIDE)

sub89170-26031

main89170-26031iLXH1#,2#,RCH1#,2#..EUR199701-199804

W(*80,DRIVER SIDE & PASSENGER SIDE)

main89170-26100iLXH1#,2#,RCH1#,2#199804-199910

W(*80,DRIVER SIDE & PASSENGER SIDE)

main89170-26110iRCH13..RHD199804-199910

W(*80,DRIVER SIDE ONLY)

main89170-26200iKLH1#,2#200608

W(*80,DRIVER SIDE & PASSENGER SIDE)

main89170-26210iRCH13,19,23,29..MTM199907-200608

W(*80,DRIVER SIDE & PASSENGER SIDE)

main89170-26220iRCH13,19,23,29..MTM199907-200608

W(*80,DRIVER SIDE ONLY)

main89170-26290iKLH1#,2#200608

W(*80,DRIVER SIDE ONLY)

89173ASENSOR, AIRBAG, FRONT RH

main89173-29075iLXH1#,2#,RCH1#,2#199804-199910

main89173-29175iLXH1#,2#;RCH13..ATM199907-200608

89174ASENSOR, AIRBAG, FRONT LH

main89173-29085iLXH1#,2#,RCH1#,2#199804-199910

main89174-29055iLXH1#,2#;RCH13..ATM199907-200608

89176LABEL, AIRBAG SENSOR COVER CAUTION

main89176-26010iLXH1#,RCH1#199508-199910

sub89176-26020

main89176-26020iLXH1#,2#;RCH13..ATM199907-201111

89179ACOVER, AIRBAG SENSOR

main89179-26010-B0iLXH1#,2#,RCH1#,2#..EUR199508-199804

BLUISH GRAY,TRIM1#

main89179-26050-B0iLXH1#,2#,RCH1#,2#199804-199910

BLUISH GRAY,TRIM1#

sub89179-26110

main89179-26110-B0iLXH1#,2#;RCH13..ATM199907-201010

BLUISH GRAY,TRIM1#

main89179-26110-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

9011908803

main90119-08803

91553A0816

main91553-A0816

9356855016

main93568-55016

8 parts on this diagram · 1 diagram in section
