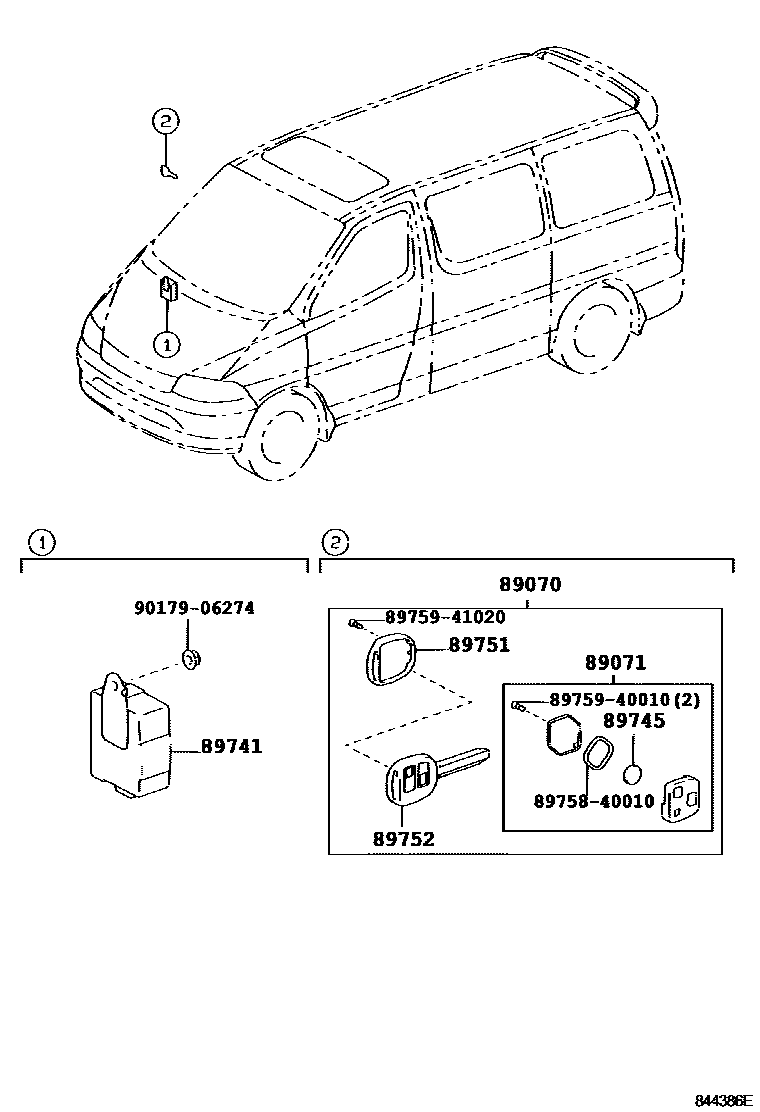

WIRELESS DOOR LOCK

0001 1 0002 1W(ENGINE IMMOBILIZER SYSTEM)

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-26090iKLH1#,2#,RCH13,19,23,29..LHD..MTM..STD200108-200605

sub89070-26091

main89070-26091iKLH1#,2#..LHD..MTM..STD200605-200608

sub89070-26092

main89070-26100iRCH12,22200108-200311

sub89070-12300

main89070-42211iKLH1#,2#,RCH13,19,23,29200108-200605

W(ENGINE IMMOBILIZER SYSTEM)

sub89070-42212

main89070-42212iKLH1#,2#200605-200608

W(ENGINE IMMOBILIZER SYSTEM)

sub89070-42213

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-33061iKLH1#,2#..LHD..MTM..STD200108-200608

main89071-60040iRCH12,22200108-200311

MASTER KEY

main89071-60081iRCH13,19,23,29200108-200608

W(ENGINE IMMOBILIZER SYSTEM)

89741RECEIVER, DOOR CONTROL

main89741-26120iRCH13,19,23,29..LHD200108-200808

sub89741-26121

main89741-26121iKLH1#,2#..LHD200808

main89741-26130iRCH13..RHD200108-200808

main89741-26131iKLH12,22..RHD200808

main89741-26140iRCH12,22200108-200311

89745BATTERY, TRANSMITTER

main89745-40010iKLH1#,2#200108-200608

89751COVER, TRANSMITTER HOUSING

main89751-13010iKLH1#,2#,RCH13,19,23,29200108-200510

sub89751-13012

main89751-13011iKLH1#,2#,RCH1#,2#200511-200608

sub89751-13012

main89751-44020iRCH12,22200108-200311

sub89751-44021

89752CASE, TRANSMITTER HOUSING

main89752-13020iKLH1#,2#,RCH13,19,23,29200108-200608

main89752-13020iKLH1#,2#200608

BLANK KEY

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9017906274

main90179-06274

10 parts on this diagram · 2 diagrams in section
