ABS & VSC

0001 1 0002 1 0003 1

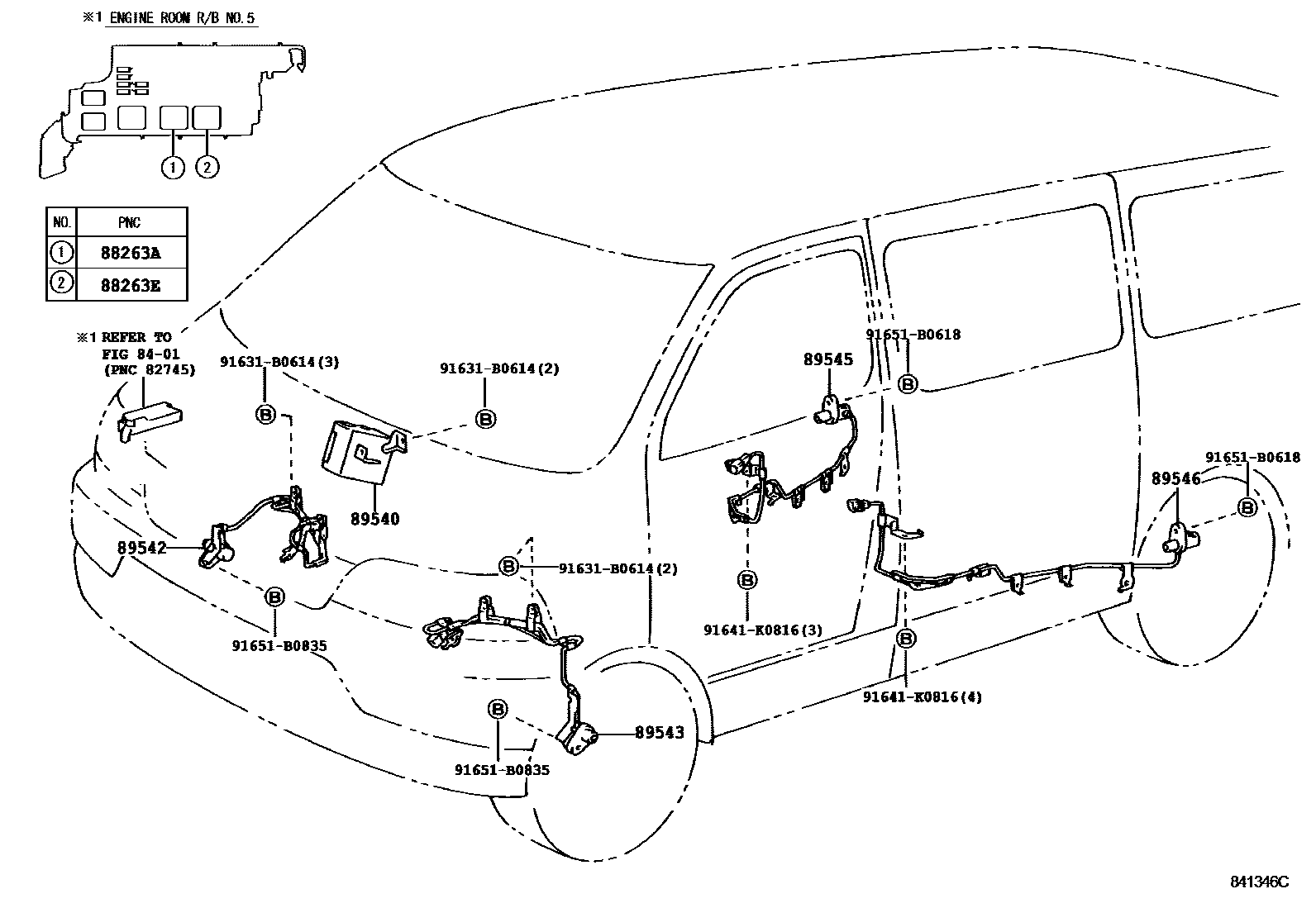

8401

88263ARELAY, SKID CONTROL

main88263-14110iLXH1#,2#,RCH1#,23,29..03S,05S,06S,09S199508-200608

88263ERELAY, SKID CONTROL NO.2

main88263-24030iRCH13,19,23,29..MTM199508-200608

89540COMPUTER ASSY, SKID CONTROL

main89540-26050iLXH12,RCH12..RHD..EUR199508-199608

main89540-26060iLXH12,RCH12..LHD199508-199608

main89540-26080iLXH18,28,RCH18,19,28,29199608-199907

main89540-26100iLXH12,22,RCH12..RHD..EUR199608-199708

main89540-26110iLXH12,22,RCH12,22..LHD199608-199708

main89540-26190iLXH22..LHD..4DV..DSL;LXH22,RCH22..5DV..(EFI,TD)199703-199708

W(LSD)

main89540-26210iLXH12,22,RCH12,13..RHD..EUR199708-199910

main89540-26220iLXH12,22,RCH12,13,22,23..LHD199708-199907

main89540-26310iRCH13..RHD199907-200608

main89540-26320iRCH13,23..LHD..MTM199907-200608

main89540-26340iKLH18,28199907-200608

89542SENSOR, SPEED, FRONT RH

main89542-26040iLXH12,RCH12..EUR199508-199608

main89542-26050iLXH18199608-200608

main89542-26080iKLH12,22199608-200608

main89542-26100iLXH28199703-200608

89543SENSOR, SPEED, FRONT LH

main89543-26040iLXH12,RCH12..EUR199508-199608

main89543-26050iLXH18199608-200608

main89543-26080iLXH12,22;RCH13..ATM199608-200608

main89543-26100iLXH28199703-200608

89545SENSOR, SPEED, REAR RH

main89545-26030iLXH12,RCH12..EUR199508-199608

main89545-26040iKLH1#,2#199608-200608

89546SENSOR, SPEED, REAR LH

main89546-26030iLXH12,RCH12..EUR199508-199608

main89546-26040iLXH1#,RCH1#..EUR199608-199703

main89546-26080iLXH1#,2#,RCH1#,2#..EUR199703-200608

91631B0614

main91631-B0614

91641K0816

main91641-K0816

91651B0618

main91651-B0618

91651B0835

main91651-B0835

12 parts on this diagram · 3 diagrams in section
