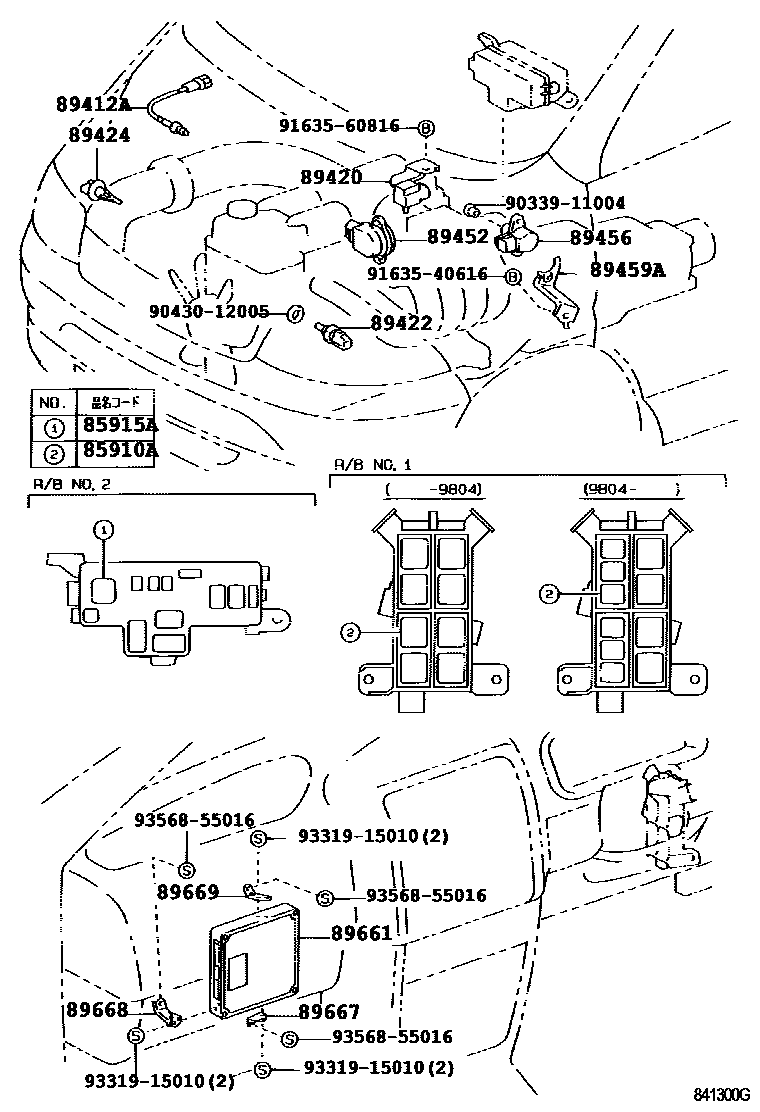

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iRCH1#,2#199508-199804

main90987-02012iRCH1#,2#199804-200605

85915ARELAY, MAIN

main90987-02009iRCH13,19,23,29..MTM199508-200311

main90987-02012iRCH13,19,23,29200108-200605

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-34010iRCH13,19,23,29200108-200605

89420SENSOR ASSY, VACUUM

main89420-0W060iRCH1#,2#199606-199907

DELCO

main89420-0W060iRCH12,18,22,28199708-199805

main89420-26050iRCH12..EUR199508-199608

NIPPONDENSO

sub89420-0W060

main89420-26060iRCH12199805-199907

DENSO

main89420-26060iRCH12,22199907-200311

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRCH12,22199508-200311

main89422-35010iRCH13,19,23,29199804-200605

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRCH1#,2#199508-200605

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRCH12,18,22,28199508-200311

main89452-35020iRCH13,19,23,29199804-200605

89456RESISTOR, VARIABLE

main89456-30010iRCH12..ARL199708-200311

main89456-50010iRCH12..ARL199508-199708

89459ABRACKET, VARIABLE RESISTOR

main89459-26010iRCH12..ARL199508-200311

89661COMPUTER, ENGINE CONTROL

main89661-26300iRCH12..MTM..EUR199508-199804

main89661-26310iRCH12..ATM199508-199804

main89661-26310iRCH12..LHD..(03S,06S,09S)..MTM199508-199708

SWITZERLAND SPEC

main89661-26320iRCH1#,2#..MTM..EUR199508-199804

W(IMMOBILIZER)

main89661-26330iRCH12..ATM199508-199804

W(IMMOBILIZER)

main89661-26330iRCH12..LHD..(03S,06S,09S)..MTM199508-199708

SWITZERLAND SPEC & W(IMMOBILIZER)

main89661-26340iRCH12..ARL199508-200311

main89661-26500iRCH13,23..LHD..MTM..STD199804-200108

main89661-26510iRCH13..ATM..STD199804-200108

main89661-26520iRCH19,29..STD199804-200108

main89661-26530iRCH13,23..MTM..(DX,STD)199804-200108

W(IMMOBILIZER)

main89661-26540iRCH13..ATM199804-200108

W(IMMOBILIZER)

main89661-26550iRCH19,29..STD199804-200108

W(IMMOBILIZER)

main89661-26670iRCH13,23200108-200605

main89661-26770iRCH19,29200108-200605

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-26040iRCH12,13..RHD199508-199906

main89667-26041iRCH12,13,22..RHD199906-200605

main89667-26050iRCH1#,2#..LHD199508-199803

sub89667-26051

main89667-26051iRCH13,19,23,29..LHD199803-200108

main89667-26110iRCH13,19,23,29..LHD200108-200605

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-26040iRCH12,13..RHD199508-199906

main89668-26041iRCH12,13..RHD..03S199906-200311

main89668-26061iRCH13..RHD200108-200605

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-26030iRCH12,13..RHD199508-199906

main89669-26031iRCH12,13..RHD..03S199906-200605

9033911004

main90339-11004

9043012005

main90430-12005

9163540616

main91635-40616

9163560816

main91635-60816

9331915010

main93319-15010

9356855016

main93568-55016

19 parts on this diagram · 2 diagrams in section
