METER

0001 1W/O(TACHOMETER) 0002 1W/O(TACHOMETER) 0003 1W/O(TACHOMETER) 0004 1W(TACHOMETER) 0005 1W(TACHOMETER) 0006 1W(TACHOMETER) 0007 1 0008 1SPEED METER DRIVE CABLE 0009 1SENSOR, SPEEDMETER 0011 1SENSOR, SPEEDMETER 0013 1CLOCK & TACHO SENSOR(DETECTOR

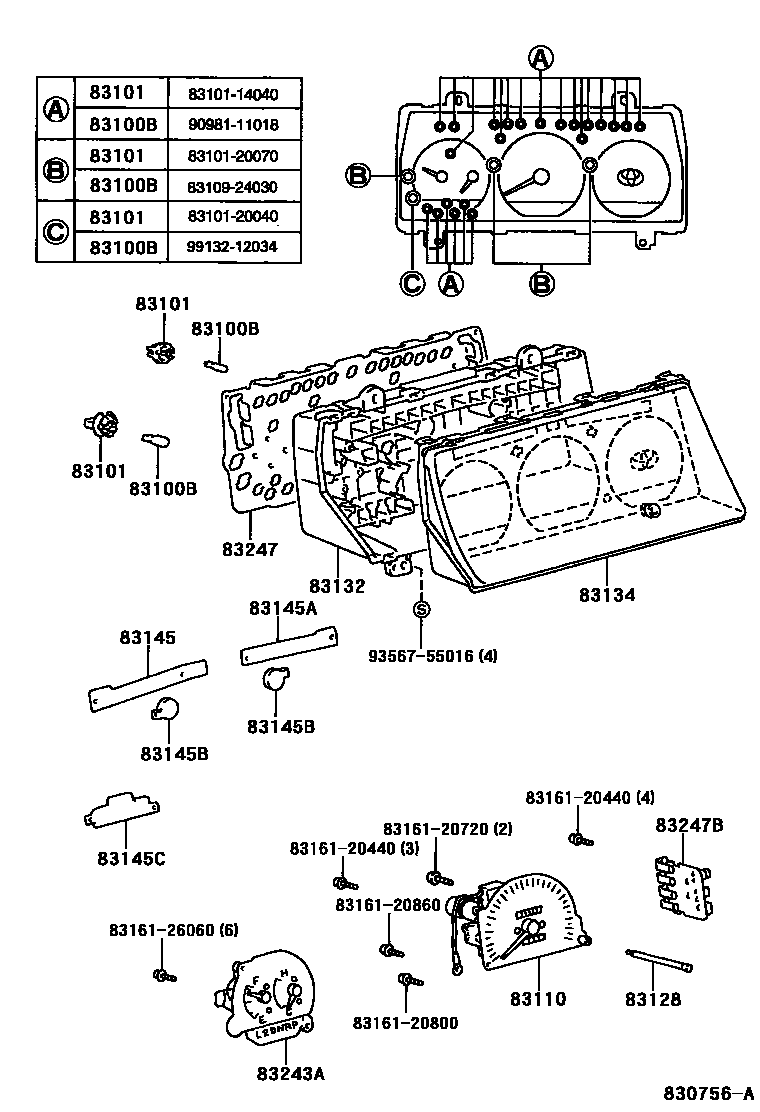

83100METER ASSY, COMBINATION

main83800-26D10iKLH18..SG200808-200904

W(SPEED METER---KM)

main83800-26D11iKLH1#,2#200905-201009

main83800-26D12iKLH1#,2#201010

main83800-26D20iKLH12,22..RHD200808-200904

W(SPEED METER---MILE/KM)

main83800-26D21iKLH12,22..RHD200905-201009

W(SPEED METER---MILE/KM)

main83800-26D22iKLH12,22..RHD201010

W(SPEED METER---MILE/KM)

83100BBULB, COMBINATION METER, NO.1

main83109-24030iLXH1#,RCH1#199508-199708

12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

main83120-60020×15iKLH1#,2#..MTM..(DX,STD)200108-200608

12V 1.4W,W(SOCKET)

main90010-06006iKLH1#,2#199907-200608

12V3.4W,W(GREEN CAP)

main90010-06007iRCH1#,2#200108-200605

12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION

main90981-11018iLXH2#,RCH2#199703-199708

12V 1.2W W/O SOCKET

main99132-12034iLXH1#,2#,RCH1#,2#199508-199804

12V 3.4W,TYPE C:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×17iLXH12,22..ATM199708-199804

TYPE A:REFER TO ILLUSTRATION

main83101-20040iLXH1#,2#,RCH1#,2#199508-199804

TYPE C:REFER TO ILLUSTRATION

main83101-20070×4iLXH1#,2#,RCH1#,2#199508-199804

TYPE B:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-26010iLXH12,22..LHD..DSL199508-199804

main83220-26020iLXH12,22..RHD199508-199804

main83220-26030iLXH1#,2#..TD199508-199804

main83220-26040iRCH1#,2#..LHD199508-199804

main83220-26050iRCH12..RHD..EUR199508-199804

main83220-26060iRCH12,22199907-200108

main83220-26061iRCH12,22200108-200311

main83220-26180iRCH13,19,2#..LHD..(03S,06S,09S)199804-199907

main83220-26190iRCH13..RHD199804-199910

main83220-26220iLXH22..LHD..DSL;LXH22..RHD..4DV;LXH12..LHD..DX..DSL;LXH12..LHD..5DV..DSL;LXH12..4DV..STD..DSL199907-200108

KM/H

main83220-26230iLXH12,22..RHD199804-199907

MPH & KM/H

main83220-26240iLXH1#,2#..TD199907-200108

main83220-26250iRCH13,19..GL199907-200108

W(TACHOMETER)

main83220-26260iRCH13..RHD199804-199910

W(TACHOMETER)

main83220-26330iKLH12,22..DCR200108-200608

KM/H

main83220-26340iKLH12,22..RHD..HDCR200405-200608

KM/H

main83220-26350iKLH12,22..RHD..DCR200608-200808

MILE/H+KM/H

main83220-26360iKLH12,22..RHD200608-200808

MILE/H+KM/H & W(TACHOMETER)

main83220-26370iRCH13..RHD200405-200605

KM/H

main83220-26380iRCH13,19,23,29..LHD200108-200605

W(TACHOMETER)

main83220-26390iRCH13..RHD200108-200605

main83220-26400iRCH13..RHD200108-200605

W(TACHOMETER)

main83220-26410iKLH12,22..ATM200405-200608

83128KNOB, TRIP COUNTER

main83128-22480iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

main83224-26380iKLH12,22..ATM200405-200608

83132CASE, COMBINATION METER

main83841-26010iLXH1#,2#,RCH1#,2#199907-200108

main83841-26530iKLH12,22..DCR200608-200808

main83841-26600iRCH13,19,23,29200108-200605

W(TACHOMETER)

83134COVER, COMBINATION METER, NO.1

main83821-26010iLXH12,22,RCH13,19,23,29..MTM..(DX,STD)..(DSL,EFI)199912-200108

main83821-26030iRCH13..LHD..MTM..(DX,STD);LXH1#,2#,RCH19,23,29..MTM..(DX,STD)199907-199910

W(TACHOMETER)

main83821-26040iRCH12,13..ATM199508-199907

main83821-26050iLXH12,22,RCH13..ATM..(DX,STD)199907-199910

W(TACHOMETER)

main83821-26830iLXH12,22,RCH13,19,23,29..MTM..(DX,STD)..(DSL,EFI)199910-199912

main83821-26850iLXH1#,2#,RCH1#,2#..MTM199910-199912

W(TACHOMETER)

main83821-26880iKLH1#,2#..MTM200108-200608

W(OIL CHANGE RESET SWITCH)

main83821-2F060iRCH13..ATM199910-199912

main83821-2F340iLXH12,22,RCH13..ATM199910-199912

W(TACHOMETER)

main83821-2F341iKLH12,22..ATM200108-200608

main83822-26280iRCH12,19,2#..DX,STD;RCH13..LHD..(DX,STD)200108-200605

83145LENS, METER, NO.1

main83831-26010iLXH1#,2#,RCH13,19,23,29199907-200108

main83831-2F210iRCH12199804-199907

main83831-2F211iRCH12,22200108-200311

main83831-2F340iKLH12,22..ATM200108-200404

83145ALENS, METER, NO.2

main83145-26260iRCH12..ARL199508-199804

main83831-26090iRCH1#,23,29..03S,05S,06S,09S199804-199910

main83832-26010iLXH1#,2#199907-200108

main83832-2F340iRCH12,22200108-200311

83145BLENS, METER, NO.3

main83833-26010×2iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

83145CLENS, METER, NO.4

main83145-26380iRCH13..ATM199907-200108

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-26010iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-199910

main83882-26040iLXH12,22,RCH12,13..ATM199508-199907

main83882-26530iRCH12,22200108-200311

main83882-2F340iKLH12,22..ATM200405-200608

83247PLATE, METER CIRCUIT

main83861-26010iLXH12,22..DSL199508-199907

main83861-26070iLXH1#,2#..MTM..TD199508-199804

main83861-26080iLXH12,22..ATM199508-199804

main83861-26090iRCH13,19,23,29..MTM199907-200108

main83861-26110iRCH13..ATM199907-200108

main83861-26140iRCH12..ARL199508-199907

main83861-26840iKLH12,22..DCR200608-200808

main83861-26880iLXH1#,2#..MTM..TD199907-200108

main83861-26881iKLH1#,2#..DX,STD200608-200808

W(TACHOMETER)

main83861-26890iKLH12..GL;KLH12,22..RHD200608-200808

W(DOOR WARNING & TACHOMETER)

main83861-2F010iLXH12,22..ATM199804-199907

main83861-2F011iKLH12,22..ATM..(DX,STD)200108-200405

main83861-2F012iKLH12,22..ATM..(DX,STD)200405-200608

main83861-2F020iRCH13,19,23,29..DX,STD200108-200605

main83861-2F040iRCH13,19,23,29..DX,STD200108-200605

W(TACHOMETER)

main83861-2F050iRCH13,19..GL200108-200605

main83861-2F210iRCH12,22200108-200311

main83861-2F340iKLH12..ATM..GL200108-200405

main83861-2F341iKLH12..ATM..GL200405-200608

83247BPLATE, METER CIRCUIT, NO.2

main83149-26860iLXH1#,2#,RCH1#,2#199508-199804

main83149-2F070iLXH1#,2#,RCH1#,23,29..03S,05S,06S,09S199804-199910

main83862-2F340iKLH12,22..ATM200108-200404

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

8316120860CASE, COMBINATION METER MIRROR, NO.1

main83161-20860

8316126060CASE, COMBINATION METER MIRROR, NO.1

main83161-26060

9356755016

main93567-55016

20 parts on this diagram · 11 diagrams in section
