BATTERY CARRIER

74411CARRIER, BATTERY

main74411-26100iLXH12..ATM..STD199508-200108

COLD AREA SPEC

main74411-26100iRCH12,22199508-200608

74412BRACKET, BATTERY, REAR

main74403-26010iLXH12..4DV..STD;LXH1#..LHD..5DV..MTM;LXH12..LHD..(03S,09S)..DX199508-200108

COLD AREA SPEC

main74403-26010iKLH1#,2#199907-200608

74413BOLT, BATTERY CLAMP

main74451-26020iRCH13..ATM;LXH1#,2#..MTM199508-200108

COLD SPEC

main74451-26020iRCH13..ATM;LXH1#,2#..MTM199508-200608

COLD AREA SPEC

main74451-26020iRCH12,22199508-200605

74422AHANDLE, BATTERY CARRIER PULL

main74422-26010iLXH12..MTM..(DX,STD);LXH18,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

main74422-26010iLXH12..ATM199508-200108

COLD AREA SPEC

74431TRAY, BATTERY

main74431-10060iLXH12,22..ATM199508-200108

main74431-89110iLXH12..LHD..DX;LXH12..4DV..STD;LXH1#..LHD..5DV199508-200108

COLD AREA SPEC

main74431-89110iLXH2#;LXH12..GL;LXH12..RHD..DX;LXH12..RHD..5DV199508-200108

COLD SPEC

main74431-89110iKLH1#,2#200108-200608

74481CLAMP, BATTERY HOLD DOWN

main74481-26010iLXH12..ATM..GL199508-200108

COLD AREA SPEC

main74481-26010iLXH12..MTM..(DX,STD);LXH18,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

main74481-26010iLXH22;RCH13..ATM;LXH1#,28..MTM199907-200108

COLD SPEC

main74481-26020iLXH12,22..ATM..STD199508-200108

COLD SPEC

74481ACLAMP, BATTERY

main74481-26020iKLH1#,2#199907-200608

main74481-26020iLXH2#;LXH12..05S;LXH12..RHD..DX;LXH12..RHD..5DV199508-200108

COLD AREA SPEC

9017906146

main90179-06146

9017906206

main90179-06206

9017908174

main90179-08174

91631B0820

main91631-B0820

91651B0820

main91651-B0820

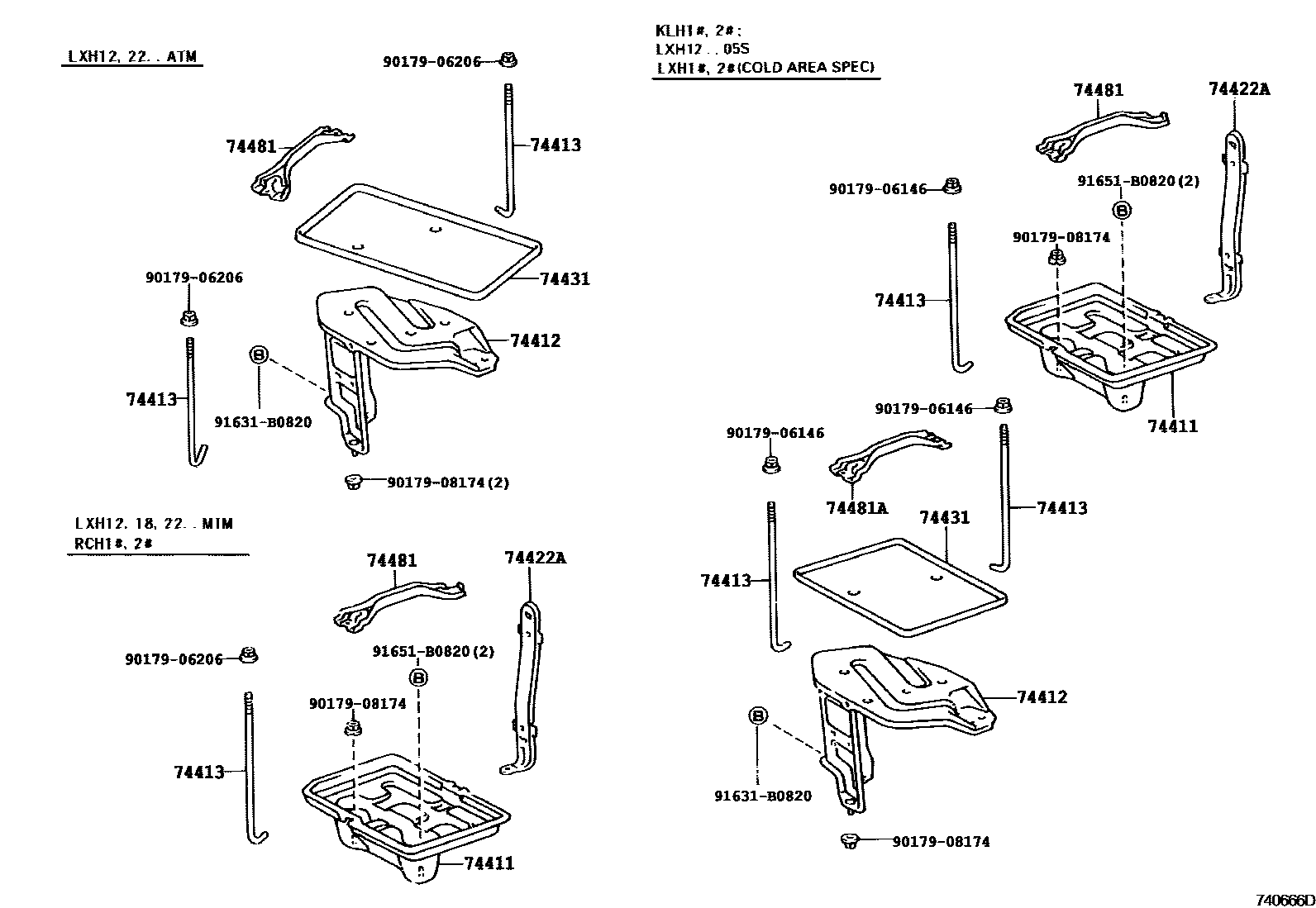

12 parts on this diagram · 1 diagram in section
