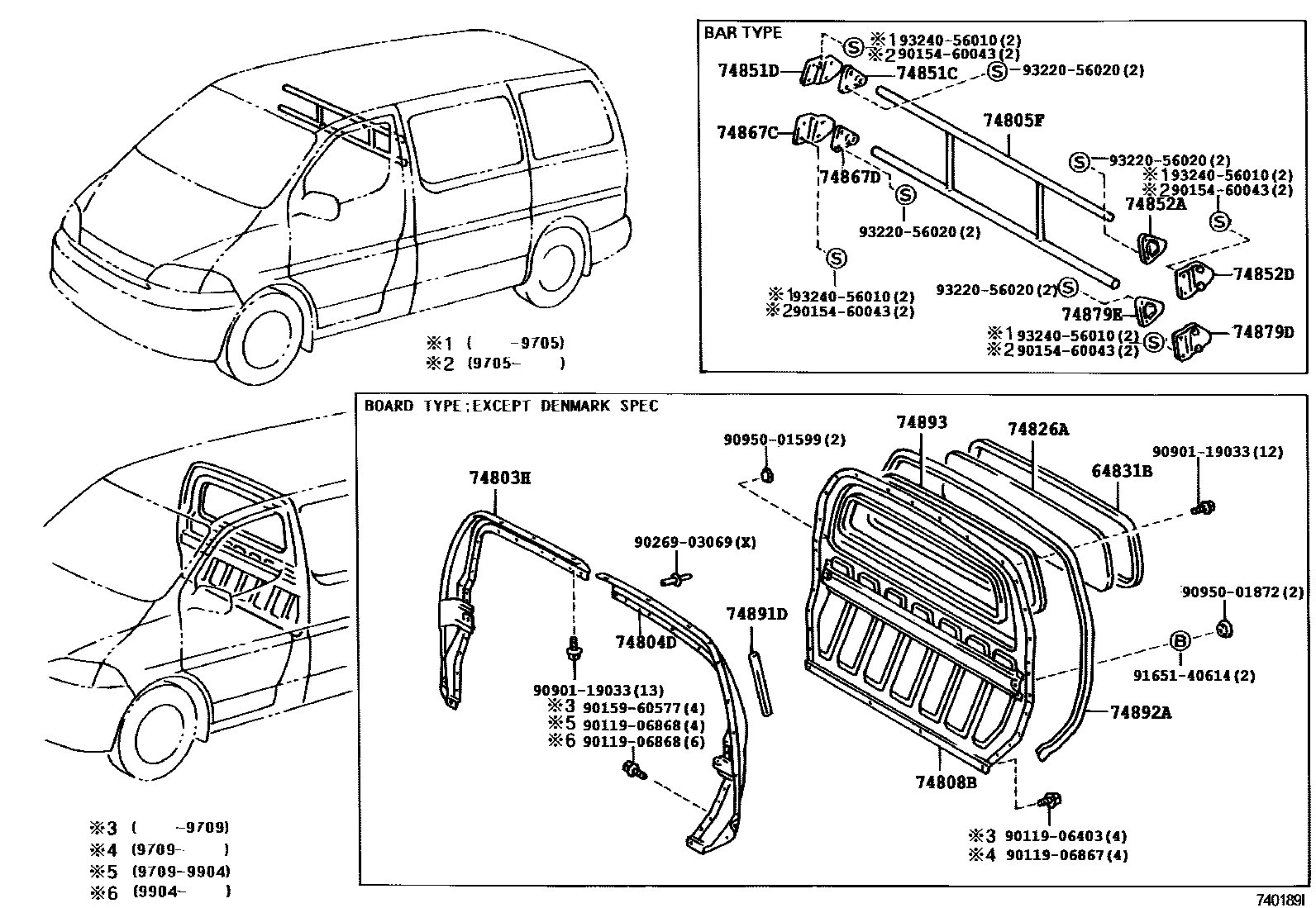

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1DENMARK SPEC 0003 1 0004 1 0005 1SEPARATE BAR 0006 1

64831BWEATHERSTRIP, BACK WINDOW GLASS

main64831-26010iLXH12,RCH12..LHD..4DV..03S..(EFI,TD)199508-200108

DENMARK SPEC OR NORWAY SPEC

sub64831-26011

main64831-26010iLXH12,RCH12..LHD..4DV..03S..(EFI,TD)199508-200108

DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub64831-26011

main64831-26010iLXH12..LHD..SP..DSL;LXH12,RCH12..5DV..MTM..(EFI,TD)199508-200108

DENMARK SPEC OR AUSTRIA SPEC

sub64831-26011

main64831-26010iLXH18199608-200108

DENMARK SPEC OR FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub64831-26011

main64831-26010iRCH19..STD;LXH12..06S;LXH12..RHD..STD;LXH2#,RCH13,23,29..03S199703-200702

sub64831-26011

main64831-26010iRCH18..03S199608-199804

FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC OR SWITZERLAND SPEC

sub64831-26011

main64831-26010iRCH12..03S..ATM199508-199804

NORWAY SPEC

sub64831-26011

main64831-26011iKLH1#,2#..03S..STD200703-201010

74803HPANEL SUB-ASSY, SEPARATOR BOARD, RH

main74803-26022iKLH1#,22..06S200808-201010

main74803-26062iKLH12,22..RHD..4DV..STD200808

main74803-26900iLXH12..ATM199508-199903

DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iLXH2#,RCH2#..LHD..STD199703-199903

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iRCH12..03S..ATM199508-199804

NORWAY SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iRCH18..03S199608-199804

FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC OR SWITZERLAND SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iLXH12..06S;LXH2#..LHD..STD199705-199804

DENMARK SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iLXH12..06S;LXH2#..LHD..STD199705-199804

FINLAND SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iLXH12..06S;LXH2#..LHD..STD199705-199804

HUNGARY SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iLXH12..ATM199508-199903

DENMARK SPEC OR NORWAY SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iLXH12..ATM199508-199903

DENMARK SPEC OR AUSTRIA SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26900iLXH18199608-199903

DENMARK SPEC OR FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub74803-26903

sub90119-06868

sub90179-06313

main74803-26901iLXH12,22,RCH13..RHD..4DV..STD199804-199903

sub74803-26904

sub90119-06868

sub90179-06313

main74803-26903iLXH1#,2#..5DV;RCH13..03S..ATM;LXH12,22..LHD..4DV..SP199708-200402

sub74803-26907

main74803-26904iKLH12,22,RCH13..RHD..4DV..STD199903-200808

sub74803-26908

main74803-26907iKLH1#,2#..5DV;KLH12,22..LHD..4DV..STD200402-200808

main74803-26908iKLH12,22..RHD..4DV..STD200402-200608

74804DPANEL SUB-ASSY, SEPARATOR BOARD, LH

main74804-26012iKLH1#,2#..5DV..03S;KLH12,22..RHD..4DV..STD200808-201010

main74804-26022iKLH12,22..LHD..4DV..03S200808-201010

main74804-26900iRCH22..4DV..STD199705-199804

HUNGARY SPEC

sub74804-26902

sub90119-06868

sub90179-06313

main74804-26900iRCH18..06S199705-199804

FINLAND SPEC

sub74804-26902

sub90119-06868

sub90179-06313

main74804-26900iRCH19..06S;LXH12..RHD..4DV..STD;LXH22,RCH13,23..4DV..03S199703-199903

sub74804-26902

sub90119-06868

sub90179-06313

main74804-26900iLXH12,RCH12..LHD..4DV..03S..(EFI,TD)199508-199903

DENMARK SPEC OR AUSTRIA SPEC

sub74804-26902

sub90119-06868

sub90179-06313

main74804-26900iLXH12,RCH12..LHD..4DV..03S..(EFI,TD)199508-199903

DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub74804-26902

sub90119-06868

sub90179-06313

main74804-26901iLXH12..06S;LXH2#..5DV199705-199804

FINLAND SPEC

sub74804-26903

sub90119-06868

sub90179-06313

main74804-26901iRCH12..03S..ATM199508-199804

NORWAY SPEC

sub74804-26903

sub90119-06868

sub90179-06313

main74804-26901iLXH2#,RCH2#..5DV199703-199903

sub74804-26903

sub90119-06868

sub90179-06313

main74804-26901iRCH18..03S199608-199804

FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC OR SWITZERLAND SPEC

sub74804-26903

sub90119-06868

sub90179-06313

main74804-26901iLXH12..ATM199508-199903

DENMARK SPEC OR NORWAY SPEC

sub74804-26903

sub90119-06868

sub90179-06313

main74804-26901iLXH12..ATM199508-199903

DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub74804-26903

sub90119-06868

sub90179-06313

main74804-26901iLXH18199608-199903

DENMARK SPEC OR FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub74804-26903

sub90119-06868

sub90179-06313

main74804-26902iLXH12,22..LHD..4DV..SP199708-200402

sub74804-26906

main74804-26903iRCH13..RHD199708-200808

sub74804-26907

main74804-26906iKLH12,22..LHD..4DV..STD200402-200808

main74804-26907iKLH12..06S;KLH12,22..RHD..5DV200402-200608

DENMARK SPEC

74805FBAR SUB-ASSY, SEPARATOR, A

main74805-26030-B0iLXH12,22..5DV..03S..MTM199508-199708

GRAY,TRIM1#

main74805-26070-B0iKLH22..06S199804-201010

BLUISH GRAY,TRIM1#

main74805-26070-B1iKLH22..06S201010-201111

DK.GRAY,TRIM1#

main74805-26100iLXH22..LHD..STD;LXH1#,28,RCH12,22..LHD..SP..MTM199703-200309

sub74805-26101

main74805-26101iRCH13,19,23..LHD..03S199907-200808

sub74805-26102

main74805-26102iKLH1#,2#..LHD..03S200808-201111

main74805-26120iKLH1#,2#,RCH13,19,23..LHD..03S200210-200304

sub74805-26102

main74810-26030-B0iLXH12,RCH1#..06S199508-199804

BLUISH GRAY,TRIM1#

74808BBOARD SUB-ASSY, SEPARATOR

main74805-26040iLXH12,RCH12..05S199508-199804

main74808-26012iKLH1#,22..06S200808-201010

main74808-26032iKLH1#,2#..LHD..03S200808

DENMARK SPEC

main74808-26900iLXH12..LHD..SP..DSL;LXH12,RCH12..5DV..MTM..(EFI,TD)199508-199903

DENMARK SPEC OR NORWAY SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iRCH22..4DV..STD199508-199705

DENMARK SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iLXH2#,RCH2#..LHD..STD199703-199903

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iRCH12..03S..ATM199508-199804

NORWAY SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iRCH18..03S199608-199804

FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC OR SWITZERLAND SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iLXH12..06S;LXH2#..LHD..STD199705-199804

FINLAND SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iLXH12..06S;LXH2#..LHD..STD199705-199804

HUNGARY SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iLXH12..ATM199508-199903

DENMARK SPEC OR AUSTRIA SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iLXH12..ATM199508-199903

DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26900iLXH18199608-199903

DENMARK SPEC OR FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC

sub74808-26902

sub90119-06868

sub90179-06313

main74808-26901iLXH22..LHD..03S;LXH1#,28,RCH12,22..LHD..SP..MTM199705-199903

DENMARK SPEC

sub74808-26903

sub90119-06868

sub90179-06313

main74808-26901iLXH12..ATM;RCH13,19,23..LHD..03S..MTM199708-199903

W(SEPARATE BOARD)

sub74808-26903

sub90119-06868

sub90179-06313

main74808-26902iRCH13,23..06S199708-200402

sub74808-26906

main74808-26903iRCH13..5DV..MTM;KLH1#,2#,RCH19,23..LHD..5DV..03S199903-200808

DENMARK SPEC

sub74808-26907

main74808-26906iKLH1#,2#..5DV;KLH12,22..LHD..4DV..STD199907-200808

main74808-26907iRCH1#,23..LHD..03S200402-200608

DENMARK SPEC

74826AWINDOW, SEPARATOR

main74826-26020iLXH12..LHD..SP..DSL;LXH12,RCH12..5DV..MTM..(EFI,TD)199508-200108

DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC

main74826-26020iLXH18199608-200108

DENMARK SPEC OR FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC

main74826-26020iRCH19..STD;LXH12..06S;LXH12..RHD..STD;LXH2#,RCH13,23,29..03S199703-201010

main74826-26020iLXH2#..03S;LXH12..06S;LXH12..RHD..STD;RCH13..03S..ATM199508-200108

DENMARK SPEC OR NORWAY SPEC

main74826-26020iLXH2#..03S;LXH12..06S;LXH12..RHD..STD;RCH13..03S..ATM199508-200108

DENMARK SPEC OR AUSTRIA SPEC

main74826-26020iRCH12..03S..ATM199508-199804

NORWAY SPEC

main74826-26020iRCH18..03S199608-199804

FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC OR SWITZERLAND SPEC

main74826-26030iLXH12,RCH12..05S199508-199804

74851CBRACKET, SEPARATOR, UPPER RH

main74851-95J05-B0iLXH12..5DV..MTM;RCH12..LHD..STD199508-199804

BLUISH GRAY,TRIM1#

sub74851-95J05

74851DBRACKET, SEPARATOR BAR, UPPER RH

main74851-26020-B0iRCH12..LHD..03S;LXH12..5DV..03S..MTM199508-199708

BLUISH GRAY,TRIM1#

main74851-26020-B0iLXH12,RCH1#..06S199508-199804

BLUISH GRAY,TRIM1#,FRONT

main74851-95J01-B0iLXH12,RCH1#..06S199508-199804

BLUISH GRAY,TRIM1#,REAR

sub74851-95J01

main74851-95J01-B0iLXH22,RCH13,19,23..06S199804-201010

BLUISH GRAY,TRIM1#

sub74851-95J01

main74851-95J01-B3iKLH22..06S201010-201111

DK.GRAY,TRIM1#

sub74851-95J01

74852BRACKET, SEPARATOR, RH

main74852-95J00-B0iLXH12,RCH1#..06S199508-199804

BLUISH GRAY,TRIM1#

sub74852-95J00

74852ABRACKET, SEPARATOR, UPPER LH

main74852-95J05-B0iRCH1#..06S;LXH12,22..5DV..MTM199508-199804

BLUISH GRAY,TRIM1#

sub74852-95J05

74852DBRACKET, SEPARATOR BAR, UPPER LH

main74852-2F020-B0iRCH1#..06S;LXH12..5DV..MTM199508-199804

BLUISH GRAY,TRIM1#

main74852-95J00-B0iLXH22,RCH13,19,23..06S199804-201010

BLUISH GRAY,TRIM1#

sub74852-95J00

main74852-95J00-B3iKLH22..06S201010-201111

DK.GRAY,TRIM1#

sub74852-95J00

74867CBRACKET, SEPARATOR BAR, LOWER

main74867-26010-B0iRCH1#..06S;LXH12..5DV..MTM199508-199804

BLUISH GRAY,TRIM1#

74867DBRACKET, SEPARATOR BAR, LOWER

main74867-95J00-B0iRCH13,19,23..06S..MTM199804-201010

BLUISH GRAY,TRIM1#

sub74867-95J00

main74867-95J00-B3iKLH22..06S201010-201111

DK.GRAY,TRIM1#

sub74867-95J00

main74867-95J03-B0iLXH12..5DV..MTM;RCH12..LHD..STD199508-199804

BLUISH GRAY,TRIM1#

sub74867-95J03

74879DBRACKET, SEPARATOR BAR, LOWER LH

main74879-26010-B0iLXH12,RCH1#..06S199508-199804

BLUISH GRAY,TRIM1#

74879EBRACKET, SEPARATOR BAR, LOWER LH

main74879-95J02-B0iRCH1#..06S;LXH12..5DV..MTM199508-199804

BLUISH GRAY,TRIM1#

sub74879-95J02

74891DPROTECTOR, SEPARATOR BOARD, NO.1

main74867-26070iKLH1#,2#..STD199808-200808

main74867-26140iKLH1#,22..06S200808-201010

main74891-26010iLXH12..ATM199508-199808

DENMARK SPEC OR AUSTRIA SPEC

main74891-26010iLXH12..ATM199508-199808

DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC

main74891-26010iLXH12,RCH12..LHD..4DV..03S..(EFI,TD)199508-199808

DENMARK SPEC OR NORWAY SPEC

main74891-26010iLXH18199608-199808

DENMARK SPEC OR FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC

main74891-26010iRCH19..STD;LXH12..06S;LXH12..RHD..STD;LXH2#,RCH13,2#..03S199703-199808

main74891-26010iRCH12..03S..ATM199508-199804

NORWAY SPEC

main74891-26010iRCH18..03S199608-199804

FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC OR SWITZERLAND SPEC

74892ACOVER, SEPARATOR BAR, NO.2

main74892-26020iLXH18199608-200108

DENMARK SPEC OR FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC

main74892-26020iLXH2#..03S;LXH12..06S;LXH12..RHD..STD;RCH13..03S..ATM199508-200108

DENMARK SPEC OR NORWAY SPEC

main74892-26020iLXH2#..03S;LXH12..06S;LXH12..RHD..STD;RCH13..03S..ATM199508-200108

DENMARK SPEC OR AUSTRIA SPEC

main74892-26020iLXH2#..03S;LXH12..06S;LXH12..RHD..STD;RCH13..03S..ATM199508-200108

DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC

main74892-26020iRCH19,29..STD;RCH13,23..03S..MTM199703-201010

main74892-26020iRCH12..03S..ATM199508-199804

NORWAY SPEC

main74892-26020iRCH18..03S199608-199804

FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC OR SWITZERLAND SPEC

74893PROTECTOR,SEPARATOR

main74893-26030iLXH22..LHD..STD;LXH1#,28,RCH12,22..LHD..SP..MTM199703-200309

sub74893-26031

main74893-26031iRCH13,19,23..LHD..03S200309-200808

main74893-26040iKLH1#,2#..LHD..03S200808

9011906403

main90119-06403

9011906867

main90119-06867

9011906868

main90119-06868

9015460043

main90154-60043

9015960577

main90159-60577

9026903069

main90269-03069

9090119033

main90901-19033

9095001599

main90950-01599

9095001872

main90950-01872

9165140614

main91651-40614

9322056020

main93220-56020

9324056010

main93240-56010

30 parts on this diagram · 6 diagrams in section
