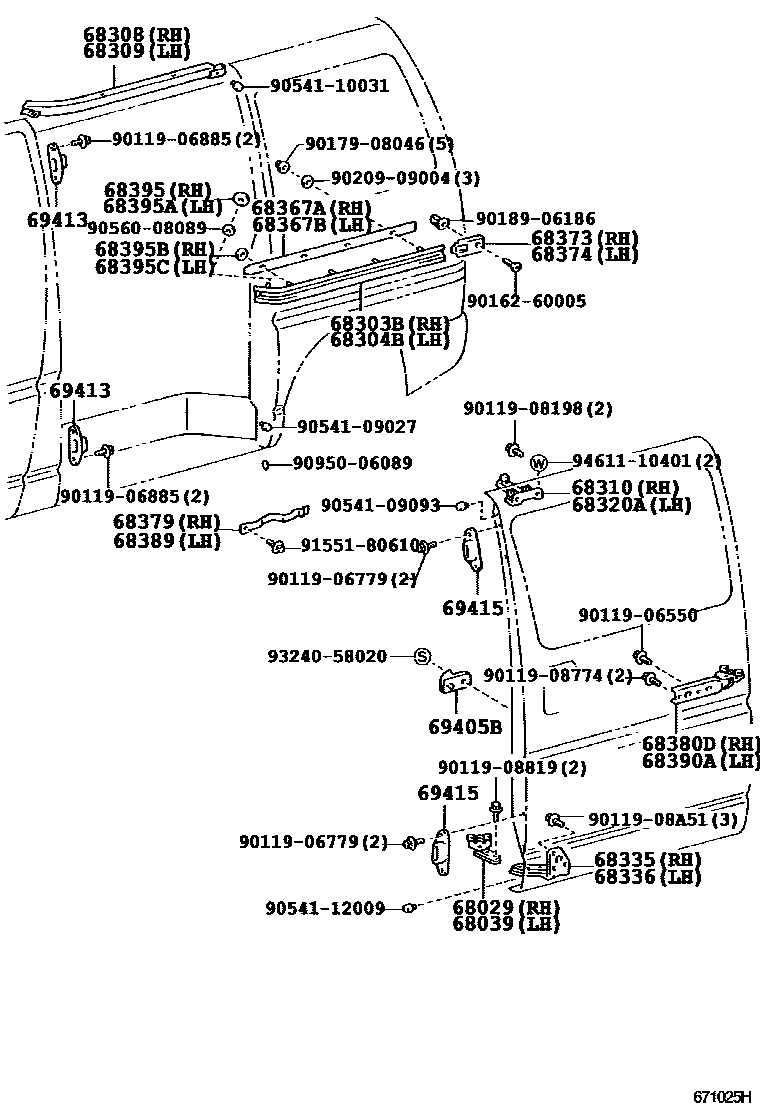

SLIDE ROLLER & RAIL

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-26030iRCH13,19,23,29..LHD..MTM199508-200807

sub68029-26080

main68029-26080iKLH12..5DV;KLH18,2#..LHD;KLH12..LHD..4DV200808

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-26010iLXH1#,2#,RCH1#,2#..LHD..5DV;LXH12,22,RCH12,13..RHD..03S199508-200807

sub68039-26070

main68039-26070iKLH1#,2#..5DV;KLH12,22..RHD..4DV200808

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-26010iKLH18;KLH12..5DV;KLH12..LHD..4DV199508-201111

main68303-26030iLXH22..RHD..5DV;LXH2#,RCH2#..LHD199703-201111

main68303-26040-B0iKLH12,RCH13,19..LHD..(DX,GL)200108-200608

SILVER ME,199

sub68303-26040

main68303-26040-B2iKLH18;KLH12..5DV;KLH12..LHD..4DV200405-201111

SILVER M.M.,1E7

sub68303-26040

main68303-26040-C0iKLH18;KLH12..5DV;KLH12..LHD..4DV200804-201111

BLACK MC.,209

sub68303-26040

main68303-26040-G0iKLH12,RCH13,19..LHD..(DX,GL)200108-200608

DK. GREEN M.M.,6P2

sub68303-26040

main68303-26040-G1iKLH12,RCH1#..LHD..(DX,GL)200405-201111

DK.GREEN M.M.,6S3

sub68303-26040

main68303-26040-J0iKLH12,RCH13,19..GL200108-200608

DK.BLUE MC.,8K8

sub68303-26040

main68303-26040-J1iKLH18;KLH12..5DV;KLH12..LHD..4DV200405-201111

DK.BLUE M.M.,8P4

sub68303-26040

main68303-26090-B0iKLH22,RCH23..DX200108-200608

SILVER ME.,199

main68303-26090-B1iKLH2#..LHD200405-201111

SILVER M.M.,1E7

main68303-26090-C0iKLH2#..LHD200808-201111

BLACK MC.,209

main68303-26090-G0iKLH22,RCH23..DX200108-200608

DK. GREEN M.M.,6P2

main68303-26090-G1iKLH22,RCH23..DX200405-201111

DK.GREEN M.M.,6S3

main68303-26090-J1iKLH2#..LHD200608-201111

DK.BLUE M.M.,8P4

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-26010iKLH1#..5DV;KLH12..RHD..4DV199508-201111

main68304-26020-B3iKLH1#..5DV;KLH12..RHD..4DV200804-201111

SILVER M.M.,1E7

sub68304-26020

main68304-26020-C0iKLH1#..5DV;KLH12..RHD..4DV200804-201111

BLACK MC.,209

sub68304-26020

main68304-26020-G2iKLH1#..5DV;KLH12..RHD..4DV200804-201111

DK.GREEN M.M.,6S3

sub68304-26020

main68304-26020-J1iKLH1#..5DV;KLH12..RHD..4DV200804-201111

DK.BLUE M.M.,8P4

sub68304-26020

main68304-26060iKLH2#..5DV;KLH22..RHD199703-201111

main68304-26100-B1iKLH2#..5DV;KLH22..RHD200608-201111

SILVER M.M.,1E7

sub68304-26100

main68304-26100-C0iKLH2#..5DV;KLH22..RHD200808-201111

BLACK MC.,209

sub68304-26100

main68304-26100-G0iKLH2#..5DV;KLH22..RHD200608-201111

DK.GREEN M.M.,6S3

sub68304-26100

main68304-26100-J1iKLH2#..5DV;KLH22..RHD200608-201111

DK.BLUE M.M.,8P4

sub68304-26100

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-26020iKLH1#,2#..5DV;KLH12,22..LHD..4DV199508-201111

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-26020iKLH1#,2#..5DV;KLH12,22..RHD..4DV199508-201111

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-26020iRCH13..ATM;LXH22..5DV;LXH1#,28..LHD;LXH12..RHD..5DV;LXH22..LHD..4DV199508-200608

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-26010iLXH1#,2#,RCH1#,2#..LHD..5DV;LXH12,22,RCH12,13..RHD..03S199508-200608

68335PAD, SLIDE DOOR UPPER RAIL

main68335-26020iKLH1#,2#..5DV;KLH12,22..LHD..4DV199508-200608

68336ARM, SLIDE DOOR LOWER ROLLER, LH

main68336-26030iLXH1#,2#,RCH1#,2#..LHD..5DV;LXH12,22,RCH12,13..RHD..03S199508-200608

68367APAD, SLIDE DOOR CENTER RAIL

main68367-26010iLXH1#,RCH1#..LHD199508-199705

sub68367-26020

main68367-26020iKLH18;KLH12..5DV;KLH12..LHD..4DV200608

main68367-26030iLXH22..RHD..5DV;LXH2#,RCH2#..LHD199703-200608

68367BPAD, SLIDE DOOR CENTER RAIL

main68367-26010iLXH1#,RCH1#..5DV;LXH12,RCH12..RHD199508-199705

sub68367-26020

main68367-26020iKLH1#,LXH1#,RCH1#199705-201111

main68367-26030iKLH2#..5DV;KLH22..RHD199703-201111

68373MOULDING, SLIDE RAIL END, RH

main68373-26010iLXH12,22..RHD..5DV;LXH1#,2#,RCH1#,2#..LHD199508-201111

main68373-26030-B0iKLH12,22,RCH13,19,23..LHD..(DX,GL)200108-200608

SILVER ME,199

sub68373-26030

main68373-26030-B2iKLH12..5DV;KLH18,2#..LHD;KLH12..LHD..4DV200405-201111

SILVER M.M.,1E7

sub68373-26030

main68373-26030-C0iKLH2#..LHD200804-201111

BLACK MC.,209

sub68373-26030

main68373-26030-G0iKLH12,22,RCH13,19,23..LHD..(DX,GL)200108-200608

DK. GREEN M.M.,6P2

sub68373-26030

main68373-26030-G1iKLH12,22,RCH1#,23..LHD..(DX,GL)200405-201111

DK.GREEN M.M.,6S3

sub68373-26030

main68373-26030-J0iKLH12,RCH13,19..GL200108-200608

DK.BLUE MC.,8K8

sub68373-26030

main68373-26030-J1iKLH12,RCH1#..GL200405-201111

DK.BLUE M.M.,8P4

sub68373-26030

68374MOULDING, SLIDE RAIL END, LH

main68374-26010iLXH12..RHD;LXH12..LHD..5DV;KLH12,22,LXH22,RCH13,23..5DV;KLH12,22,LXH22,RCH13..RHD..4DV;KLH18,28,LXH18,28,RCH12,19,22,29..SP199508-201111

main68374-26020-B3iKLH1#,2#..5DV;KLH12,22..RHD..4DV200608-201111

SILVER M.M.,1E7

sub68374-26020

main68374-26020-C0iKLH1#,2#..5DV;KLH12,22..RHD..4DV200808-201111

BLACK MC.,209

sub68374-26020

main68374-26020-G2iKLH1#,2#..5DV;KLH12,22..RHD..4DV200608-201111

DK.GREEN M.M.,6S3

sub68374-26020

main68374-26020-J0iKLH1#,2#..5DV;KLH12,22..RHD..4DV200608-201111

DK.BLUE M.M.,8P4

sub68374-26020

68379SPRING, SLIDE DOOR CATCH, RH

main68379-26010iLXH12,22..RHD..5DV;LXH1#,2#,RCH1#,2#..LHD199508-199907

sub68379-26011

main68379-26020iKLH1#,2#199907-201111

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-26010iRCH13..ATM;LXH22..5DV;LXH1#,28..LHD;LXH12..RHD..5DV;LXH22..LHD..4DV199508-200608

68389SPRING, SLIDE DOOR CATCH, LH

main68389-26010iLXH12,22,RCH12,13..RHD;LXH1#,2#,RCH1#,2#..LHD..5DV199508-199910

sub68389-26040

main68389-26050iLXH12..RHD;LXH12..LHD..5DV;KLH12,22,LXH22,RCH13,23..5DV;KLH12,22,LXH22,RCH13..RHD..4DV;KLH18,28,LXH18,28,RCH12,19,22,29..SP199907-201111

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-26020iLXH1#,2#,RCH1#,2#..LHD..5DV;LXH12,22,RCH12,13..RHD..03S199508-200608

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-26010iLXH12,22..RHD..5DV;LXH1#,2#,RCH1#,2#..LHD199508-201111

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-26010iLXH1#,2#,RCH1#,2#..LHD..5DV;LXH12,22,RCH12,13..RHD..03S199508-201111

68395BPACKING, SLIDE DOOR CENTER RAIL

main68395-95J00iLXH12,RCH12..LHD199508-201111

68395CPACKING, SLIDE DOOR CENTER RAIL

main68395-95J00iLXH12,RCH12..RHD;LXH12,RCH12..5DV199508-201111

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-26010iLXH1#,2#,RCH1#,2#..5DV199508-199910

main69405-26050iLXH12,22..4DV;RCH13..ATM..DX199907-200608

69413STOP, SLIDE DOOR DOWN MALE

main69416-26010iKLH1#,22..4DV199608-200608

main69416-95J01iLXH12,RCH12..5DV199508-199608

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-26010iLXH1#,2#,RCH1#,2#..5DV199508-200608

9011906550

main90119-06550

9011906779

main90119-06779

9011906885

main90119-06885

9011908198

main90119-08198

9011908774

main90119-08774

9011908819

main90119-08819

9011908A51

main90119-08A51

9016260005

main90162-60005

9017908046

main90179-08046

9018906186

main90189-06186

9020909004

main90209-09004

9054109027

main90541-09027

9054109093

main90541-09093

9054110031

main90541-10031

9054112009

main90541-12009

9056008089

main90560-08089

9095006089

main90950-06089

9155180610

main91551-80610

9324058020

main93240-58020

9461110401

main94611-10401

45 parts on this diagram · 1 diagram in section
