REAR DOOR PANEL & GLASS

0001 1DOOR TRIM 0002 1DOOR TRIM 0003 1DOOR PANEL

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67613-26010iLXH12..5DV;LXH22..RHD..5DV;LXH12..LHD..4DV..03S;LXH22,RCH12,13,23..LHD..03S;LXH18,28,RCH18,19,22,28,29..STD¥4,750199508-199907

main67613-26070iLXH12,22..5DV;RCH13,23..LHD..03S;LXH18,28,RCH19,29..STD;LXH12,22..LHD..4DV..03S¥4,750199907-200108

sub67613-26071¥4,730

main67613-26071iRCH13,19,23,29..LHD..STD¥4,730200108-201111

main67630-26070-B0iLXH22..06S;RCH1#,22,23..06S,09S199508-199907

BLUISH GRAY,TRIM1#

main67630-26090-B0iRCH12,13..05S199508-199907

BLUISH GRAY,TRIM1#

main67630-26140-B0iRCH13,19,23..SG..MTM..(DX,STD)199907-201010

BLUISH GRAY,TRIM1#

main67630-26140-B1iKLH1#,22..06S201010-201111

DK.GRAY,TRIM1#

main67630-26160-B0iLXH12..GL199907-200608

BLUISH GRAY,TRIM1#

main67630-26161-B1iKLH1#..GL200608-201010

BLUISH GRAY,TRIM1#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67614-26010iRCH13..RHD¥5,700199508-199910

main67614-26080iLXH22..RHD..4DV;LXH12,RCH13..RHD;LXH22,RCH13..5DV..03S;LXH12,RCH23..LHD..5DV;LXH18,28,RCH12,19,22,29..SP¥4,750199907-200108

sub67614-26081¥4,730

main67614-26081iRCH13..RHD;RCH13,19,23,29..5DV¥4,730200108-201111

main67640-26150-B0iLXH12,RCH13..5DV..06S199508-199907

BLUISH GRAY,TRIM1#

main67640-26390-B0iKLH12..06S199907-201010

BLUISH GRAY,TRIM1#

sub67640-26390¥6,100

main67640-26390-B2iKLH1#..06S201010-201111

DK.GRAY,TRIM1#

sub67640-26390¥6,100

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main67771-26090-E0iLXH1#,2#..5DV;RCH13..03S..ATM200011-201106

CREAM YELLOW,TRIM1#

main67771-26260-E0iKLH12,22..4DV201106-201111

CREAM YELLOW,TRIM1#

sub67771-26261¥100

main90467-08040-N8iLXH12,RCH12..5DV..03S199508-199601

CREAM YELLOW,TRIM1#

sub90467-08040¥130

main90467-09186-E0iLXH1#,2#,RCH1#,2#..5DV..03S199601-200011

CREAM YELLOW,TRIM1#

sub67771-26090¥130

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080¥160

6777126010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26010¥160

6777226030WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-26030¥80

6777226040WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-26040¥130

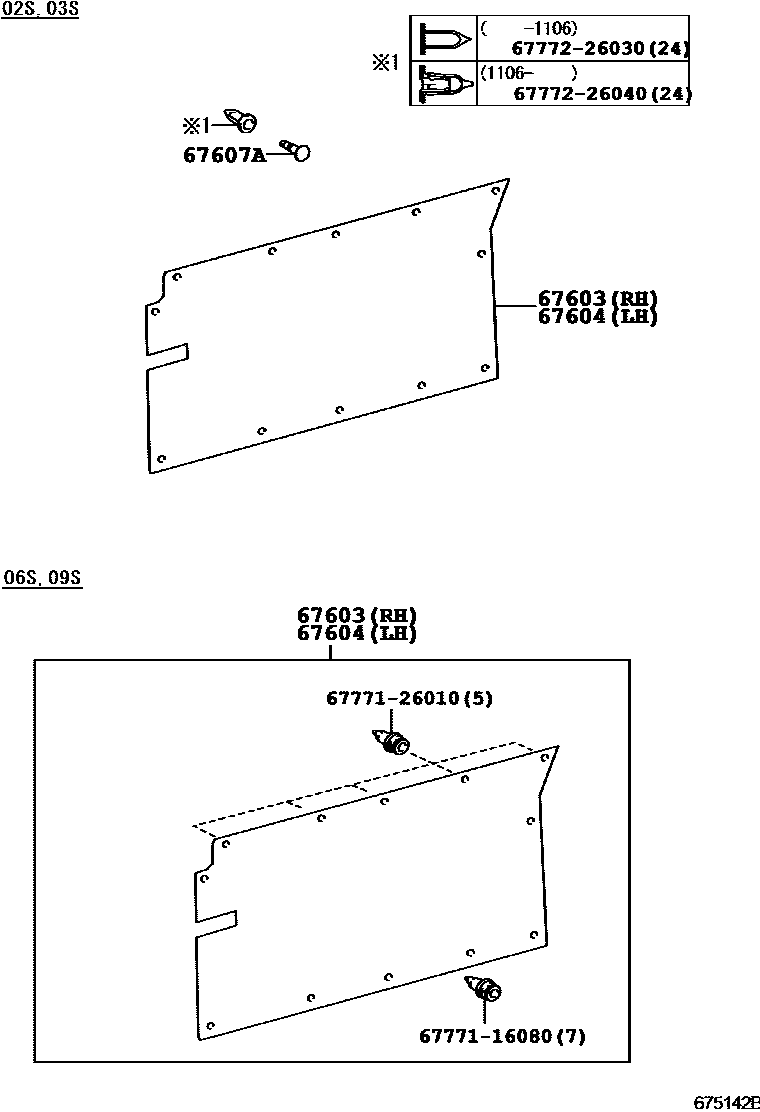

7 parts on this diagram · 3 diagrams in section
