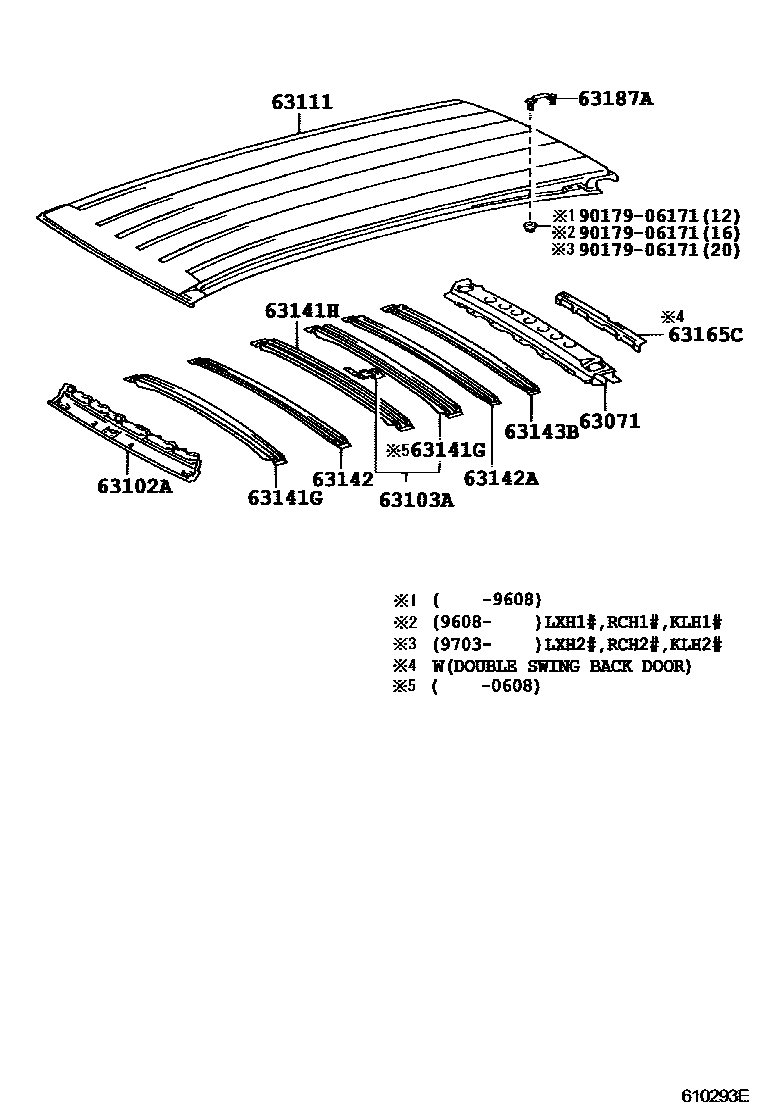

ROOF PANEL & BACK PANEL

0001 1 0002 1

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-26090iKLH1#,2#..DX,STD199508-201010

main63071-26130iLXH12,RCH12,13..05S199508-199907

sub63071-26150

sub90333-25001

main63071-26150iRCH13,19..GL199907-201010

main63071-26220iKLH1#,2#..STD199907-200808

W(DOUBLE SWING BACK DOOR)

main63071-26221iKLH1#,2#..STD200808

W(DOUBLE SWING BACK DOOR)

main63071-26350iKLH1#,2#..STD200808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-26060iRCH13..ATM;LXH1#,2#..DX,STD199508-200608

main63102-26070iRCH13,19..GL199508-201010

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-26110iRCH13..RHD199508-200608

63111PANEL, ROOF

main63111-26030iLXH12,RCH12199508-199608

main63111-26180iLXH1#;RCH13..ATM199608-200608

main63111-26300iKLH2#199703-200608

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-26110iRCH12..06S,09S;LXH12,22,RCH12..RHD;LXH12,22,RCH18,22..SG..(03S,09S)199508-200608

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-26100iLXH1#,RCH1#199508-199910

sub63141-26110

main63141-26110iKLH2#199907-200608

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-26060iLXH12,RCH12,13..05S199508-199907

main63142-26030iLXH1#,2#,RCH1#,2#..03S,06S,09S199508-200608

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-26030iLXH1#,2#;RCH13..ATM199508-200608

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63142-26030iLXH1#,2#,RCH1#,2#..03S,06S,09S199508-200608

63165CBRACKET, BACK DOOR WEATHERSTRIP

main63165-26020iLXH1#,2#..STD;RCH13..ATM..STD199907-200608

63187ABRACKET, ROOF RACK, REAR

main63107-26030iLXH12,RCH12199508-200608

9017906171

main90179-06171

12 parts on this diagram · 2 diagrams in section
