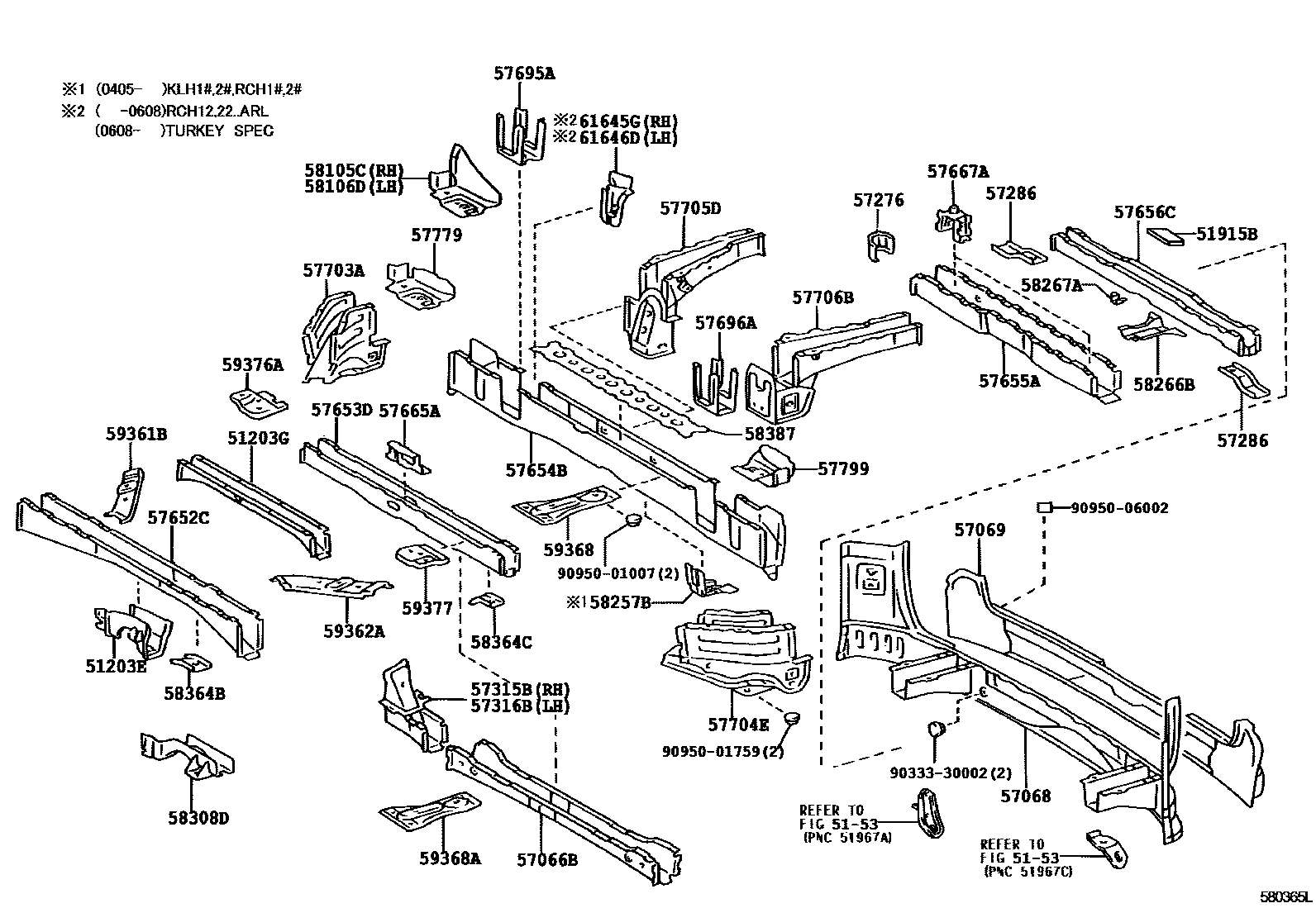

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51203EBRACKET SUB-ASSY, CENTER BEARING SUPPORT

main51203-26150iRCH13,19..MTM¥4,190199508-200608

main51203-26300iLXH2#,RCH2#¥4,320199703-199708

51203GMEMBER, REAR FLOOR CROSS, NO.2

main51203-26300iKLH2#¥4,320199708-200608

5153

51915BBASE, SPARE WHEEL CARRIER

main51915-26020iKLH18,28¥160199804-200608

57066BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6

main57066-26080iLXH2#,RCH2#..03S,09S¥15,800199703-200608

main57066-26090iLXH22,RCH23..06S¥18,400199804-200608

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-26070iLXH1#,2#,RCH1#,2#..03S,06S,09S¥23,000199508-199708

sub57068-26130¥30,300

main57068-26090iLXH12,RCH12..05S¥23,000199508-199708

sub57068-26150¥31,600

main57068-26130iRCH13..ATM;LXH1#,2#..DX,STD¥30,300199708-200608

main57068-26150iKLH12..GL¥31,600199708-201010

main57068-26210iKLH12..LHD..4DV..STD..DCR;KLH12..LHD..4DV..(DX,STD)..HDCR¥34,100200608

PORTUGAL SPEC

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-26040iRCH13,19,23,29..MTM¥11,800199508-200608

main57069-26050iLXH22..LHD..(03S,09S)..MTM;LXH12..LHD..(03S,08S)..(DX,GL)¥11,900199508-200108

*FRG

main57069-26050iRCH12..5DV..MTM;LXH12,RCH12..09S;LXH12..LHD..SP..MTM¥11,900199508-200608

GERMANY SPEC

main57069-26090iRCH12,22¥18,400199907-200608

W(DOUBLE SWING BACK DOOR)

sub57069-26100¥18,400

main57069-26100iRCH13,23..5DV..MTM¥18,400199907-200608

GERMANY SPEC & W(DOUBLE SWING BACK DOOR)

57276GUSSET, REAR FLOOR CROSSMEMBER, NO.4

main57276-26010iLXH12..STD;LXH12..LHD..DX;LXH22..LHD..5DV;LXH22..4DV..(03S,09S);LXH18,28,RCH12,18,22,28¥1,460199708-199809

57286GUSSET, REAR FLOOR CROSSMEMBER, NO.5

main57286-26010iLXH12,RCH12¥910199508-199604

main57286-26020iKLH1#,2#¥910199605-200608

57315OUTRIGGER, NO.3 RH

main57303-26030iLXH12,22;RCH13..ATM¥4,970199508-201111

main57303-26050iRCH19,29¥5,300199608-201111

main57303-26140iKLH12,22..LHD..HDCR200610-201111

TURKEY SPEC

57315BOUTRIGGER SUB-ASSY, NO.3 RH

main57305-26010iLXH22..RHD..5DV;LXH2#,RCH2#..LHD¥9,700199703-200608

main57305-26020iKLH22..RHD..4DV¥9,700199703-200608

57316OUTRIGGER, NO.3 LH

main57304-26020iKLH12,22;KLH18..GL¥4,640199508-201111

main57304-26050iRCH12,22¥5,900199508-200311

main57304-26050iKLH12,22..LHD..5DV..HDCR¥5,900200610-201111

TURKEY SPEC

main57304-26060iKLH18,28..STD¥4,950199608-201111

57316BOUTRIGGER SUB-ASSY, NO.3 LH

main57306-26010iLXH22..LHD..4DV¥9,700199703-200608

main57306-26020iKLH2#..5DV;KLH22..RHD¥9,700199703-200608

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-26020iRCH13,19..MTM¥15,800199508-201102

sub57652-26090¥15,800

main57652-26040iLXH2#,RCH2#¥15,800199703-201102

sub57652-26100¥15,800

main57652-26090iKLH12..LHD..4DV¥15,800201102

main57652-26100iKLH2#¥15,800201103

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-26020iKLH1#¥10,600199508-201103

sub57653-26190¥10,600

main57653-26060iLXH2#,RCH2#¥7,700199703-201103

sub57653-26200¥7,700

main57653-26190iKLH1#¥10,600201104

main57653-26200iKLH2#¥7,700201104

57654BMEMBER, REAR FLOOR CROSS, NO.3

main57654-26080iRCH13..RHD¥44,600199508-199910

main57654-26100iKLH1#,2#¥57,600199608-200608

57655AMEMBER, REAR FLOOR CROSS, NO.4

main57655-26010iLXH12,22,RCH12,13,22,23¥18,400199508-199910

sub57655-26011¥18,400

main57655-26020iKLH1#,2#¥23,500199608-200608

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-26010iLXH12,RCH12¥13,200199508-199604

main57656-26020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥13,100199605-200608

57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57665-26040iLXH1#,RCH1#..03S,05S,06S,09S¥1,430199508-201103

sub57665-26070¥1,430

main57665-26070iKLH1#¥1,430201104

57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4

main57084-26020iRCH13,19,23,29..MTM¥2,490199508-200608

57695AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH

main57695-26010iRCH13..RHD¥2,650199508-199910

main57695-26020iLXH1#,2#;RCH13..ATM¥2,650199608-200608

57696AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-26010iLXH12,22,RCH12,13,22,23¥2,650199508-199910

main57696-26020iKLH1#,2#¥2,650199608-200608

57703ABRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT RH

main57703-26010iLXH12,22,RCH12,13,22,23¥8,500199508-199910

sub57703-26011¥8,500

main57703-26020iLXH18,28,RCH18,19,28,29¥11,800199608-199901

main57703-26021iLXH18,28,RCH19,29¥11,600199901-200909

sub57703-26022¥11,600

main57703-26022iKLH1#,2#¥11,600200909

57704EBRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT LH

main57704-26010iLXH12,RCH12¥8,200199508-199708

sub57704-26030¥8,500

main57704-26020iLXH18,RCH18¥11,800199608-199708

sub57704-26040¥11,800

main57704-26030iLXH22,RCH22¥8,500199703-199910

sub57704-26031¥8,500

main57704-26040iLXH28,RCH28¥11,800199703-199901

main57704-26041iRCH12,22¥11,600199901-200909

sub57704-26042¥11,600

main57704-26042iKLH1#,2#¥11,600200909

57705DBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR RH

main57705-26010iLXH12,RCH12¥14,800199508-199608

main57705-26030iRCH13..RHD¥14,800199608-199910

sub57705-26031¥14,800

main57705-26040iLXH18,28,RCH18,19,28,29¥16,500199608-200909

sub57705-26041

main57705-26040iLXH18,RCH18..03S¥16,500199608-199708

FINLAND SPEC

sub57705-26041

main57705-26041iKLH1#,28;KLH22..STD200909

sub57705-26091¥18,400

main57705-26070iRCH23..4DV..03S¥14,800199804-199907

FINLAND SPEC & W(REAR SEAT BELT ANCHOR)

sub57705-26071

main57705-26070iRCH23..DX¥14,800199804-199907

FINLAND OR NORWAY SPEC

sub57705-26071

main57705-26070iLXH22,RCH22..LHD..(03S,09S)¥14,800199703-199907

FINLAND SPEC

sub57705-26071

main57705-26090iRCH23,29..03S,09S¥18,400199804-200608

FINLAND OR NORWAY SPEC

sub57705-26091¥18,400

main57705-26090iLXH28¥18,400199703-199907

FINLAND SPEC

sub57705-26091¥18,400

main57705-26090iKLH2#..03S,09S¥18,400200608-200909

W/O(REAR SEAT BELT ANCHOR)

sub57705-26091¥18,400

main57705-26090iRCH28¥18,400199708-199804

NORWAY SPEC

sub57705-26091¥18,400

main57705-26091iKLH2#..03S,09S¥18,400200909-201010

W/O(REAR SEAT BELT ANCHOR)

57706BBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH

main57706-26010iRCH23..STD;LXH12,22,RCH12,13,22¥13,500199508-199910

sub57706-26011¥13,500

main57706-26020iRCH12,22¥16,100199608-200909

sub57706-26021¥17,900

main57706-26021iKLH1#,28;KLH22..STD¥17,900200909

sub57706-26061¥18,400

main57706-26050iRCH23..4DV..03S¥13,400199804-199907

FINLAND OR NORWAY SPEC

sub57706-26051

main57706-26050iRCH23..4DV..03S¥13,400199804-199907

FINLAND SPEC & W(REAR SEAT BELT ANCHOR)

sub57706-26051

main57706-26050iLXH22,RCH22..LHD..(03S,09S)¥13,400199703-199907

FINLAND SPEC

sub57706-26051

main57706-26060iLXH28¥18,400199703-200108

FINLAND SPEC

sub57706-26061¥18,400

main57706-26060iRCH28¥18,400199708-199804

NORWAY SPEC

sub57706-26061¥18,400

main57706-26060iRCH29¥18,400199804-200608

FINLAND OR NORWAY SPEC

sub57706-26061¥18,400

main57706-26060iKLH2#..03S,09S¥18,400200608-200909

W/O(REAR SEAT BELT ANCHOR)

sub57706-26061¥18,400

main57706-26061iKLH2#..03S,09S¥18,400200909-201010

W/O(REAR SEAT BELT ANCHOR)

57779RETAINER, UPPER CONTROL LINK, UPPER

main57779-26040iKLH12¥2,460199508-200608

57799GUSSET, REAR FLOOR CROSSMEMBER

main57799-26010iLXH12,RCH12,13..(DX,STD)..EUR¥2,460199508-200608

58105CGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT RH

main58105-26010iRCH12..ARL;LXH18,2#,RCH18,19,2#¥3,920199508-200608

main58105-26010iKLH12..LHD..HDCR¥3,920200610

TURKEY SPEC

58106DGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT LH

main58106-26010iRCH12..ARL;LXH18,2#,RCH18,19,2#¥3,920199508-200608

main58106-26010iKLH12..LHD..HDCR¥3,920200610

TURKEY SPEC

58257BRETAINER, PARKING BRAKE MOUNTING

main58257-26030iRCH1#,2#¥1,330200405-200608

58266BBRACKET, FUEL TUBE CLAMP

main58266-26080iKLH1#,2#200608

58267ABRACKET, FUEL TUBE CLAMP, NO.2

main58267-26010iKLH1#,2#200608

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-26020iLXH2#,RCH2#¥3,200199703-201102

sub58308-26070¥3,200

main58308-26070iKLH2#¥3,200201103

58364BBRACKET, FUEL TANK SUPPORT

main58364-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥810199508-200608

58364CBRACKET, FUEL TANK SUPPORT

main58364-26020iLXH1#,RCH1#..03S,05S,06S,09S¥590199508-200608

58387PLATE, REAR FLOOR FINISH

main58387-26040iLXH1#,2#;RCH13..ATM¥6,400199508-200608

59361BRETAINER, REAR SEAT, NO.1 A

main59361-26020iLXH12,RCH1#..06S¥4,260199508-199803

main59361-26070iLXH12,22..06S;RCH13..06S..ATM¥4,260199803-200608

59362ARETAINER, REAR SEAT, NO.1 B

main59362-26020iLXH12,RCH1#..06S¥4,260199508-199803

main59362-26070iLXH12,22,RCH1#,23..06S¥4,260199803-200608

59368RETAINER, REAR SEAT, NO.2 D

main59306-26140iRCH1#..DX,GL¥6,700200405-201010

NO.1

main59367-26070iRCH13,19..06S..MTM¥3,920199804-200608

main59367-26120iKLH12..4DV..SG200405-201010

NO.2

main59367-26120iKLH18..GL200808-201010

main59367-26130iKLH22..DX¥1,750200405-201010

main59368-26050iLXH12..LHD..4DV..SP..DSL¥6,700199508-200108

FINLAND SPEC OR CKD PACKAGE

main59368-26050iLXH12..DX,GL;RCH13..(03S,09S)..ATM¥6,700199508-200108

FINLAND SPEC

main59368-26050iKLH12,RCH19..DX,GL;RCH13..MTM..(DX,GL)¥6,700199508-201010

59368ARETAINER, REAR SEAT, NO.2

main59306-26140iKLH22..DX¥6,700200405-201010

main59368-26050iKLH2#..03S¥6,700199703-201010

59376ARETAINER, REAR SEAT, NO.4

main59376-26020iLXH12..05S;LXH1#..LHD..SP;RCH12,13..LHD..(03S,05S)..MTM¥2,140199708-201010

59377RETAINER, REAR SEAT, NO.4

main59377-26010iLXH12..LHD..SP..DSL;LXH12,RCH12..5DV..03S..(EFI,TD)¥2,140199508-199708

NORWAY SPEC

main59377-26010iLXH12,RCH12..05S;RCH13..LHD..(03S,05S)..MTM¥2,140199508-201010

main59377-26010iLXH12,RCH12..LHD..4DV..03S..(EFI,TD)¥2,140199510-200108

HOLLAND SPEC

main59377-26010iLXH12,RCH12..LHD..4DV..03S..(EFI,TD)¥2,140199510-200108

NORWAY SPEC OR HOLLAND SPEC

61645GGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-26010iRCH12..ARL¥2,650199508-200311

main61645-26010iKLH12,22..LHD..HDCR¥2,650200610

TURKEY SPEC

61646DGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-26010iRCH12..ARL¥2,650199508-200311

main61646-26010iKLH12,22..LHD..HDCR¥2,650200610

TURKEY SPEC

9033330002

main90333-30002¥70

9095001007

main90950-01007¥250

9095001759

main90950-01759¥120

9095006002

main90950-06002¥60

49 parts on this diagram · 2 diagrams in section
