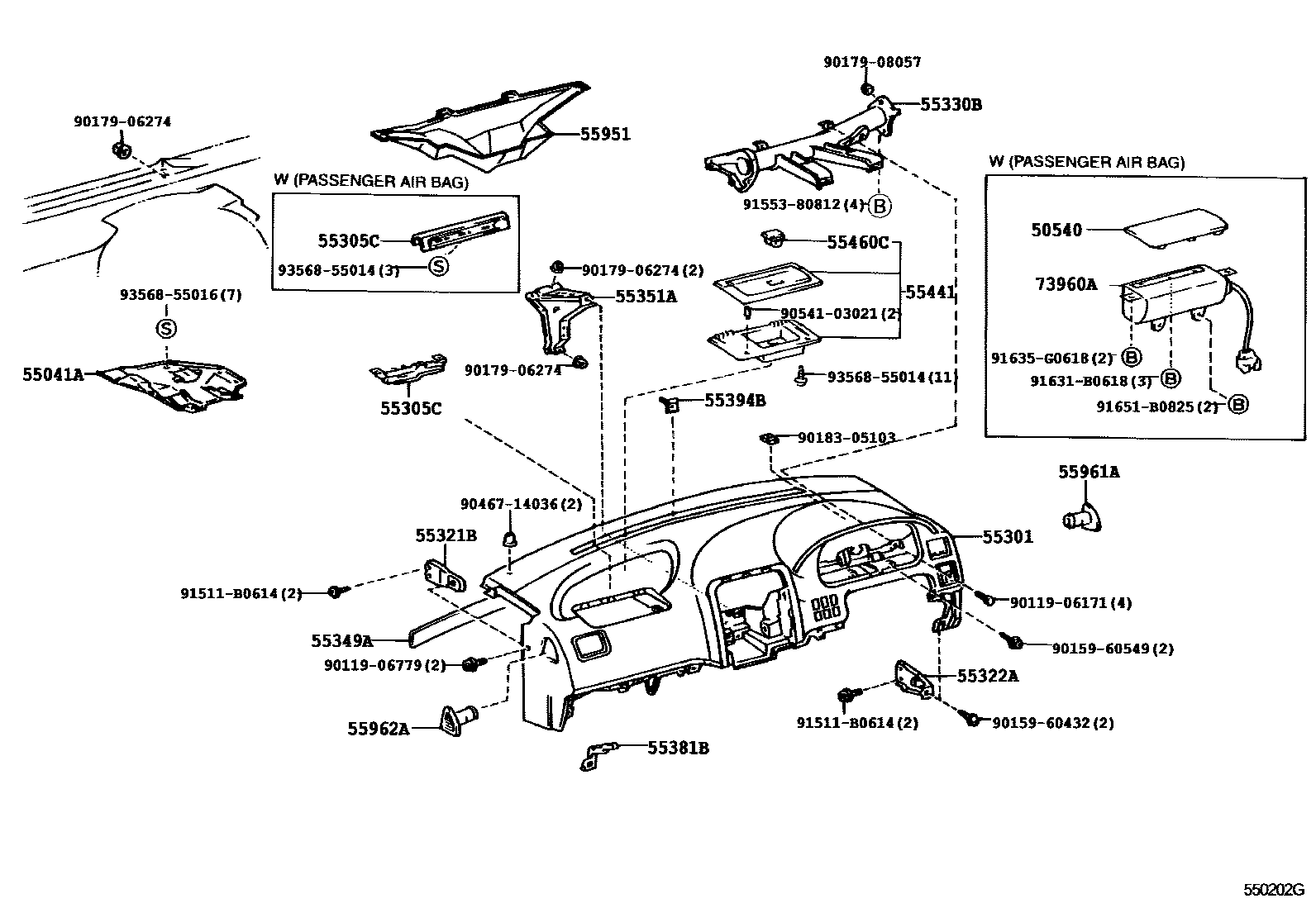

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-26010-B0iLXH1#,2#,RCH1#,2#..LHD199508-199708

BLUISH GRAY,TRIM1#

sub50540-26040

main50540-26020-B0iLXH12,22,RCH12..RHD..EUR199508-199708

BLUISH GRAY,TRIM1#

sub50540-26060

main50540-26040-B0iKLH1#,2#..LHD199708-201010

BLUISH GRAY,TRIM1#

main50540-26040-B1iKLH1#,2#..LHD201010-201111

DK.GRAY,TRIM1#

main50540-26060-B0iLXH12,22,RCH12,13..RHD..03S199708-201010

BLUISH GRAY,TRIM1#

sub50540-26060

main50540-26060-B1iKLH12,22..RHD201010-201111

DK.GRAY,TRIM1#

sub50540-26060

55041ABRACKET SUB-ASSY, AIRBAG PASSENGER MOUNTING

main55041-26010iKLH1#,2#..LHD199508-200608

main55041-26020iLXH12,RCH12..RHD..EUR199508-199610

main55041-26021iKLH12,22..RHD199610-200809

sub55041-26020

55301PANEL SUB-ASSY, INSTRUMENT

main55300-26010-B0iLXH1#,2#,RCH1#,2#..LHD199508-201010

BLUISH GRAY,TRIM1#

main55300-26010-B1iKLH1#,2#..LHD201010-201111

DK.GRAY,TRIM1#

main55300-26020-B0iLXH12,22,RCH12,13..RHD199508-199905

BLUISH GRAY,TRIM1#

sub55300-26021

sub86211-26070

main55300-26021-B0iLXH12,22,RCH12,13..RHD..03S199905-200608

BLUISH GRAY,TRIM1#

sub55300-26022

main55300-26022-B0iKLH12,22..RHD200608-201010

BLUISH GRAY,TRIM1#

main55300-26022-B1iKLH12,22..RHD201010-201111

DK.GRAY,TRIM1#

55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-26050iKLH1#,2#..LHD199508-200608

main55305-26060iLXH12,22,RCH12..RHD199508-199804

main55305-26070iLXH2#,RCH13,19,2#..LHD199703-200608

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55305-26070iLXH12..GL;LXH2#..LHD;RCH13..ATM199508-200108

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55305-26080iLXH12..RHD..5DV199708-199804

W(*80)

main55305-26080iLXH22..RHD199703-200608

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55305-26080iLXH12,RCH12..RHD..4DV..STD..EUR199508-200108

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55305-26100iKLH12,22..RHD199804-200608

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-26020iRCH13,19,23,29..MTM199508-200608

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-26030iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-26060iLXH1#,2#,RCH1#,2#..LHD..MTM199508-199804

sub55330-26061

main55330-26061iLXH1#,2#,RCH13,19,23,29..LHD..MTM199804-200108

main55330-26070iLXH12,22,RCH12..ATM199508-199804

sub55330-26071

main55330-26071iLXH12,22,RCH13..ATM199804-200108

main55330-26080iLXH12,22,RCH12..RHD199508-199707

sub55330-26081

main55330-26081iLXH12,22,RCH12,13..RHD..03S199707-200108

main55330-26240iKLH1#,2#..LHD200108-200910

main55330-26241iKLH1#,2#..LHD200910

sub55330-26240

main55330-26250iKLH12,22..ATM200108-200608

main55330-26260iKLH12,22..RHD200108-200910

main55330-26261iKLH12,22..RHD200910

sub55330-26260

55349ACUSHION, INSTRUMENT PANEL

main55349-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200006

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-26030iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-26010iRCH13..ATM;LXH1#,2#..LHD199508-201111

main55381-26020iKLH12,22..RHD199508-201111

55394BBOLT, INSTRUMENT PANEL

main55394-26010iRCH12,22199508-200608

55441BOX, INSTRUMENT PANEL

main55440-26010-B0iRCH13,19,23,29..LHD..MTM199508-201010

BLUISH GRAY,TRIM1#

main55440-26010-B1iKLH1#,2#..LHD201010-201111

DK.GRAY,TRIM1#

main55440-26020-B0iRCH13..RHD199508-201010

BLUISH GRAY,TRIM1#

main55440-26020-B1iKLH12,22..RHD201010-201111

DK.GRAY,TRIM1#

55460CLOCK ASSY, INSTRUMENT PANEL BOX

main55460-26010-B0iRCH13,19,23,29..MTM199508-201010

BLUISH GRAY,TRIM1#

sub55460-26010

main55460-26010-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

sub55460-26010

55951NOZZLE, DEFROSTER, FRONT

main55951-26020iKLH1#,2#..LHD199508-200608

main55951-26030iRCH12,22199508-200608

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-26010-B0iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201010

BLUISH GRAY,TRIM1#

sub55961-26010

main55961-26010-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

sub55961-26010

55962ANOZZLE, SIDE DEFROSTER, LH

main55962-26010-B0iRCH12,22199508-201010

BLUISH GRAY,TRIM1#

sub55962-26010

main55962-26010-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

sub55962-26010

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-26010iLXH1#,2#,RCH1#,2#..LHD199508-199708

main73960-26020iLXH12,22,RCH12..RHD..EUR199508-199708

main73960-26050iLXH1#,2#,RCH1#,2#..LHD199708-199804

main73960-26051iLXH1#,2#,RCH13,19,2#..LHD199804-200608

main73960-26060iLXH12,22,RCH12..RHD..EUR199708-199803

main73960-26061iRCH13..RHD199902-200608

main73960-26090iLXH12,22,RCH12..RHD..EUR199803-199804

sub73960-26060

main73960-26091iLXH12,22,RCH12,13..RHD199804-199902

sub73960-26061

9011906171

main90119-06171

9011906779

main90119-06779

9015960432

main90159-60432

9015960549

main90159-60549

9017906274

main90179-06274

9017908057

main90179-08057

9018305103

main90183-05103

9046714036

main90467-14036

9054103021

main90541-03021

91511B0614

main91511-B0614

9155380812

main91553-80812

91631B0618

main91631-B0618

91635G0618

main91635-G0618

91651B0825

main91651-B0825

9356855014

main93568-55014

9356855016

main93568-55016

33 parts on this diagram · 4 diagrams in section
