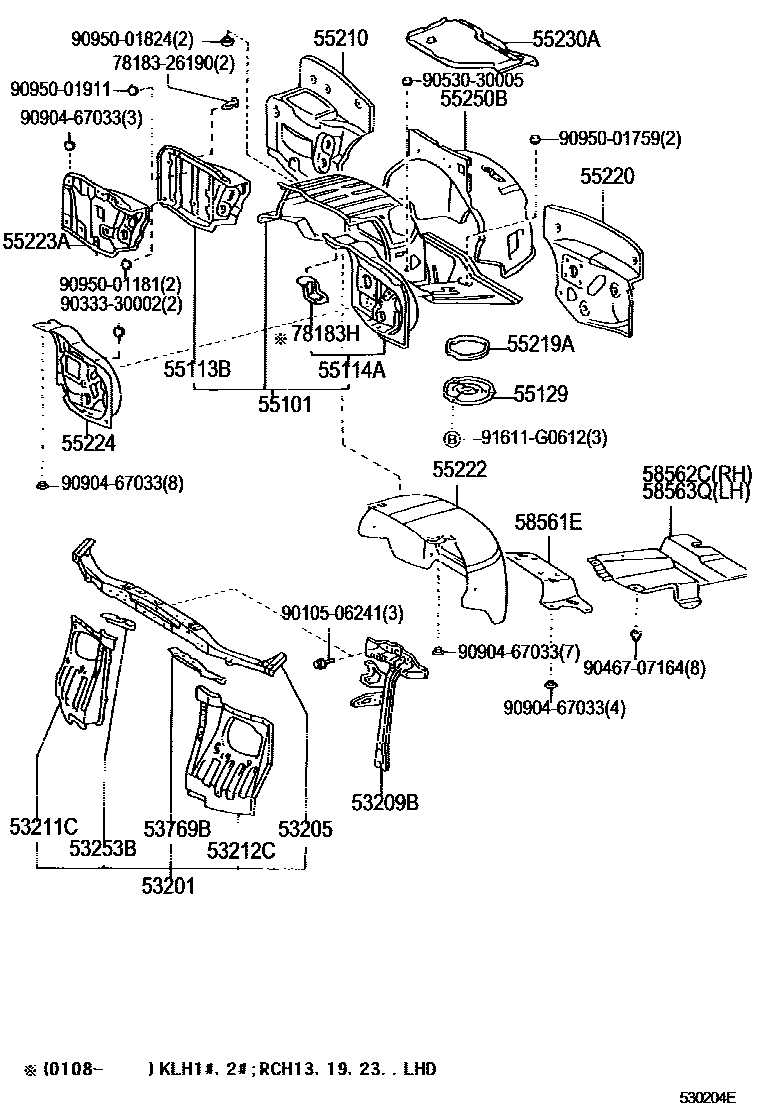

FRONT FENDER APRON & DASH PANEL
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
RADIATOR GRILLE = TYPE A
RADIATOR GRILLE = TYPE B
53253BBRACKET, RADIATOR MOUNTING, UPPER
53769BBRACKET, POWER STEERING RESERVOIR TANK MOUNTING
55101PANEL SUB-ASSY, DASH
W(*80)
W(*80 & *AIC)
W(*80)
W(*80 & *AIC)
W(*80)
W(*80)
W(ABS & *80)
W(*80 & *AIC)
W(ABS & *AIC & *80)
W(ABS & *80)
W(*80)
W(*80 & AIR CONDITIONER)
W(ABS & *AIC & *80)
W(*80)
W(ABS & *80)
W(*80) OR W(*80 & ABS)
W(*80 & AIR CONDITIONER)
W(ABS & *AIC & *80)
W(*80 & ABS & AIR CONDITIONER)
W(ABS & *80)
W(*80)
W(*80)
W(*80)
W(ABS & *80)
W(*80 & ABS)
W(*80 & AIR CONDITIONER)
W(*80 & *AIC)
W(*80 & AIR CONDITIONER)
W(*80 & ABS & AIR CONDITIONER)
W(ABS & *AIC & *80)
W(*80 & ABS & AIR CONDITIONER)
W(*80)
W(*80)
W(ABS & AIR CONDITIONER)
W(ABS)
W(AIR CONDITIONER)
W(ABS & AIR CONDITIONER)
W(ABS)
W(*80) OR W(*80 & ABS)
W(*80 & ABS & AIR CONDITIONER) & W(*80 & AIR CONDITIONER)
W(*80) OR W(*80 & ABS)
W(*80 & ABS & AIR CONDITIONER) & W(*80 & AIR CONDITIONER)
W(*80)
W(*80 & ABS)
W(*80 & AIR CONDITIONER)
W(*80 & ABS & AIR CONDITIONER)
55113BPANEL SUB-ASSY, DASH SIDE, RH
55129COVER, DASH PANEL HOLE
55219APACKING, DASH PANEL HOLE COVER
55222INSULATOR, DASH PANEL, OUTER CENTER
55223AINSULATOR, DASH PANEL, OUTER
55224INSULATOR, DASH PANEL, OUTER LH
58561ESILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
78183HCLAMP, ACCELERATOR CONTROL CABLE
7818326190BRACKET, ACCELERATOR LINK ROD
main78183-26190
9010506241
main90105-06241
9033330002
main90333-30002
9046707164
main90467-07164
9053030005
main90530-30005
9090467033
main90904-67033
9095001181
main90950-01181
9095001759
main90950-01759
9095001824
main90950-01824
9095001911
main90950-01911
91611G0612
main91611-G0612
34 parts on this diagram · 2 diagrams in section
