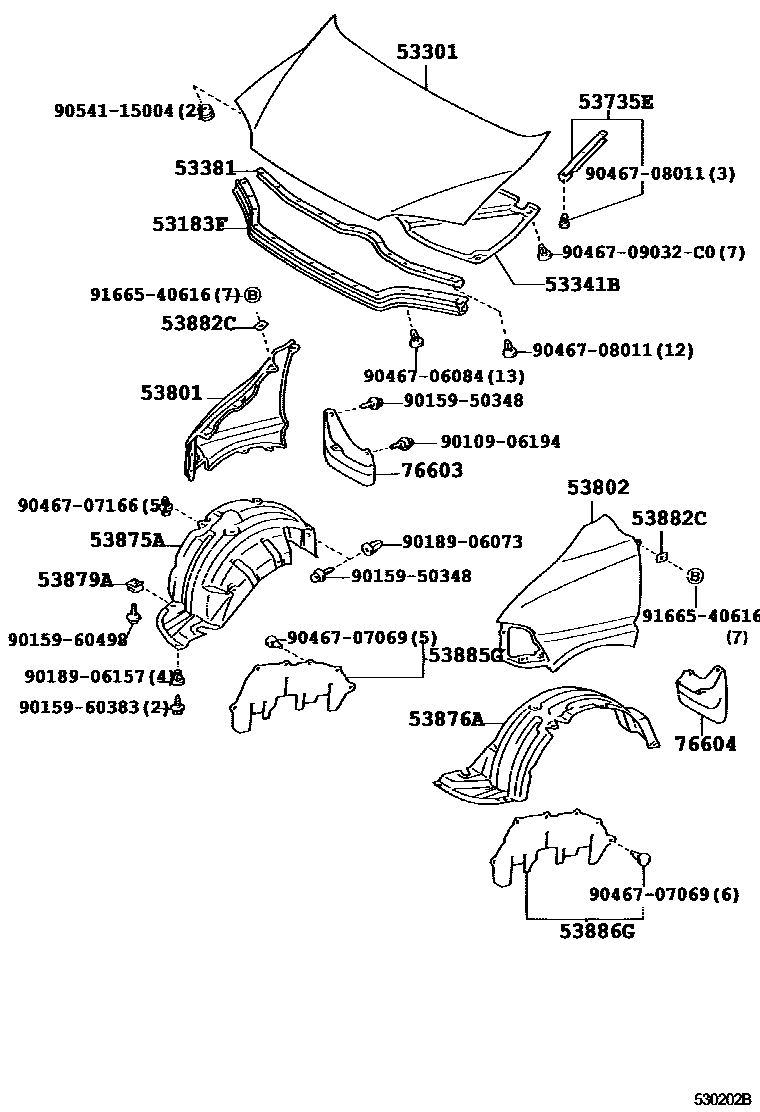

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53183FSEAL, HEADLAMP COVER TO HOOD

main53183-26010iLXH1#,2#,RCH1#,2#199508-200108

sub53183-26011

main53183-26030iRCH12,22200108-200608

53301HOOD SUB-ASSY

main53301-26010iLXH1#,2#,RCH1#,2#199508-199708

sub53301-26011

main53301-26011iLXH1#,2#,RCH1#,2#199708-199712

sub53301-26012

main53301-26012iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199712-200608

main53301-26040iKLH1#,2#200608-200806

sub53301-26041

main53301-26041iKLH1#,2#200806

53341BINSULATOR, HOOD

main53341-26010iLXH12,RCH12..(03S,09S)..DX199508-199804

main53341-26011iRCH13,19,23..09S199804-200605

main53341-26030iKLH1#,2#..STD200108-200608

main53341-26040iKLH1#,2#200808

NO.1

main53341-26050iKLH1#,2#200808

NO.2

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200704

sub53381-26011

main53381-26011iKLH1#,2#200705

53735ESEAL, FRONT FENDER APRON, UPPER

main53735-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

main53735-26030iKLH1#,2#200608

53801FENDER SUB-ASSY, FRONT RH

main53811-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

main53811-26030iKLH1#,2#200608

53802FENDER SUB-ASSY, FRONT LH

main53812-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

main53812-26040iKLH1#,2#200608

53875ALINER, FRONT FENDER, RH

main53875-26010iKLH1#,2#199508-200608

main53875-26050iKLH1#,2#200608

53876ALINER, FRONT FENDER, LH

main53876-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

main53876-26050iKLH1#,2#200608

53879ARETAINER, FRONT FENDER LINER

main53879-16010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

53882CSEAL, FRONT FENDER MAIN

main53882-16030iLXH1#,2#,RCH1#,2#199508-199708

main53882-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199708-200608

53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-26010iLXH12,22;RCH13..ATM199508-200703

sub53807-26011

main53807-26011iKLH12,22200704

main53807-26020iLXH18,28199608-200703

sub53807-26021

main53807-26021iKLH18,28200704

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-26010iKLH12,22199508-200703

sub53808-26011

main53808-26011iKLH12,22200704

main53808-26020iKLH18,28199608-200703

sub53808-26021

main53808-26021iKLH18,28200704

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-26010iRCH12,22199508-200608

sub76621-26011

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-26020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

sub76622-26021

9010906194

main90109-06194

9015950348

main90159-50348

9015960383

main90159-60383

9015960498

main90159-60498

9018906073

main90189-06073

9018906157

main90189-06157

9046706084

main90467-06084

9046707069

main90467-07069

9046707166

main90467-07166

9046708011

main90467-08011

9046709032C0

main90467-09032C0

9054115004

main90541-15004

9166540616

main91665-40616

28 parts on this diagram · 3 diagrams in section
