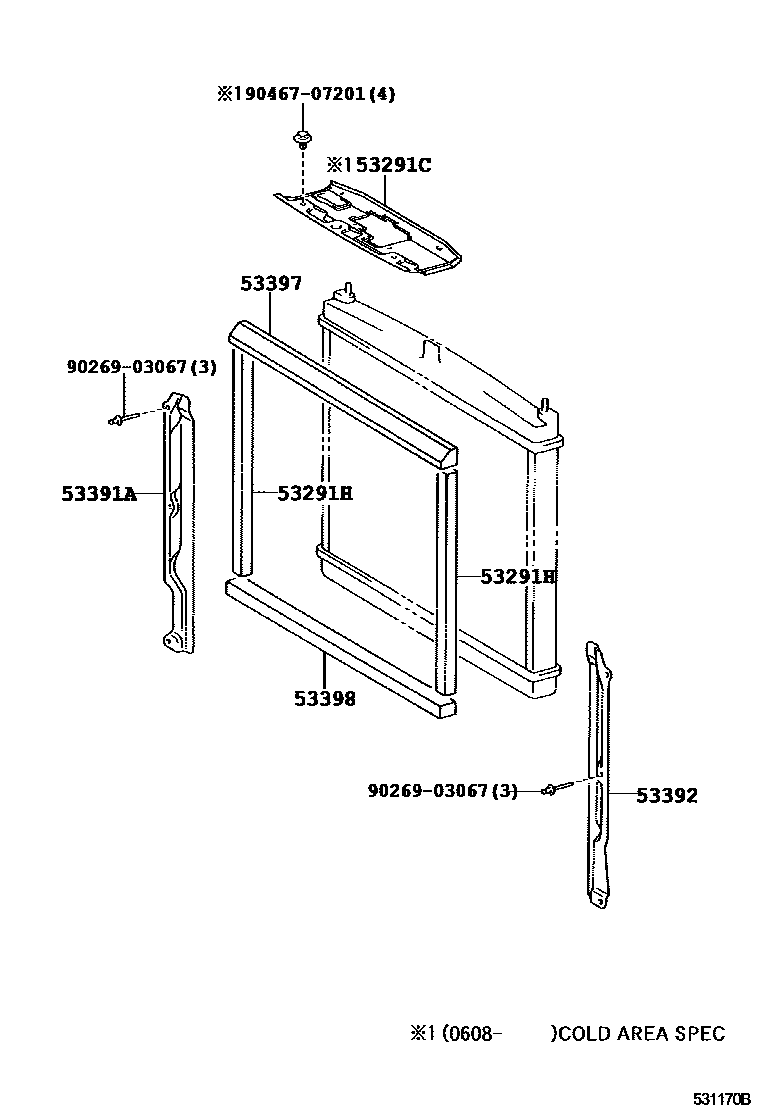

RADIATOR SUPPORT & WIND GUIDE

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53292-26050iKLH1#,2#200608-200807

sub53292-26090

main53292-26090iKLH1#,2#200808

53291HSEAL, RADIATOR SUPPORT

main53291-26030iLXH1#,2#..TD199508-200108

main53291-26040iRCH13,19,23,29..MTM199508-200608

53391ABRACKET, RADIATOR SEAL, RH

main53391-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

53392BRACKET, RADIATOR SEAL, LH

main53392-26010iRCH13,19,23,29..MTM199508-200608

53397SEAL, RADIATOR, UPPER

main53397-26010iKLH1#,2#199508-200608

main53397-26020iLXH1#,2#..TD199508-200108

53398SEAL, RADIATOR, LOWER

main53397-26010iLXH1#,2#..TD199508-200108

main53398-26010iKLH1#,2#199508-200608

9026903067

main90269-03067

9046707201

main90467-07201

8 parts on this diagram · 1 diagram in section
