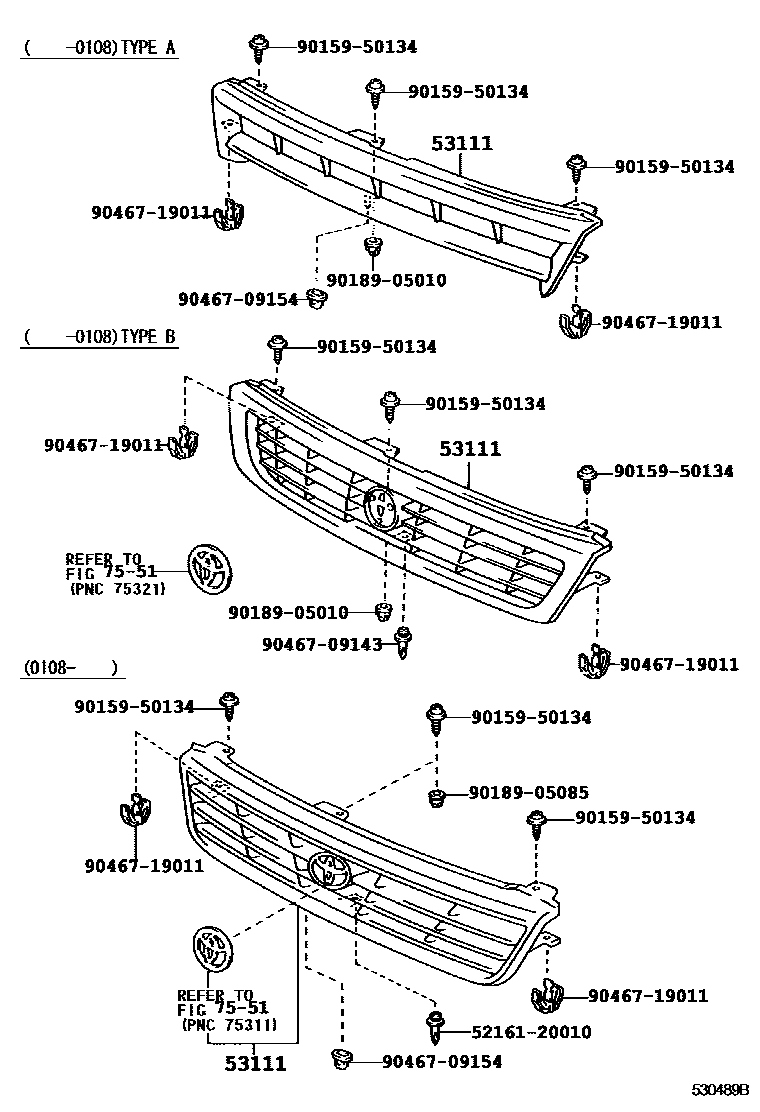

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53111-26100iLXH1#,2#,RCH1#,2#..03S,06S,09S199508-200108

TYPE A:REFER TO ILLUSTRATION

main53111-26110iLXH12,RCH12,13..05S199508-199907

main53111-26110iLXH12..03S..DX199907-200108

TYPE B:REFER TO ILLUSTRATION

main53111-26320iKLH12,22,RCH13,19,23..DX,GL200108-200308

CHROME PLATED

sub53111-26321

main53111-26321iRCH13,19,23..DX,GL200308-200608

CHROME PLATED

main53111-26330iKLH1#,2#,RCH1#,2#200108-200308

sub53111-26331

main53111-26331iRCH13,19,23,29200308-200608

main53111-26380iKLH1#,2#200608-200808

main53111-26480iKLH1#,2#200808

7551

5216120010CUSHION, REAR BUMPER GUARD, NO.1

main52161-20010

9015950134

main90159-50134

9018905010

main90189-05010

9018905085

main90189-05085

9046709143

main90467-09143

9046709154

main90467-09154

9046719011

main90467-19011

9 parts on this diagram · 3 diagrams in section
