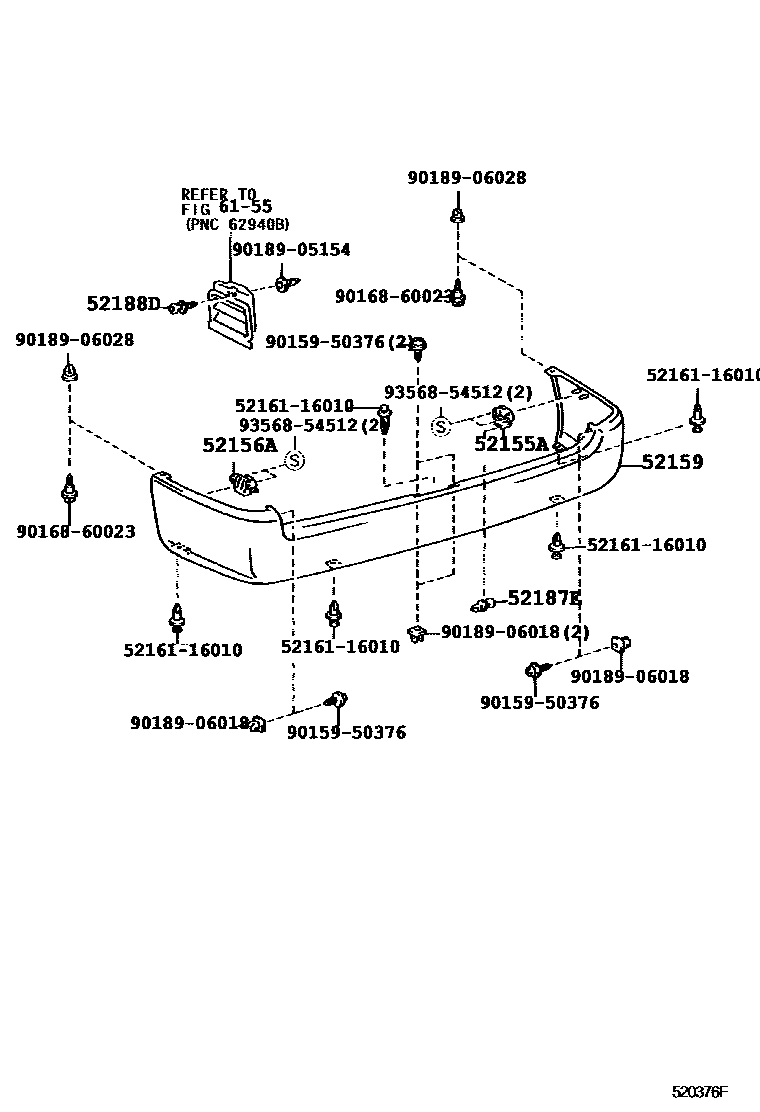

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

52159COVER, REAR BUMPER

main52159-26070iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

main52159-26220iKLH1#,2#,LXH1#,2#,RCH1#,2#..STD199907-200608

W(DOUBLE SWING BACK DOOR)

main52159-26430iKLH1#,2#200608-201111

main52159-26440iKLH1#,2#..STD200608-201111

W(DOUBLE SWING BACK DOOR)

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-16070iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-26020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

6155

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9015950376

main90159-50376

9016860023

main90168-60023

9018905154

main90189-05154

9018906018

main90189-06018

9018906028

main90189-06028

9356854512

main93568-54512

13 parts on this diagram · 1 diagram in section
