SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-26530iRCH12;LXH12..STD;LXH12..05S,09S199508-199605

main51903-26550iRCH12..5DV..MTM;LXH12,RCH12..09S;LXH12..LHD..SP..MTM199508-199605

*FRG

main51903-26570iRCH12,22199605-200608

main51903-26580iLXH22..LHD..(03S,09S)..MTM;LXH12..LHD..(03S,08S)..(DX,GL)199605-200608

GERMANY SPEC

main51903-26580iLXH12..09S;LXH12..LHD..SP..MTM199605-200108

THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION

main51903-26640iKLH1#,2#..STD199907-200608

W(DOUBLE SWING BACK DOOR)

main51903-26650iRCH13,23..5DV..MTM199907-200608

GERMANY SPEC & W(DOUBLE SWING BACK DOOR)

51938LOCK, SPARE WHEEL CARRIER

main51938-26050iKLH12,22..LHD..03S..MTM199907-200608

GERMANY SPEC

main51938-28030iRCH12,22199508-200608

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90119-12293iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

51938GBRACKET, SPARE WHEEL CARRIER MOUNTING

main51938-26050iRCH13,23..5DV..MTM;RCH13,23..09S..MTM;LXH12..LHD..03S..DX;LXH22..LHD..(03S,09S)..MTM199508-200108

THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION

main51938-26050iRCH13,23..5DV..MTM;RCH13,23..MTM..(DX,GL)199907-200608

main51938-26050iKLH18,28..03S200701

GERMANY SPEC

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-26200iLXH12,RCH12199508-199605

main51943-26230iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199605-200608

51955BHINGE, SPARE WHEEL CARRIER, NO.1

main51955-26050iRCH12,22199605-200608

main51955-26060iLXH12,RCH12199508-199605

sub51955-26050

51967AHOOK SUB-ASSY, REAR

main51095-26020iRCH12,22199508-200608

51967CHOOK, TRANSPORT, REAR

main51967-26020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

9011912167

main90119-12167

9020213066

main90202-13066

9038712048

main90387-12048

91611B0816

main91611-B0816

91651B0820

main91651-B0820

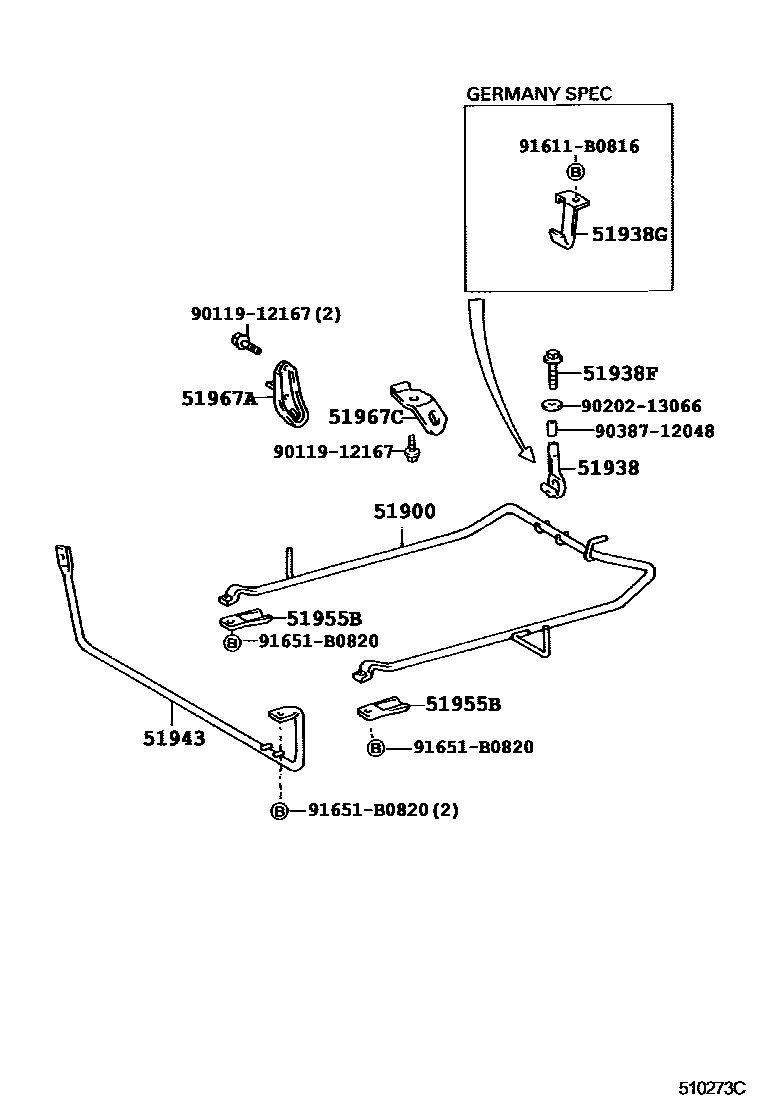

13 parts on this diagram · 1 diagram in section
