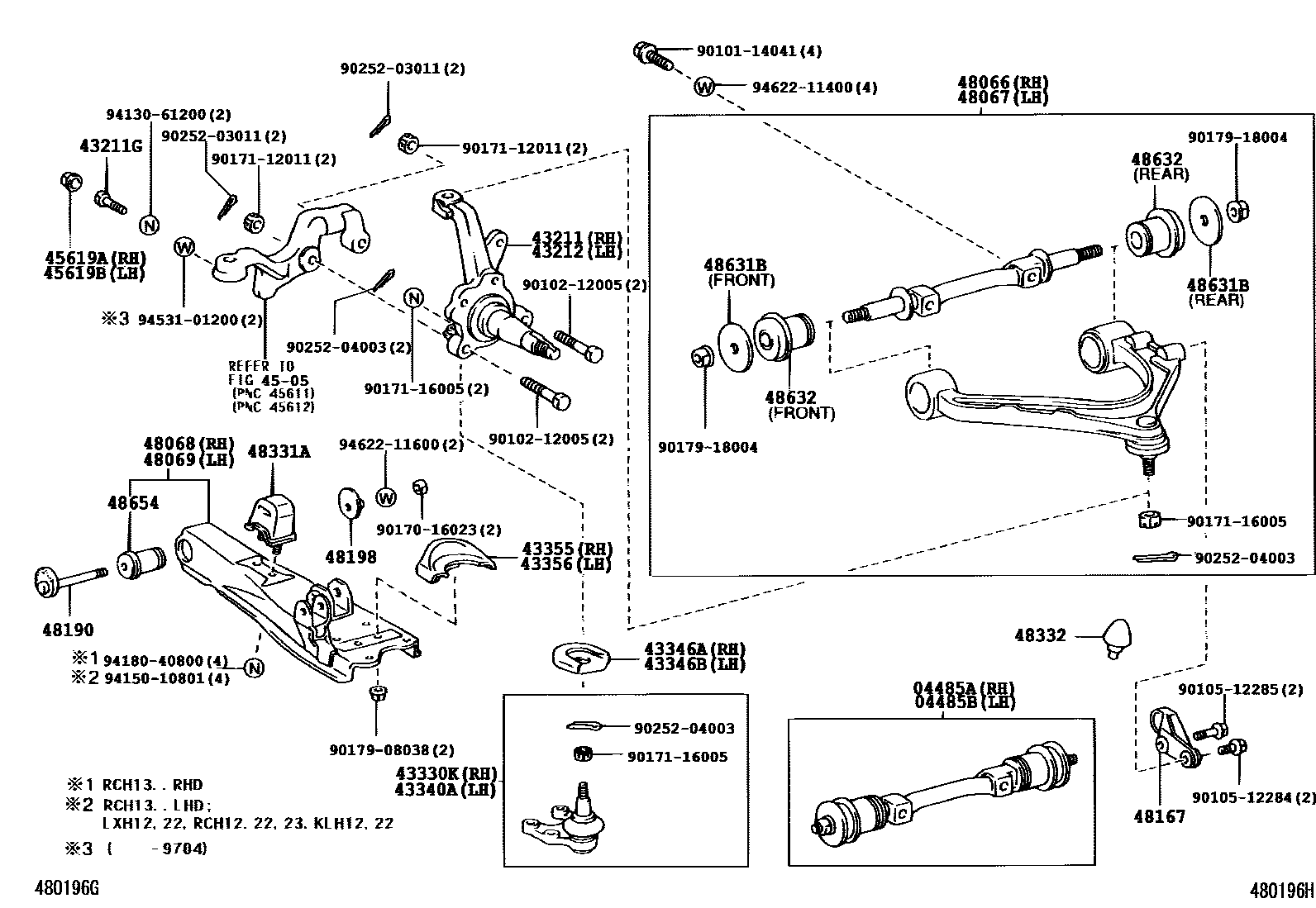

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-26050iRCH12,22199603-200409

sub04485-26120

main04485-26070iLXH12,RCH12..03S,05S,06S199508-199603

sub04485-26050

main04485-26080iRCH13..ATM..DX;LXH12,22..DX,GL199508-200409

sub04485-26110

main04485-26110iRCH13,23..DX,GL200409-201010

main04485-26120iKLH12,22..STD200409-200608

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-26050iRCH12,22199603-200409

sub04485-26120

main04485-26070iLXH12,RCH12..03S,05S,06S199508-199603

sub04485-26050

main04485-26080iRCH13..MTM..(DX,GL);KLH12,22,RCH23..DX,GL199508-200409

sub04485-26110

main04485-26110iKLH12,22..DX,GL200409-201010

main04485-26120iKLH12,22..STD200409-200608

43211KNUCKLE, STEERING, RH

main43201-26020iLXH18,28,RCH18,19,28,29199608-200107

W(ABS)

sub43201-26021

sub90304-76005

main43201-26021iRCH19,29200107-200608

W(ABS)

main43201-26030iLXH18,28,RCH19,29199608-200107

sub43201-26031

sub90304-76005

main43201-26031iLXH18,28200107-200608

main43211-26080iLXH12,RCH12..EUR199508-199608

W(ABS)

main43211-26090iLXH12,RCH12199508-199608

sub43211-26120

main43211-26110iRCH12,22199608-200608

W(ABS)

main43211-26120iKLH12,22199608-200608

43211GBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER)

main90106-12005iLXH12,RCH12199508-199703

main90106-12012iLXH18,RCH18199608-200311

main90106-12015iRCH1#,2#200311-200608

43212KNUCKLE, STEERING, LH

main43202-26020iLXH18,28,RCH18,19,28,29199608-200107

W(ABS)

sub43202-26021

sub90304-76005

main43202-26021iRCH19,29200107-200608

W(ABS)

main43202-26030iLXH18,28,RCH19,29199608-200107

sub43202-26031

sub90304-76005

main43202-26031iKLH18,28200107-200608

main43212-26050iLXH12,RCH12..EUR199508-199608

W(ABS)

main43212-26060iLXH12,RCH12199508-199608

sub43212-26090

main43212-26080iLXH12,22,RCH12,13,23..03S,05S,06S,09S199608-200608

W(ABS)

main43212-26090iRCH12,22199608-200608

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29295iRCH12,22199508-200405

sub43330-29515

main43330-29305iKLH18,28,RCH19,29199608-200405

main43330-29345iRCH19,29200405-200608

main43330-29515iKLH12,22200405-200608

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29295iRCH13..MTM;KLH12,22,RCH23199508-200405

sub43330-29515

main43330-29305iLXH18,28199608-200405

main43330-29345iRCH19,29200405-200608

main43330-29515iRCH13,23200405-200608

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-26010iLXH12..RHD..DX;LXH12..RHD..5DV;LXH12,RCH12..05S;LXH22,RCH13,22,23..(DX,STD)..EUR199508-200608

main43346-26010iLXH12..4DV..STD;LXH12..LHD..5DV;LXH12..LHD..(03S,09S)..DX;RCH12..(03S,06S,09S)..EUR199508-200108

COLD SPEC

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-26010iLXH12..RHD..DX;LXH12..RHD..5DV;LXH12,RCH12..05S;LXH22,RCH13,22,23..(DX,STD)..EUR199508-200608

main43346-26010iLXH22;LXH12..GL;RCH13..ATM;LXH12..RHD..DX;LXH12..RHD..5DV199508-200108

COLD SPEC

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-26010iLXH12..4DV..STD;LXH12..LHD..5DV;LXH12..LHD..(03S,09S)..DX;RCH12..(03S,06S,09S)..EUR199508-200108

COLD SPEC

main43355-26010iLXH12..RHD..DX;LXH12..RHD..5DV;LXH12,RCH12..05S;LXH22,RCH13,22,23..(DX,STD)..EUR199508-200608

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-26010iLXH22;LXH12..GL;RCH13..ATM;LXH12..RHD..DX;LXH12..RHD..5DV199508-200108

COLD SPEC

main43355-26010iLXH12..RHD..DX;LXH12..RHD..5DV;LXH12,RCH12..05S;LXH22,RCH13,22,23..(DX,STD)..EUR199508-200608

4505

45619ACOVER, STEERING KNUCKLE STOPPER, RH

main45619-26020iLXH1#,2#;RCH13..ATM199508-200608

45619BCOVER, STEERING KNUCKLE STOPPER, LH

main45619-26020iRCH13,19,23,29..MTM199508-200608

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-29025iRCH29199703-200608

main48066-29035iLXH18,RCH18,28199608-199708

main48066-29075iRCH13,23..MTM..STD199508-200608

main48066-29085iLXH12..RHD..DX;LXH12,22,RCH12,13,22,23..09S199508-201010

main48066-29105iLXH18,RCH18,19,28,29199708-200608

main48066-29125iKLH28199703-200608

W(ABS)

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-29025iRCH29199703-200608

main48067-29035iLXH18,RCH18,28199608-199708

main48067-29075iKLH12,22..STD199508-200608

main48067-29085iKLH12,22..DX,GL199508-201010

main48067-29105iRCH19199708-200608

main48067-29125iLXH28199703-200608

W(ABS)

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26070iLXH12,RCH12199508-199608

sub48068-26072

main48068-26071iRCH13..RHD199608-200407

sub48068-26072

main48068-26072iKLH12,22..STD200407-200608

main48068-26110iLXH18,28199608-200608

main48068-26150iRCH13..ATM;LXH12,22..DX,GL199907-200407

sub48068-26151

main48068-26151iKLH12,22..DX,GL200407-201010

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26070iLXH12,RCH12199508-199608

sub48069-26072

main48069-26071iRCH13..RHD199608-200407

sub48069-26072

main48069-26072iKLH12,22..STD200407-200608

main48069-26110iLXH18,28199608-200608

main48069-26150iRCH13,23..MTM;KLH12,22..DX,GL199907-200407

sub48069-26151

main48069-26151iKLH12,22..DX,GL200407-201010

48167ARM, TORQUE

main48106-25020iKLH18,28200103-200608

main48106-26020iLXH18,28,RCH19,29199608-200103

sub48106-25020

main48106-26040iRCH13,23..MTM199508-200608

48190CAM ASSY, CAMBER ADJUST

main48190-26020iRCH19,29199508-200608

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iLXH18,28,RCH18,19,28,29199508-200608

48331ABUMPER, FRONT SPRING, NO.1

main48331-26091iLXH12,22;RCH13..ATM199508-200608

main48331-26100iRCH12..ARL199508-200311

main48331-26121iLXH18,28,RCH19,29199608-199910

sub48331-26122

main48331-26122iRCH19,29199910-200608

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iKLH1#,2#199508-200608

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02142iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-200608

REAR

main90948-02143iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-200608

FRONT

48632BUSH, UPPER ARM

main48632-26010iLXH12,22..STD;RCH13..ATM..STD199508-200409

FRONT

main48632-26090iRCH13,23..STD199907-200608

FRONT

main48635-26010iLXH12..STD;LXH12..LHD..(03S,05S)..DX;LXH22,RCH12,13,22,23..03S,05S,06S199508-200409

REAR

main48635-26040iKLH12,22..DX,GL199508-201010

REAR

main48635-26080iRCH13,23..STD200409-200608

REAR

48654BUSH, LOWER ARM

main48061-26040iKLH18,28199608-200608

main48061-26050iKLH12,22199508-200608

9010114041

main90101-14041

9010212005

main90102-12005

9010512284

main90105-12284

9010512285

main90105-12285

9017016023

main90170-16023

9017112011

main90171-12011

9017116005

main90171-16005

9017908038

main90179-08038

9017918004

main90179-18004

9025203011

main90252-03011

9025204003

main90252-04003

9413061200

main94130-61200

9415010801

main94150-10801

9418040800

main94180-40800

9453101200

main94531-01200

9462211400

main94622-11400

9462211600

main94622-11600

43 parts on this diagram · 2 diagrams in section
