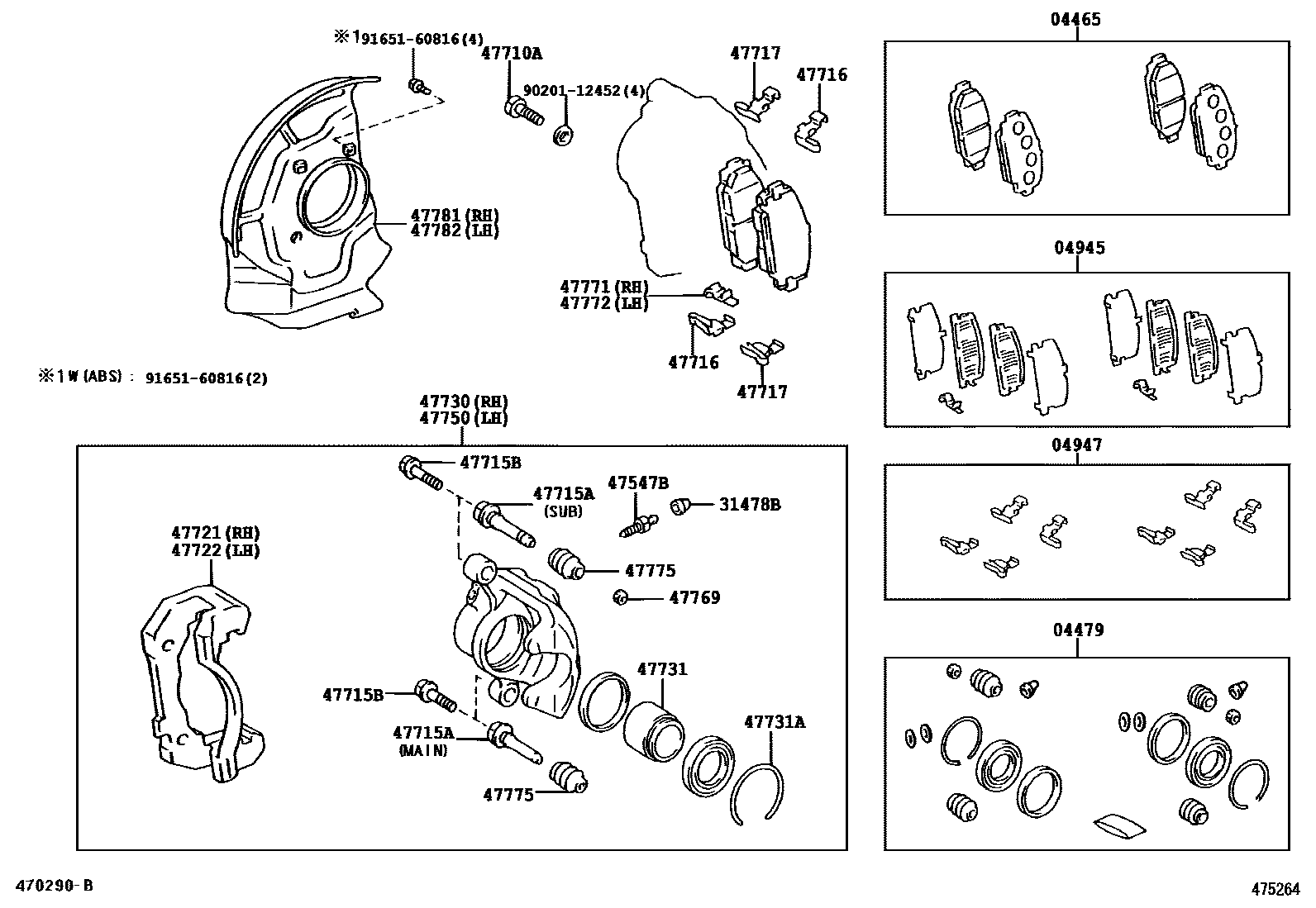

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-26300iRCH13..MTM;KLH1#,2#,RCH12,19,2#199508-200203

MARK SUMITOMO PS534

sub04465-26301

main04465-26370iRCH13,19,23,29200203-200608

MARK SUMITOMO PS534

main04465-26390iLXH12,22..LHD..(DX,GL)199907-200608

MARK NBK PN532H,W(ABS)

main04465-26390iKLH12,22..LHD..(DX,GL)200608-201010

MARK NBK PN532H,GERMANY SPEC & W(ABS)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-26030iKLH1#,2#200608

main04479-26060iRCH13..LHD;LXH1#,2#,RCH12,19,2#199508-199910

sub04479-26061

main04479-26061iRCH13,19,23,29..MTM199910-200608

sub04478-26030

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-26131iLXH1#,RCH1#199508-199703

sub04945-26151

main04945-26150iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199703-200011

sub04945-26151

main04945-26151iKLH1#,2#200011-200608

04947FITTING KIT, DISC BRAKE, FRONT

main04947-26040iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132iKLH12,22199508-201111

*12-1.25P-31X20

main90101-12149iKLH18,28199608-201111

*12-1.25P-41X20

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iRCH12,22199907-200608

SUB

main47715-50010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

SUB PIN SIDE

main47715-50030iKLH1#,2#199508-199910

MAIN PIN SIDE

main47715-50030iLXH1#,2#;RCH13..ATM199907-200608

MAIN

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iLXH1#,2#;RCH13..ATM199508-200608

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26050iLXH12,2#,RCH12,2#199508-200608

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26020iKLH1#,2#199508-200608

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26100iLXH12,RCH12199508-199510

sub47721-26101

main47721-26101iLXH1#,RCH1#199510-199703

sub47721-26H00

sub47721-26H10

sub47721-26H20

sub47721-26H30

sub47721-26H40

main47721-26102iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199703-200309

sub47721-26103

main47721-26103iRCH12,22200309-200608

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-26030iLXH12,RCH12199508-199510

sub47722-26031

main47722-26031iLXH1#,RCH1#199510-199703

sub47722-26H00

sub47722-26H10

sub47722-26H20

sub47722-26H30

sub47722-26H40

main47722-26032iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199703-200309

sub47722-26033

main47722-26033iRCH12,22200309-200608

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26120iLXH12,RCH12199508-199510

sub47730-26121

main47730-26121iLXH12,RCH12199510-199703

sub47730-26H00

sub47730-26H10

sub47730-26H20

main47730-26122iLXH12,22;RCH13..ATM199703-200608

main47730-26131iLXH18,RCH18199608-199703

sub47730-26H30

sub47730-26H40

main47730-26132iRCH19,29199703-200608

47731PISTON, FRONT DISC BRAKE

main47731-25010iKLH1#,2#199508-200608

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26120iLXH12,RCH12199508-199510

sub47750-26121

main47750-26121iLXH12,RCH12199510-199703

sub47750-26H00

sub47750-26H10

sub47750-26H20

main47750-26122iRCH12,22199703-200608

main47750-26131iLXH18,RCH18199608-199703

sub47750-26H30

sub47750-26H40

main47750-26132iRCH19,29199703-200608

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iKLH1#,2#199508-200608

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26030iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

47772PLATE, PAD WEAR INDICATOR, NO.2

main47772-26030iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iRCH13,19,23,29..MTM199910-200608

sub47775-50010

main47775-50010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-26010iKLH12,22199508-201111

main47703-26020iLXH12,RCH12..EUR199508-199608

W(ABS)

sub47703-26021

main47703-26040iKLH12,22199608-201111

W(ABS)

main47781-26110iLXH18,28,RCH19,29199608-200003

sub47781-26111

sub91611-60812

main47781-26111iRCH19,29200003-201111

main47781-26120iLXH18,28,RCH18,19,28,29199608-200003

W(ABS)

sub47781-26121

sub91611-60812

main47781-26121iRCH19,29200003-201111

W(ABS)

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-26010iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-201111

main47704-26020iLXH12,RCH12..EUR199508-199608

W(ABS)

sub47704-26021

main47704-26040iRCH13,23..MTM199608-201111

W(ABS)

main47782-26110iLXH18,28,RCH19,29199608-200003

sub47782-26111

sub91611-60812

main47782-26111iKLH18,28200003-201111

main47782-26120iLXH18,28,RCH18,19,28,29199608-200003

W(ABS)

sub47782-26121

sub91611-60812

main47782-26121iLXH18,28200003-201111

W(ABS)

9020112452

main90201-12452

9165160816

main91651-60816
