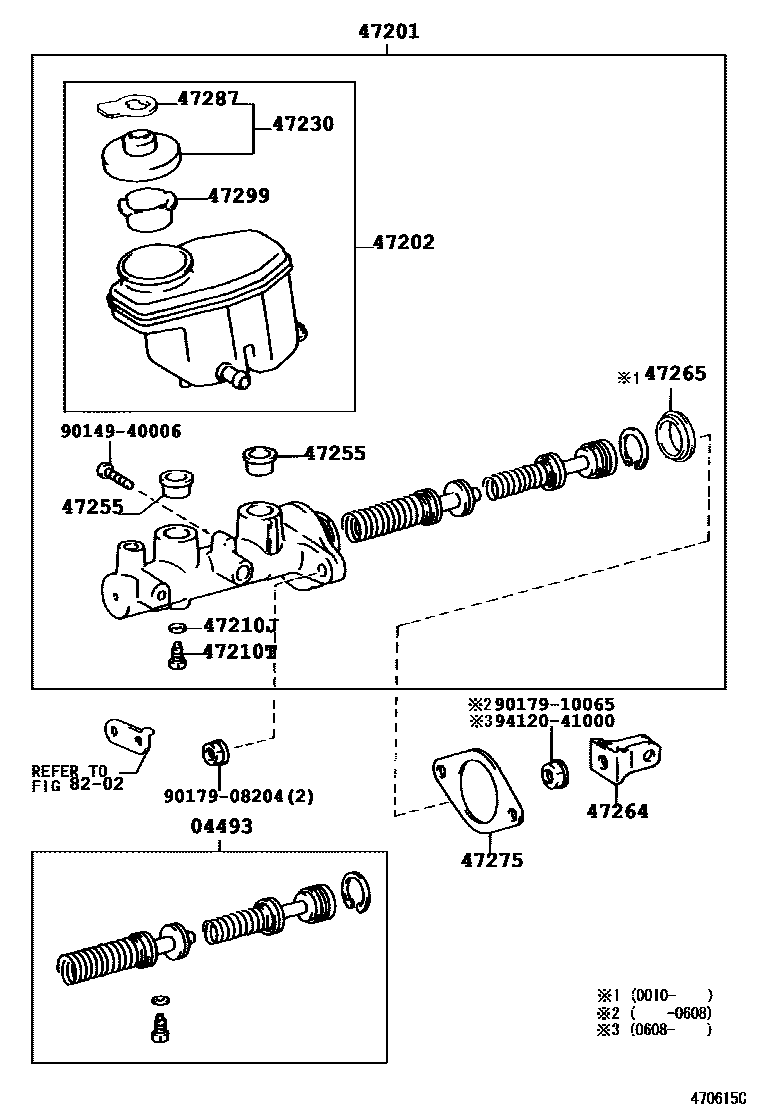

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-0B040iRCH13..RHD200401-200608

main04493-3D010iLXH1#,2#,RCH1#,23,29..03S,05S,06S,09S199508-201111

W(ABS)

main04493-60280iRCH13,19,23,29..LHD..MTM199508-201111

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-26600iKLH12,22..ATM199508-200608

W(ABS)

main47201-26610iLXH12,22,RCH13..ATM199508-200608

main47201-26630iRCH13,19,23,29..LHD..MTM199508-201111

W(ABS)

main47201-26640iKLH1#,2#..LHD199508-201111

main47201-26660iRCH12,22199508-201111

W(ABS)

main47201-26670iRCH13..RHD199508-201111

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26240iRCH12,22199508-201111

main47220-26260iLXH12,22,RCH13..ATM199508-200608

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iKLH1#,2#200011-201111

W(ABS)

main90430-06104iRCH12,22199508-201111

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201111

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201111

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201111

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-26030iKLH1#,2#200108-201111

main47264-28010iLXH1#,2#;RCH13..ATM199511-200605

main47264-50010iLXH12,RCH12199508-199511

47265BOOT, MASTER CYLINDER

main47265-20050iLXH1#,2#;RCH13..ATM200010-201111

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200005

main47275-14010iLXH1#,2#,RCH1#,2#200005-200010

sub47275-26010

main47275-26010iLXH1#,2#;RCH13..ATM200010-201111

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199708-201111

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201111

8202

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

9412041000

main94120-41000

17 parts on this diagram · 1 diagram in section
