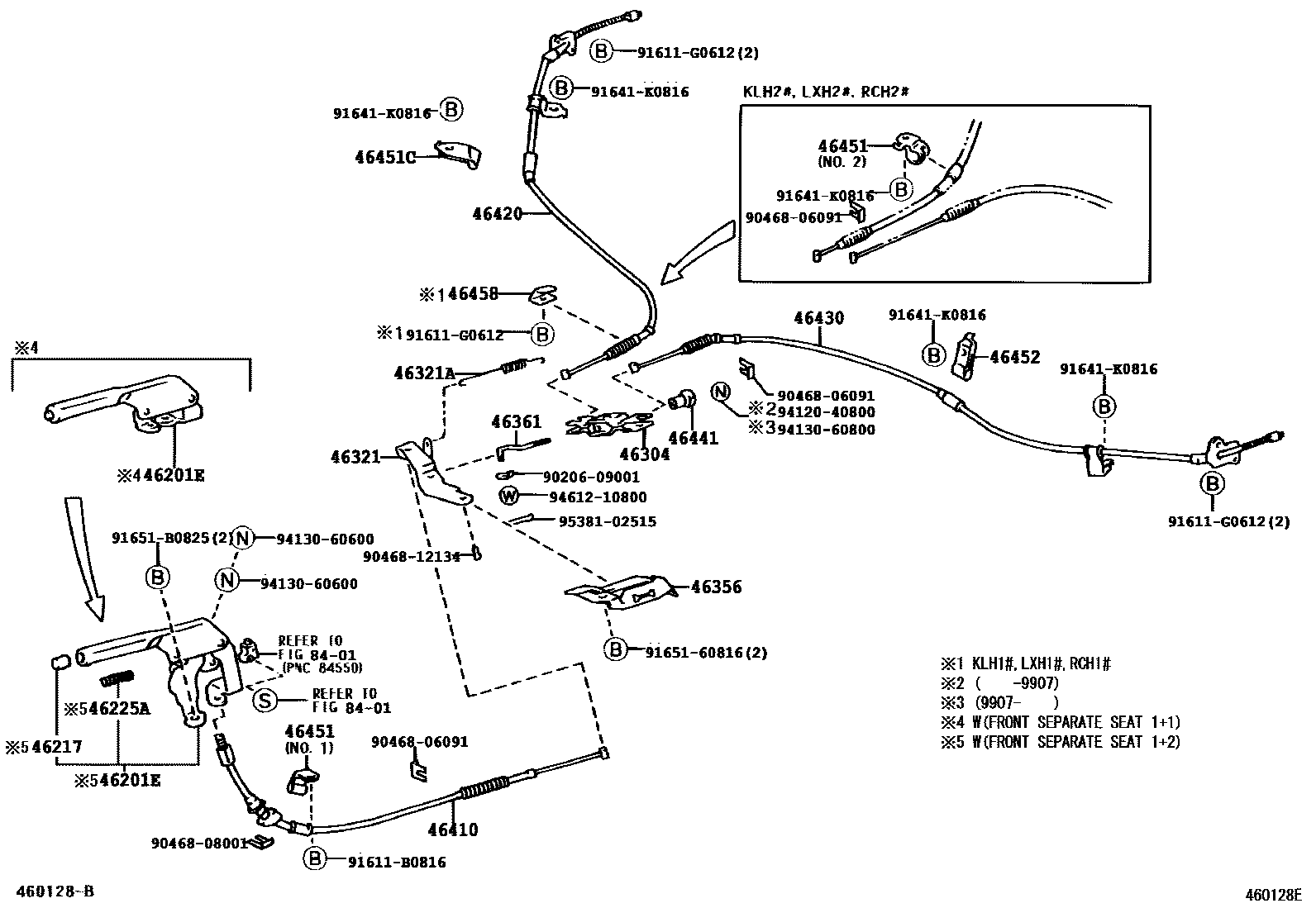

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-26030-B0iLXH1#,2#,RCH1#,2#199508-199708

W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#

main46201-26050-B0iLXH1#,2#,RCH1#,2#..(03S,06S,09S)..EUR199508-201010

BLUISH GRAY,TRIM1#

main46201-26050-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

main46201-26070-B0iLXH12,22,RCH12,13..RHD199708-199907

TURN FRONT SEAT,BLUISH GRAY,TRIM1#

sub46201-26060

main46201-26080-B0iLXH12,22,RCH12,13..RHD..EUR199708-199907

BLUISH GRAY,TRIM1#

main46201-26120-B0iRCH13..ATM;LXH1#,2#..LHD199708-200608

W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#

main46201-26120-B0iKLH1#,2#..LHD200608-201010

W(FRONT SEPARATE SEAT (1+2 TYPE)),BLUISH GRAY,TRIM1#

main46201-26120-B1iKLH1#,2#..LHD201010-201111

W(FRONT SEPARATE SEAT (1+2 TYPE)),DK.GRAY,TRIM1#

main46201-26130-B0iRCH13..RHD199907-200608

W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#

main46201-26130-B0iKLH12,22..RHD200608-201010

W(FRONT SEPARATE SEAT (1+2 TYPE)),BLUISH GRAY,TRIM1#

main46201-26130-B1iKLH12,22..RHD201010-201111

W(FRONT SEPARATE SEAT (1+2 TYPE)),DK.GRAY,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-B3iLXH1#,2#,RCH1#,2#..(03S,06S,09S)..EUR199708-199803

BLUISH GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-16030-B1iRCH13..ATM;LXH1#,2#..DX,STD199508-200608

BLUISH GRAY,TRIM1#

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iLXH1#,2#,RCH1#,2#..(03S,06S,09S)..EUR199508-200509

main90501-10132iRCH1#,2#..STD200509-200608

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201111

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26180iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201111

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-14067iKLH1#199508-201111

main90905-06031iRCH23,29199703-201111

46356BRACKET, EQUALIZER SUPPORT

main46356-28031iKLH1#,2#199508-201111

46361ROD, PARKING BRAKE PULL

main46361-26070iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201111

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26400iRCH13..RHD199708-199910

main46410-26440iLXH12,RCH12..RHD199508-199703

sub46410-26441

main46410-26441iKLH12,22..RHD199703-201111

main46410-26450iLXH1#,RCH1#..LHD199508-199611

main46410-26451iRCH13..ATM;LXH1#,2#..LHD199611-201111

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26410iLXH12,RCH12,13199508-199910

main46420-26420iKLH1#199608-201111

main46420-26510iRCH22199703-201111

main46420-26520iLXH22,RCH22,23199703-199907

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26260iLXH12,RCH12,13199508-199910

main46430-26270iLXH1#;RCH13..ATM199608-200405

main46430-26271iKLH1#200405-201111

main46430-26360iLXH2#199703-200405

main46430-26361iKLH2#200405-201111

main46430-26370iLXH22,RCH22,23199703-199907

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iLXH1#,2#;RCH13..ATM199508-201111

46451BRACKET, CABLE SUPPORT

main46451-26210iLXH12,RCH12..RHD199508-199611

main46451-26240iLXH12,22..RHD199703-201111

NO.1

main46451-26240iLXH12,RCH12,13..RHD..03S199611-199910

main46452-26130iLXH1#,RCH1#..LHD199508-199611

main46452-26131iLXH2#,RCH2#..LHD199703-201111

NO.2

main46452-26131iLXH1#,RCH1#..LHD199611-199907

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-26220iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-201111

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-26160iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200405

main46452-26220iRCH1#,2#200405-201111

46458RETAINER, CABLE

main46458-28010iLXH1#,RCH1#..03S,05S,06S,09S199508-201111

8401

9020609001

main90206-09001

9046806091

main90468-06091

9046808001

main90468-08001

9046812134

main90468-12134

91611B0816

main91611-B0816

91611G0612

main91611-G0612

91641K0816

main91641-K0816

9165160816

main91651-60816

91651B0825

main91651-B0825

9412040800

main94120-40800

9413060600

main94130-60600

9413060800

main94130-60800

9461210800

main94612-10800

9538102515

main95381-02515

31 parts on this diagram · 4 diagrams in section
