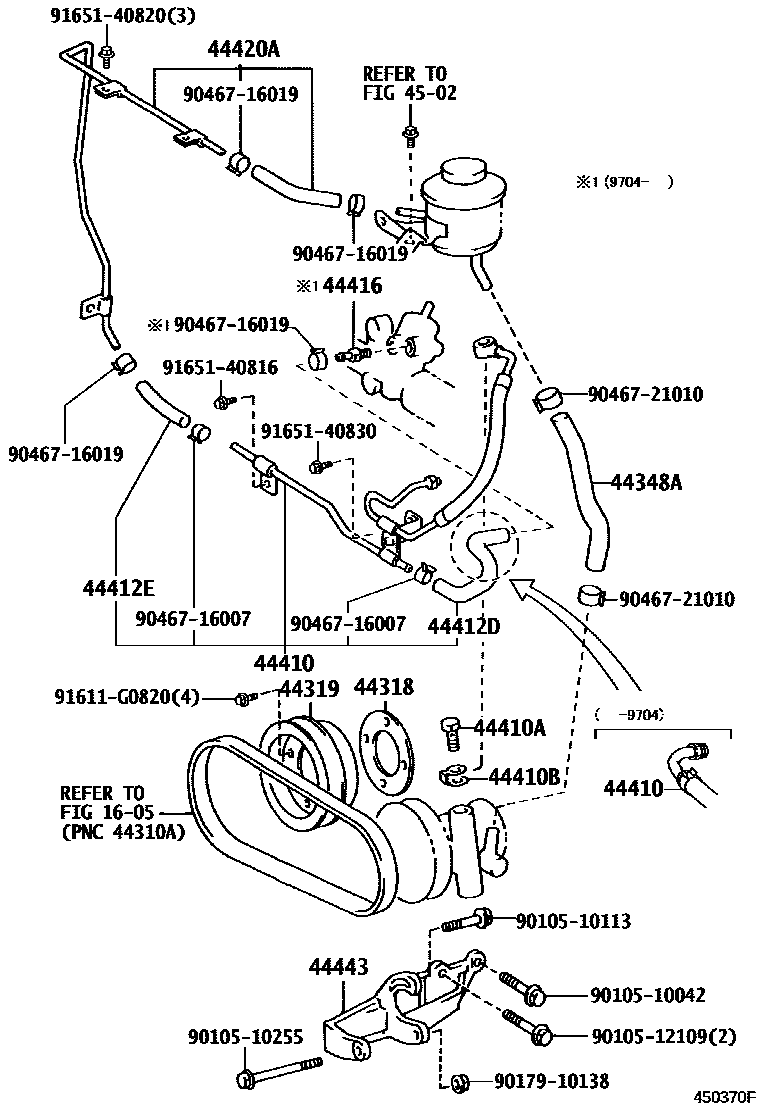

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLXH1#,2#199508-200108

main44318-26020iRCH13..ATM199508-200605

44319PULLEY, VANE PUMP DRIVE

main44319-26020iRCH12,18,22,28199508-200311

main44319-26040iLXH1#,2#199508-200108

main44319-34010iRCH13..ATM199804-200605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-26120iLXH1#199508-199610

main44348-26121iLXH1#,2#199610-200108

main44348-26150iRCH1#199508-199610

main44348-26151iRCH12,18,22,28199610-200311

44410TUBE ASSY, PRESSURE FEED

main44410-26430iLXH12,22..LHD199508-199704

main44410-26431iLXH12,22..LHD199704-200108

sub44410-26432

main44410-26440iLXH12,22..RHD199508-199704

main44410-26441iLXH12,22..RHD199704-200108

main44410-26450iRCH12,22..LHD199508-199704

main44410-26451iRCH12,22..LHD199704-199804

main44410-26460iRCH12..RHD199508-199704

main44410-26461iRCH12..RHD199704-200311

main44410-26490iLXH18,28199608-200108

sub44410-26491

main44410-26500iRCH18,28199608-199804

main44410-26750iRCH13..RHD199804-200108

main44410-26760iRCH13,23..LHD199804-199907

sub44410-26761

main44410-26761iRCH13,23..LHD199907-200108

main44410-26770iRCH19,29199804-200108

main44410-26800iRCH13..RHD200108-200308

sub44410-26801

main44410-26801iRCH13..RHD200308-200605

main44410-26810iKLH12,22..RHD200108-200405

main44410-26820iRCH13,23..LHD200108-200605

main44410-26830iKLH12,22..LHD200108-200405

main44410-26840iRCH19,29200108-200605

main44410-26850iKLH18,28200108-200405

main44410-26B60iKLH12,22..RHD200405-200608

main44410-26B70iKLH12,22..LHD200405-200608

main44410-26B80iKLH18,28200405-200608

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16014iLXH1#,2#;RCH13..ATM199508-200605

44410BGASKET(FOR PRESSURE FEED TUBE)

main44327-26020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200405

main44327-30040iRCH1#,2#200406-200605

44412HOSE, RETURN

main44412-26120iKLH12,22,LXH12,22,RCH12,22..RHD199704-201111

44412DHOSE, RETURN, NO.1

main44412-26230iKLH12,22,LXH12,22..LHD199907-201111

main44412-26240iLXH18,28199907-200108

main44412-26350iKLH18,28200608-201111

main44412-26370iKLH18,28200108-200608

main44412-26390iRCH13..RHD199910-200605

44412EHOSE, RETURN, NO.2

main44412-26250iRCH13..RHD200308-200605

main44412-26330iRCH13..RHD199910-200308

main44412-26340iLXH12,22..LHD199907-200108

main44412-26350iKLH18,28,LXH18,28199907-200608

main44412-26370iKLH18,28200608-201111

main44412-26420iKLH12,22..LHD200108-201111

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iLXH18,28,RCH18,28199608-200511

main44416-60370iRCH1#,2#200512-200608

44420ATUBE ASSY, RETURN

main44420-26030iLXH12,22,RCH12,22199508-200311

main44420-26050iLXH18,28199608-200108

main44420-26130iRCH13,23..LHD199804-200605

NO.1

main44420-26130iRCH13..RHD199804-200605

main44420-26180iRCH13,23..LHD199804-200605

NO.2

main44420-26190iRCH19,29199804-200605

NO.1

main44420-26200iRCH19,29199804-200605

NO.2

main44420-26210iKLH12,22200108-200510

sub44420-26211

main44420-26211iKLH12,22200510-200608

main44420-26220iKLH18,28200108-200505

sub44420-26221

main44420-26221iKLH18,28200505-200608

44443BRACKET, PUMP

main44443-26031iRCH12,18,22,28199508-200311

main44443-26070iLXH1#,2#199508-199704

sub44443-26071

main44443-26071iLXH1#,2#199704-200108

main44443-34010iRCH13,19,23,29..DX,STD199804-200605

4502

9010510042

main90105-10042

9010510113

main90105-10113

9010510255

main90105-10255

9010512109

main90105-12109

9017910138

main90179-10138

9046716007

main90467-16007

9046716019

main90467-16019

9046721010

main90467-21010

91611G0820

main91611-G0820

9165140816

main91651-40816

9165140820

main91651-40820

9165140830

main91651-40830

26 parts on this diagram · 12 diagrams in section
