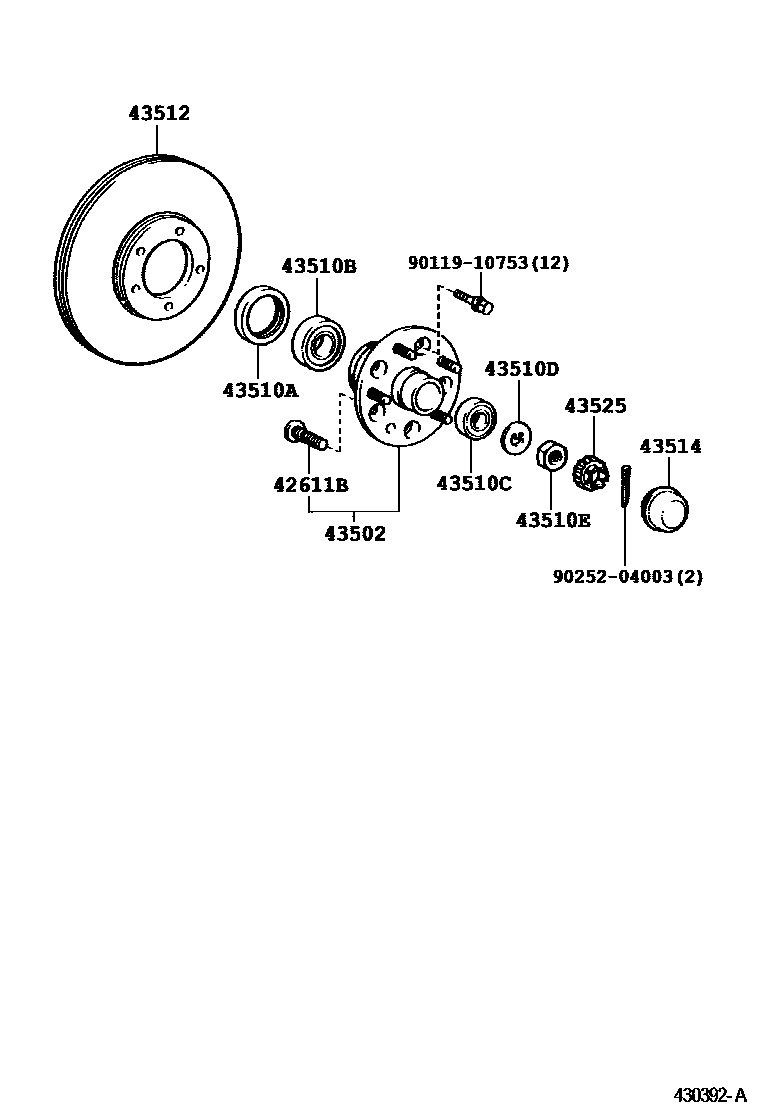

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-201111

main90942-02049iKLH18,28199608-201111

43502HUB SUB-ASSY, FRONT AXLE

main43502-26070iKLH12,22199508-201111

main43502-29095iKLH18,28200908-201111

main43503-26040iKLH12,22,LXH12,22,RCH12,13,22,23199508-201111

W(ABS)

main43503-29015iLXH18,RCH18199608-199612

W(ABS)

sub43503-29085

main43503-29025iKLH18,28,LXH18,28,RCH19,29199612-200907

W(ABS)

sub43503-29026

main43503-29026iKLH18,28200908-201111

W(ABS)

main43511-26070iKLH18,28200211-200608

sub43511-39015

main43511-39015iKLH18,28,RCH19,29199608-200908

sub43502-29095

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iRCH13,23..MTM199508-201111

main90311-66003iKLH18,28199608-201111

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064iLXH18,28,RCH18,19,28,29199608-200908

(L)

sub90368-49084

main90368-34001iKLH12,22199508-201111

main90368-49084iRCH19,29199608-200908

(J)

main90368-49084iKLH18,28200908-201111

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067iKLH18,28199608-200908

(L)

sub90368-45087

main90368-21001iKLH12,22199508-201111

main90368-45087iKLH18,28200908-201111

main90368-45087iLXH18,28199608-200908

(J)

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iKLH12,22200611-201111

main90214-20007iKLH12,22199508-200610

main90214-42030iRCH19,29199608-201111

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iRCH13,23..MTM199508-201111

43512DISC, FRONT

main43512-26130iLXH18,28,RCH18,19,28,29199608-201111

main43512-26140iRCH12,22199508-201111

main43512-26160iRCH13,23..MTM..(DX,STD)199704-200903

COLD SPEC & W(ABS)

sub43512-26140

main43512-26160iLXH12..RHD..5DV;LXH12,RCH12..05S199704-200605

W(ABS)

sub43512-26140

43514CAP, FRONT HUB GREASE

main43514-35010iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-201111

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-201111

9011910753

main90119-10753

9025204003

main90252-04003

12 parts on this diagram · 2 diagrams in section
